Techtop TML 80A-2 0.75kW Single Phase Electric Motor – 2800RPM 240V

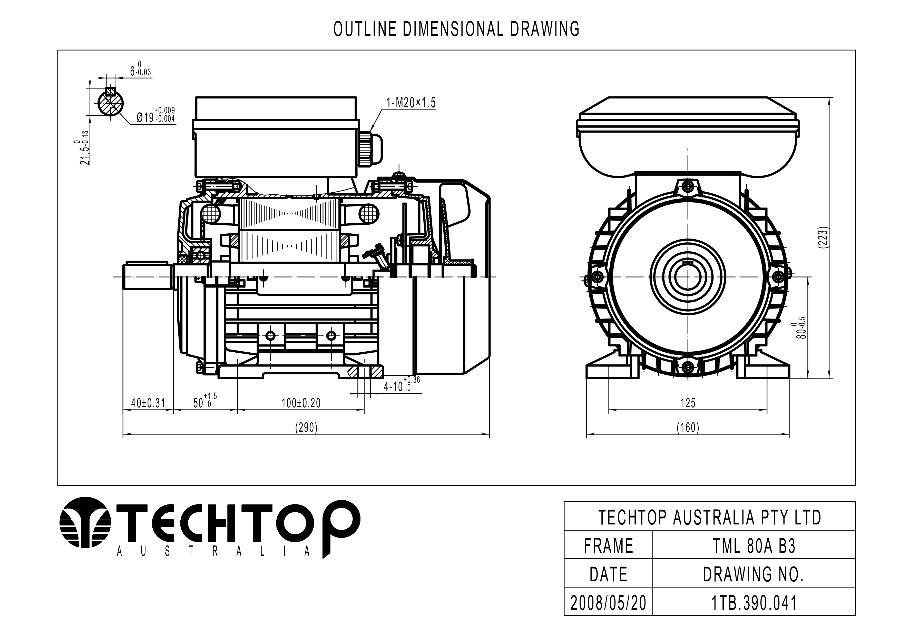

  • Techtop TML 80A B3 foot mount dimensional drawing for single phase electric motor

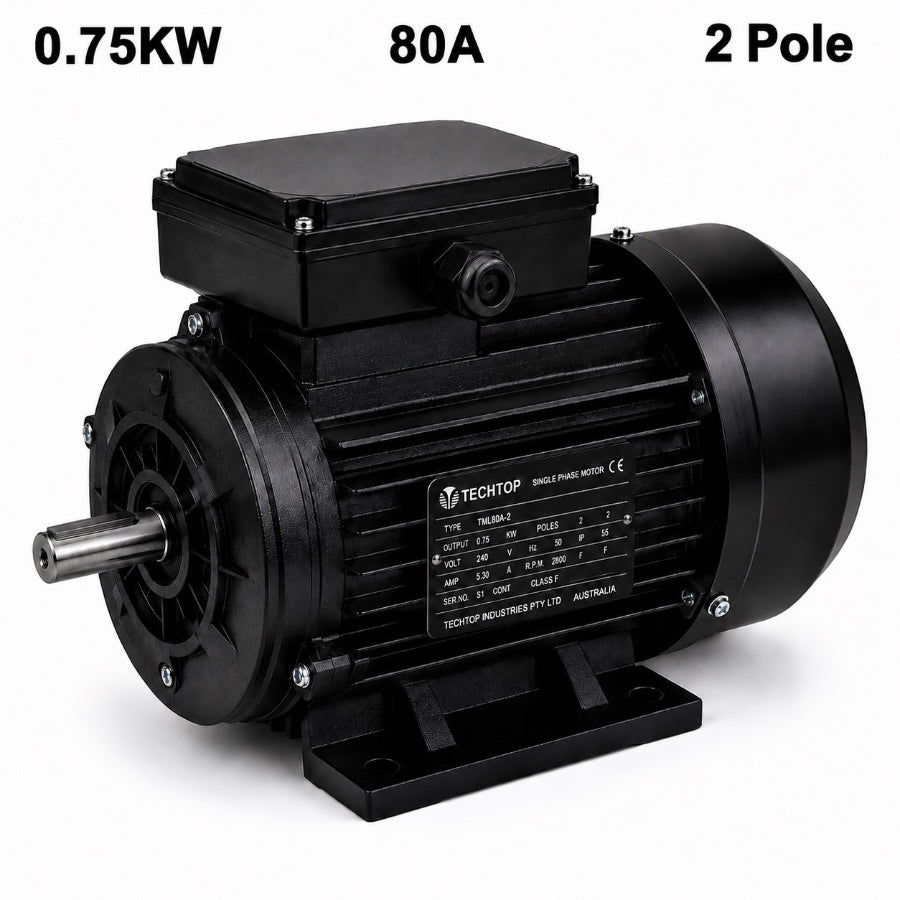

  • Techtop TML 80A 0.75kW 2 Pole 240V single phase electric motor
  • Techtop TML series single phase motor performance data, capacitor sizes, dimensions and frame specifications
1 3

Techtop TML 80A-2 0.75kW Single Phase Electric Motor – 2800RPM 240V

Techtop TML 80A-2 0.75kW Single Phase Electric Motor – 2800RPM 240V

● Only 2 Left – Order Soon

Mounting Type
$272.00 AUD
$299.00 AUD $272.00 AUD
Sale Sold out
Excluding GST
Shipping calculated at checkout.
Australian owned

Australian owned

Fast Dispatch

Fast Dispatch

Worldwide Shipping

Worldwide Shipping

Expert Support

Expert Support

Introducing the Techtop TML 80A-2 0.75kW Electric Motor, meticulously crafted for unrivaled performance in demanding environments. Operating at 2800 RPM, its lightweight aluminum body features a capacitor start/capacitor run system, ensuring excellent starting torque and lasting functionality.

This motor is IP55 rated, providing reliable protection against dust and moisture, making it perfect for pumps, compressors, and workshop machinery. Designed for continuous operation, it boasts manual reset overload protection and Class F insulation, guaranteeing safety and reliability.

  • High-speed operation: 2800 RPM
  • Durable construction: Aerospace-grade aluminum
  • IP55 rated: Dust and moisture resistant
  • Application versatility: Suitable for pumps, compressors, and fans

Explore the reliability and efficiency of the Techtop TML 80A-2 electric motor today!

Faqs

What applications is the TML-80A-2 motor suitable for?

The TML-80A-2 is suitable for pumps, compressors, fans, belt-driven equipment, workshop machinery, and general industrial applications.

Is this a single phase motor?

Yes, this is a 240V single phase electric motor with capacitor start and capacitor run operation.

What speed does this motor operate at?

This motor operates at approximately 2800RPM and features a 2 pole configuration.

What type of protection does this motor have?

The motor features IP55 protection and manual reset overload protection for reliable industrial operation.

What type of bearings are used?

This motor uses high-quality NSK ball bearings with 6204ZZ / 6204ZZ C3 bearing configuration.

Is this motor suitable for continuous operation?

Yes, the TML series motors are designed for S1 continuous-duty industrial applications.

What capacitors does this motor use?

The motor uses a 100μF start capacitor and a 20µF run capacitor for reliable starting and smooth operation.

Can this motor be used as a replacement motor?

Yes, the TML-80A-2 is commonly used as a replacement electric motor for compatible industrial and workshop equipment.

Specification

  • Model: TML-80A-2

  • Power Output: 0.75kW

  • Pole: 2 Pole

  • Voltage: 240V

  • Frequency: 50Hz

  • Speed: 2800 RPM

  • Full Load Current: 4.4 Amps

  • Frame Size: 80A

  • Construction: Aluminium

  • Motor Type: TEFC - Capacitor Start / Capacitor Run

  • Protection Rating: IP55

  • Insulation Class: Class F with Class B Rise

  • Duty Rating: S1 Continuous Duty

  • Thermal Protection: Manual Reset Overload

  • Service Factor: 1.1

  • Maximum Slip: 6.6%

  • Full Load Torque: 2.6Nm

  • Starting Current Ratio: 6.6

  • Starting Torque Ratio: 2.5

  • Break Down Torque Ratio: 1.7

  • Efficiency @ 100% Load: 74%

  • Power Factor @ 100% Load: 0.97

  • Noise Level: 56 dB(A)

  • Vibration Limit: 1.8 mm/sec

  • Bearing Brand: NSK

  • Bearing Type: Ball / Ball

  • Bearing Size: 6204ZZ / 6204ZZ C3

  • Direction of Rotation: Clockwise viewed from drive end

  • Colour: RAL 9005 Jet Black

  • Weight: 9.5kg

  • Start Capacitor: 100μF / 250VAC

  • Run Capacitor: 20µF / 450VAC

  • IEC Standard: IEC 60034 & 72

  • Approvals: C-Tick, CE

Features and benefits

  • Durable aluminium motor housing
  • Reliable capacitor start and capacitor run operation
  • High-speed 2 pole 2800RPM performance
  • Designed for continuous-duty industrial applications
  • IP55 rated for protection against dust and moisture
  • Manual reset overload protection for added safety
  • Class F insulation with Class B temperature rise
  • TEFC enclosed motor design for industrial environments
  • Smooth and efficient motor operation
  • Suitable for pumps, compressors, fans, and workshop machinery
  • High-quality NSK bearings for long service life
  • Excellent replacement motor solution for industrial equipment

SHIPPING & DELIVERY

Domestic Shipping (Australia)

Standard Shipping: 2–4 business days

  • Free standard shipping on eligible orders over $300 Australia-wide
  • Selected products qualify for free shipping regardless of order value
  • Free standard shipping available within Melbourne metro (within 40km of the CBD)

Express Shipping: 1–3 business days

  • Express shipping rates calculated at checkout

International Shipping

Standard International: 7–15 business days
Express International: 3–7 business days

  • Customs duties, taxes, or import fees may apply depending on destination country

Heavy & Oversized Items

  • Free shipping does not apply to heavy or oversized products
  • Shipping is charged separately and calculated at checkout
  • Express shipping is not available for heavy items
View full details
The Techtop TML 80A-2 0.75kW Single Phase Electric Motor is designed for reliable performance in industrial, agricultural, workshop, and commercial applications. Featuring a durable aluminium frame and capacitor start/capacitor run (CSCR) design, this 2-pole motor delivers high-speed 2800RPM operation with strong starting torque, smooth running characteristics, and dependable long-term performance. Designed to operate on a standard 240V single-phase power supply, the TML 80A-2 is suitable for pumps, compressors, fans, air handling systems, belt-driven equipment, workshop machinery, and general industrial applications. Its compact aluminium construction provides excellent corrosion resistance while reducing overall weight, making installation and maintenance easier. If you're comparing motor sizes or power outputs, browse our range of single phase electric motors for additional industrial motor options. The Totally Enclosed Fan Cooled (TEFC) design and IP55 protection rating help protect internal components from dust and moisture, making the motor suitable for demanding industrial environments. Combined with Class F insulation, manual reset overload protection, and premium NSK bearings, the TML 80A-2 is engineered for continuous-duty operation and long service life. This motor utilises a capacitor start and capacitor run system incorporating a 100μF start capacitor and 20µF run capacitor to provide reliable starting performance and efficient operation. For routine maintenance and replacement components, explore our range of motor start capacitors and motor run capacitors to keep your motor operating at peak performance. Whether you're replacing a failed motor or installing a new drive system, the TML 80A-2 provides an excellent balance of performance, efficiency, and durability. Contractors, workshops, manufacturers, and maintenance teams rely on this motor for applications where reliability and consistent operation are essential. For additional industrial drive solutions, browse our complete range of electric motors available for fast Australia-wide shipping from Paddle Wholesale Australia.
