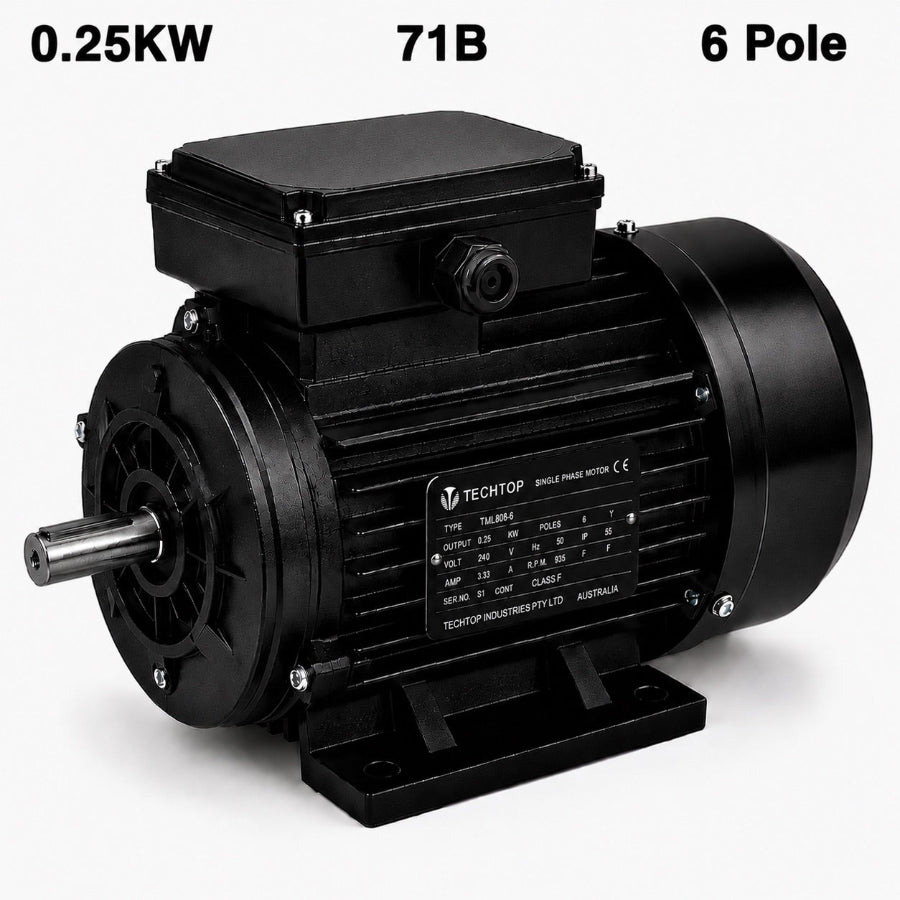

Techtop TML 71B-6 0.25kW Single Phase Electric Motor – 6 Pole 940RPM 240V
Techtop TML 71B-6 0.25kW Single Phase Electric Motor – 6 Pole 940RPM 240V
Australian owned
Fast Dispatch
Worldwide Shipping
Expert Support
The Techtop TML 71B-6 is a high-quality 0.25kW single phase electric motor designed for applications requiring lower operating speed and increased torque. Featuring capacitor start/capacitor run operation, TEFC construction, and a durable aluminium housing, this 6 pole motor delivers smooth 940RPM performance with reliable starting characteristics and efficient operation.
Suitable for conveyors, agricultural equipment, workshop machinery, pumps, feed systems, and industrial applications requiring controlled speed and dependable torque.
Download the Techtop TML 71B-6 0.25kW single-phase electric motor datasheet
Faqs
Faqs
What applications is the TML-71B-6 motor suitable for?
The TML-71B-6 is suitable for conveyors, augers, feed systems, agricultural equipment, workshop machinery, pumps, and industrial applications requiring lower operating speed and increased torque.
Is this a single phase motor?
Yes, this is a 240V single phase electric motor featuring capacitor start and capacitor run operation for reliable starting and smooth performance.
What speed does this motor operate at?
The TML-71B-6 operates at approximately 940RPM and features a 6 pole motor design.
Why choose a 6 pole motor?
6 pole motors provide lower operating speeds and higher torque compared to 2 pole and 4 pole motors, making them ideal for conveyors, agricultural equipment, gear-driven machinery, and applications requiring controlled speed.
What type of protection does this motor have?
The motor features IP55 protection against dust and water ingress, along with manual reset overload protection for improved reliability and safety.
What capacitors does this motor use?
The motor uses a 40μF start capacitor and a 16µF run capacitor to deliver reliable starting torque and efficient operation.
Can this motor run continuously?
Yes, the TML-71B-6 is rated for S1 continuous-duty operation, making it suitable for industrial and commercial applications that require long running times.
What type of bearings are used?
The motor is fitted with high-quality NSK ball bearings to provide smooth operation, reduced vibration, and long service life.
Can this motor rotate in both directions?
Yes, the TML-71B-6 supports bi-directional rotation, providing flexibility for a wide range of machinery installations.
Can this motor be used as a replacement motor?
Yes, the TML-71B-6 is commonly used as a replacement motor for compatible pumps, conveyors, agricultural machinery, workshop equipment, and industrial applications.
Specification
Specification
Model: TML-71B-6
Power Output: 0.25kW
Pole: 6 Pole
Voltage: 240V
Frequency: 50Hz
Speed: 940 RPM
Full Load Current: 1.85 Amps

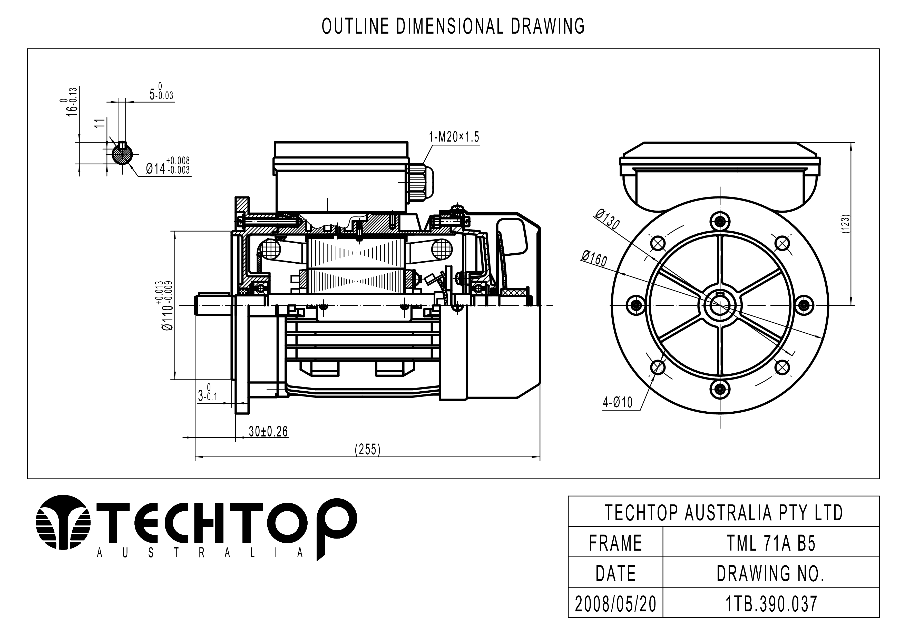

Frame Size: 71B
Shaft Diameter: 14mm
Construction: Aluminium
Motor Type: TEFC - Capacitor Start / Capacitor Run
Protection Rating: IP55
Insulation Class: Class F with Class B Rise
Duty Rating: S1 Continuous Duty
Thermal Protection: Manual Reset Overload
Service Factor: 1.1
Full Load Torque: 2.54Nm
Locked Rotor Torque: 230% FLT
Break Down Torque: 180% FLT
Efficiency @ Full Load: 58%
Power Factor @ Full Load: 0.97
Bearing Brand: NSK
Bearing Type: Ball / Ball
Direction of Rotation: Bi-Directional
Weight: 6.8kg
-
Start Capacitor: 40μF / 250VAC
-
Run Capacitor: 16µF / 450VAC
IEC Standard: IEC 60034 & IEC 72
Approvals: CE & C-Tick
Features and benefits
Features and benefits
- Low-speed 940RPM performance for controlled-drive applications
- 6 pole motor design delivers increased torque and smoother operation
- Capacitor start and capacitor run technology for reliable starting
- Ideal for conveyors, augers, feed systems, and agricultural equipment
- Suitable for pumps, workshop machinery, and belt-driven applications
- Durable aluminium housing provides excellent corrosion resistance
- IP55 rated protection against dust and water ingress
- TEFC enclosed motor design for industrial environments
- Manual reset overload protection enhances motor safety
- Class F insulation with Class B temperature rise for long service life
- High-quality NSK bearings ensure smooth and reliable operation
- Bi-directional rotation provides installation flexibility
- Continuous-duty S1 rating for demanding industrial applications
- Efficient and dependable replacement motor solution
- Operates from a standard 240V single-phase power supply
