• Techtop TML 71 B14 face mount dimensional drawing for single phase electric motor
  • Techtop TML series single phase motor performance data, capacitor sizes, dimensions and frame specifications
1 2

● Only 2 Left – Order Soon

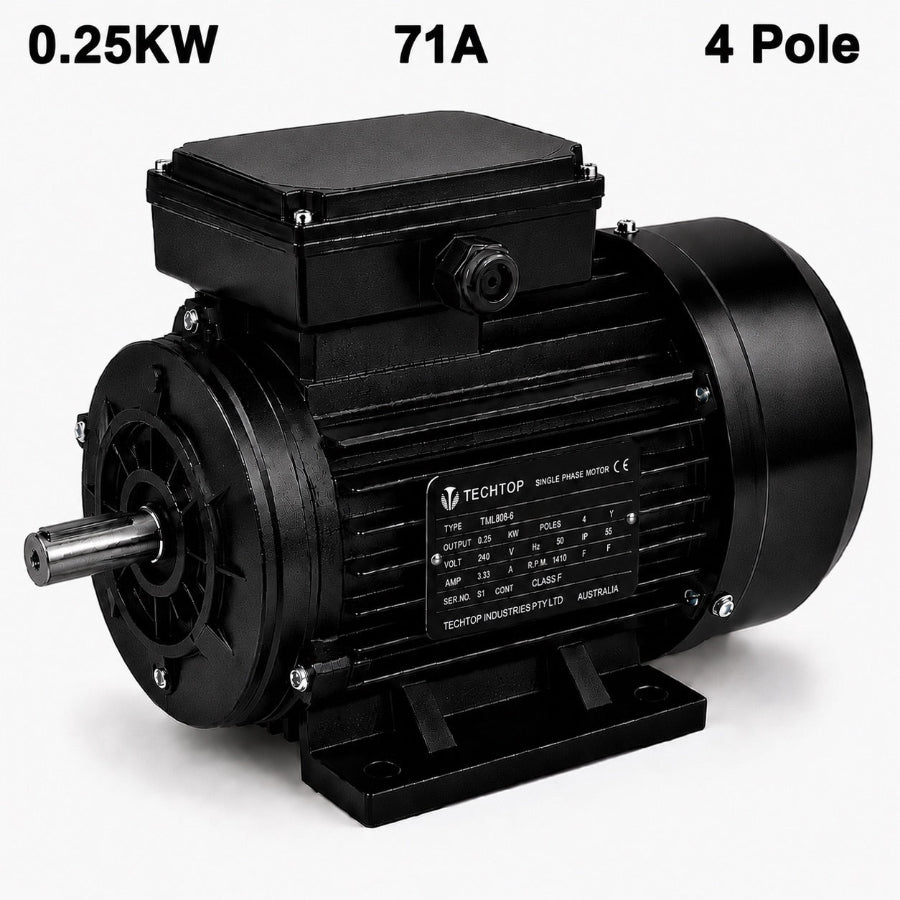

Techtop TML 71A-4 0.25kW Single Phase Electric Motor – 4 Pole 1380RPM 240V

Techtop TML 71A-4 0.25kW Single Phase Electric Motor – 4 Pole 1380RPM 240V

$219.00 AUD
$239.00 AUD $219.00 AUD
Sale Sold out
Excluding GST
Shipping calculated at checkout.
Australian owned

Australian owned

Fast Dispatch

Fast Dispatch

Worldwide Shipping

Worldwide Shipping

Expert Support

Expert Support

The Techtop TML 71A-4 is a reliable 0.25kW single phase electric motor designed for industrial, agricultural, and workshop applications. Featuring capacitor start/capacitor run operation and a durable aluminium housing, this 4 pole motor delivers smooth 1380RPM performance with dependable starting torque and efficient operation on a standard 240V power supply.

Suitable for pumps, compressors, fans, workshop machinery, belt-driven equipment, and general replacement motor applications.

Download the Techtop TML 71A-4 0.25kW single-phase electric motor datasheet.

Faqs

What applications is the TML-71A-4 motor suitable for?

The TML-71A-4 is suitable for pumps, compressors, fans, conveyors, workshop machinery, agricultural equipment, and general industrial applications.

Is this a single phase motor?

Yes, this is a 240V single phase electric motor with capacitor start and capacitor run operation.

What speed does this motor operate at?

This motor operates at approximately 1380RPM and features a 4 pole configuration.

Why choose a 4 pole motor?

4 pole motors provide lower operating speed and increased torque compared to 2 pole motors, making them ideal for pumps, compressors, conveyors, and industrial equipment.

What type of protection does this motor have?

The motor features IP55 protection and manual reset overload protection for reliable industrial operation.

What capacitors does this motor use?

The motor uses a 50μF start capacitor and a 14µF run capacitor for reliable starting and smooth operation.

Is this motor suitable for continuous operation?

Yes, the motor is designed for S1 continuous-duty industrial applications.

Can this motor be used as a replacement motor?

Yes, the TML-71A-4 is commonly used as a replacement motor for compatible industrial and workshop equipment.

Specification

  • Model: TML-71A-4

  • Power Output: 0.25kW

  • Pole: 4 Pole

  • Voltage: 240V

  • Frequency: 50Hz

  • Speed: 1380 RPM

  • Full Load Current: 1.9 Amps

  • Frame Size: 71A

  • Shaft Diameter: 14mm

  • Construction: Aluminium

  • Motor Type: TEFC - Capacitor Start / Capacitor Run

  • Protection Rating: IP55

  • Insulation Class: Class F with Class B Rise

  • Duty Rating: S1 Continuous Duty

  • Thermal Protection: Manual Reset Overload

  • Full Load Torque: 1.7Nm

  • Starting Current Ratio: 5.2

  • Starting Torque Ratio: 2.5

  • Break Down Torque Ratio: 1.6

  • Efficiency @ 100% Load: 61%

  • Power Factor @ 100% Load: 0.92

  • Noise Level: 60 dB(A)

  • Vibration Limit: 1.8 mm/sec

  • Bearing Brand: NSK

  • Bearing Type: Ball / Ball

  • Bearing Size: 6202ZZ / 6202ZZ C3

  • Weight: 5.9kg

  • Start Capacitor: 50μF / 250VAC

  • Run Capacitor: 14µF / 450VAC

  • IEC Standard: IEC 60034 & 72

Features and benefits

  • Reliable 4 pole 1380RPM motor for controlled-speed applications
  • Capacitor start and capacitor run design for dependable operation
  • Suitable for pumps, compressors, fans, and workshop machinery
  • Durable aluminium housing provides corrosion resistance
  • IP55 rated protection against dust and moisture
  • TEFC enclosed construction for industrial environments
  • Manual reset overload protection for added safety
  • Class F insulation with Class B temperature rise
  • High-quality NSK bearings for long service life
  • Smooth and efficient operation under load
  • Designed for continuous-duty industrial applications
  • Operates from a standard 240V single-phase power supply

SHIPPING & DELIVERY

Domestic Shipping (Australia)

Standard Shipping: 2–4 business days

  • Free standard shipping on eligible orders over $300 Australia-wide
  • Selected products qualify for free shipping regardless of order value
  • Free standard shipping available within Melbourne metro (within 40km of the CBD)

Express Shipping: 1–3 business days

  • Express shipping rates calculated at checkout

International Shipping

Standard International: 7–15 business days
Express International: 3–7 business days

  • Customs duties, taxes, or import fees may apply depending on destination country

Heavy & Oversized Items

  • Free shipping does not apply to heavy or oversized products
  • Shipping is charged separately and calculated at checkout
  • Express shipping is not available for heavy items
View full details
Variant Stock Quantity Price Variant total Variant total
B3 - Foot MountSKU: TA4A025·TML B3
B3 - Foot MountSKU: TA4A025·TML B3
$239.00
$219.00/ea
 Only 2 Left
$239.00
$219.00/ea
 $0.00
B5 - Flange MountSKU: TA4A025·TML B5
B5 - Flange MountSKU: TA4A025·TML B5
$239.00
$219.00/ea
 Only 2 Left
$239.00
$219.00/ea
 $0.00
B14 - Face MountSKU: TA4A025·TML B14
B14 - Face MountSKU: TA4A025·TML B14
$239.00
$219.00/ea
 Only 2 Left
$239.00
$219.00/ea
 $0.00
B34 - Foot & Face MountSKU: TA4A025·TML B34
B34 - Foot & Face MountSKU: TA4A025·TML B34
$239.00
$219.00/ea
 Only 2 Left
$239.00
$219.00/ea
 $0.00
B35 - Foot & Flange MountSKU: TA4A025-TML B35
B35 - Foot & Flange MountSKU: TA4A025-TML B35
$239.00
$219.00/ea
 Only 2 Left
$239.00
$219.00/ea
 $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart
The Techtop TML 71A-4 0.25kW Single Phase Electric Motor is a dependable and efficient motor designed for industrial, agricultural, and workshop applications requiring controlled speed and reliable torque. Featuring a durable aluminium frame and capacitor start/capacitor run (CSCR) design, this 4 pole motor delivers smooth 1380RPM performance with excellent reliability and efficient operation. Operating from a standard 240V single-phase power supply, the TML 71A-4 is suitable for pumps, compressors, fans, agricultural equipment, workshop machinery, conveyors, and belt-driven applications. The lower operating speed of a 4 pole motor provides improved torque characteristics compared to high-speed 2 pole motors, making it well suited to equipment requiring steady and controlled operation. Built with TEFC (Totally Enclosed Fan Cooled) construction, IP55 protection, Class F insulation, and manual reset overload protection, this motor is designed to withstand demanding industrial environments while delivering long service life. The capacitor start and capacitor run system uses a 50μF start capacitor and 14µF run capacitor to provide reliable starting performance and smooth operation under load. For replacement components and maintenance parts, browse our range of motor start capacitors and motor run capacitors. Whether you're replacing an existing motor or installing a new drive system, the TML 71A-4 offers dependable performance, efficient operation, and long-term reliability. Explore our complete range of single phase electric motors for additional industrial motor solutions.
