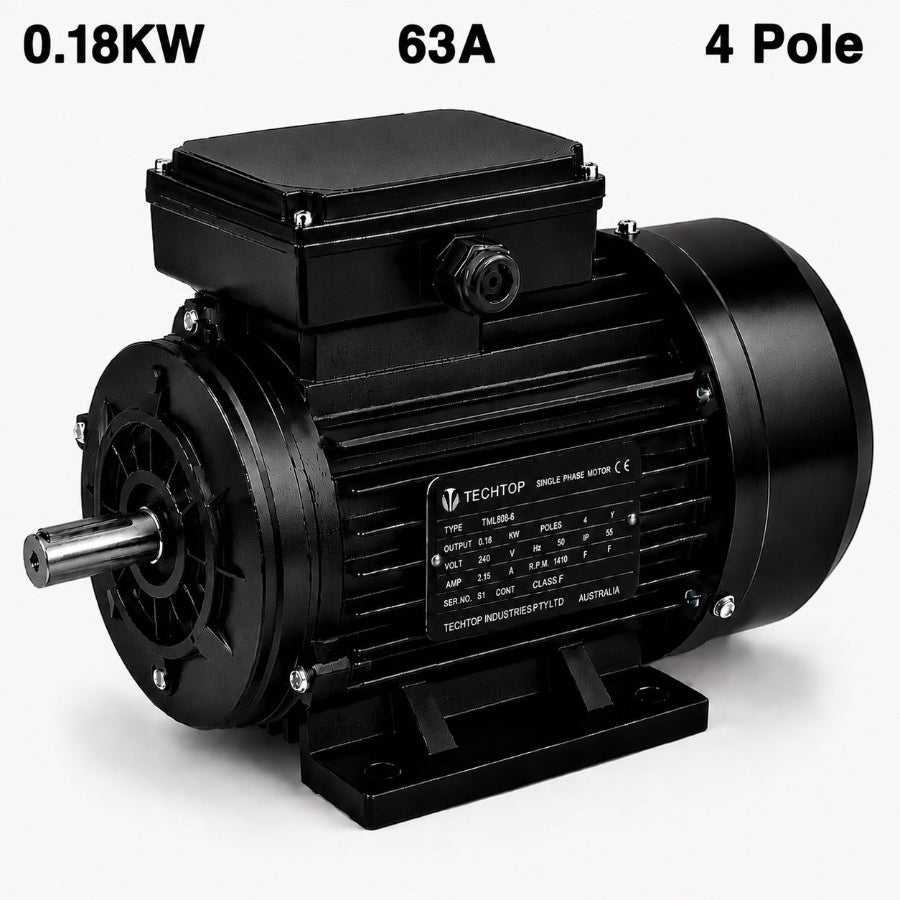

Techtop TML 63A-4 0.18kW Single Phase Electric Motor – 1320RPM 240V

Techtop TML 63A-4 0.18kW Single Phase Electric Motor – 1320RPM 240V

$154.00 AUD
$172.00 AUD $154.00 AUD
Sale Sold out
Excluding GST
Shipping calculated at checkout.
Australian owned

Australian owned

Fast Dispatch

Fast Dispatch

Worldwide Shipping

Worldwide Shipping

Expert Support

Expert Support

The Techtop TML 63A-4 is a compact and reliable 0.18kW single phase electric motor designed for pumps, fans, workshop machinery, and light industrial applications. Featuring a durable aluminium housing and capacitor start/capacitor run design, this 4 pole motor delivers smooth 1320RPM performance, reliable starting torque, and efficient operation on a standard 240V power supply.

Built with IP55 protection, Class F insulation, and TEFC construction, the TML 63A-4 is designed for continuous-duty operation in demanding industrial and workshop environments.

Download Official Techtop TML 63A-4 Motor Data Sheet PDF

Faqs

What applications is the TML-63A-4 motor suitable for?

The TML-63A-4 is suitable for pumps, fans, workshop machinery, belt-driven equipment, and general industrial applications.

Is this a single phase motor?

Yes, this is a 240V single phase electric motor with capacitor start and capacitor run operation.

What speed does this motor operate at?

This motor operates at approximately 1320RPM and features a 4 pole configuration.

What type of protection does this motor have?

The motor features IP55 protection and manual reset overload protection for reliable industrial operation.

What type of bearings are used?

This motor uses high-quality NSK ball bearings with 6201ZZ / 6201ZZ C3 bearing configuration.

Is this motor suitable for continuous operation?

Yes, the TML series motors are designed for S1 continuous-duty industrial applications.

What capacitors does this motor use?

The motor uses a 40μF start capacitor and a 12µF run capacitor for reliable starting and smooth operation.

Can this motor be used as a replacement motor?

Yes, the TML-63A-4 is commonly used as a replacement electric motor for compatible industrial and workshop equipment.

Specification

  • Model: TML-63A-4

  • Power Output: 0.18kW

  • Pole: 4 Pole

  • Voltage: 240V

  • Frequency: 50Hz

  • Speed: 1320 RPM

  • Full Load Current: 1.41 Amps

  • Frame Size: 63A

  • Construction: Aluminium

  • Motor Type: TEFC - Capacitor Start / Capacitor Run

  • Protection Rating: IP55

  • Insulation Class: Class F with Class B Rise

  • Duty Rating: S1 Continuous Duty

  • Thermal Protection: Manual Reset Overload

  • Full Load Torque: 1.3Nm

  • Starting Current Ratio: 4.7

  • Starting Torque Ratio: 2.5

  • Break Down Torque Ratio: 1.6

  • Efficiency @ 100% Load: 55.0%

  • Power Factor @ 100% Load: 0.99

  • Noise Level: 56 dB(A)

  • Vibration Limit: 1.8 mm/sec

  • Bearing Brand: NSK

  • Bearing Type: Ball / Ball

  • Bearing Size: 6201ZZ / 6201ZZ C3

  • Weight: 4.9kg

  • Start Capacitor: 40μF / 250VAC

  • Run Capacitor: 12µF / 450VAC

  • IEC Standard: IEC 60034 & 72

Features and benefits

  • Durable aluminium motor housing
  • Reliable capacitor start and capacitor run operation
  • Smooth low-speed 4 pole 1320RPM performance
  • Designed for continuous-duty industrial applications
  • IP55 rated for protection against dust and moisture
  • Manual reset overload protection for added safety
  • Class F insulation with Class B temperature rise
  • TEFC enclosed motor design for industrial environments
  • Suitable for pumps, fans, workshop machinery, and belt-driven equipment
  • Compact and reliable replacement motor solution
  • High-quality NSK bearings for long service life
  • Designed for standard 240V single phase power supplies

SHIPPING & DELIVERY

Domestic Shipping (Australia)

Standard Shipping: 2–4 business days

  • Free standard shipping on eligible orders over $300 Australia-wide
  • Selected products qualify for free shipping regardless of order value
  • Free standard shipping available within Melbourne metro (within 40km of the CBD)

Express Shipping: 1–3 business days

  • Express shipping rates calculated at checkout

International Shipping

Standard International: 7–15 business days
Express International: 3–7 business days

  • Customs duties, taxes, or import fees may apply depending on destination country

Heavy & Oversized Items

  • Free shipping does not apply to heavy or oversized products
  • Shipping is charged separately and calculated at checkout
  • Express shipping is not available for heavy items
View full details
Variant Stock Quantity Price Variant total Variant total
B3 - Foot MountSKU: TA4A018·TML B3
B3 - Foot MountSKU: TA4A018·TML B3
$172.00
$154.00/ea
 Only 2 Left
$172.00
$154.00/ea
 $0.00
B5 - Flange MountSKU: TA4A018·TML B5
B5 - Flange MountSKU: TA4A018·TML B5
$172.00
$154.00/ea
 Only 2 Left
$172.00
$154.00/ea
 $0.00
B14 - Face MountSKU: TA4A018·TML B14
B14 - Face MountSKU: TA4A018·TML B14
$172.00
$154.00/ea
 Only 2 Left
$172.00
$154.00/ea
 $0.00
B34 - Foot & Face MountSKU: TA4A018·TML B34
B34 - Foot & Face MountSKU: TA4A018·TML B34
$172.00
$154.00/ea
 Only 2 Left
$172.00
$154.00/ea
 $0.00
B35 - Foot & Flange MountSKU: TA4A018·TML B35
B35 - Foot & Flange MountSKU: TA4A018·TML B35
$172.00
$154.00/ea
 Only 2 Left
$172.00
$154.00/ea
 $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart
The Techtop TML 63A-4 0.18kW Single Phase Electric Motor is engineered for reliable performance in industrial, workshop, agricultural, and general machinery applications. Featuring a robust aluminium frame and capacitor start/capacitor run (CSCR) design, this motor delivers dependable starting characteristics and smooth low-speed operation at 1320RPM. The 4 pole configuration provides increased torque and reduced operating speed compared to equivalent 2 pole motors, making it an excellent choice for pumps, fans, conveyors, belt-driven equipment, and machinery requiring controlled and reliable power delivery. Designed for operation on a standard 240V single phase power supply, the TML 63A-4 features Totally Enclosed Fan Cooled (TEFC) construction, helping protect internal components from dust and moisture. Combined with an IP55 protection rating and Class F insulation system, the motor is built to perform in demanding industrial environments while maintaining long service life. High-quality NSK bearings provide smooth operation and durability, while the manual reset overload protection helps safeguard the motor against excessive current draw and overheating. The lightweight aluminium housing offers excellent corrosion resistance while making installation and handling easier than traditional cast iron alternatives. For maintenance and replacement components, browse our range of motor start capacitors and motor run capacitors to keep your electric motors operating at peak performance. Whether you're replacing an existing motor or installing a new drive system, the Techtop TML 63A-4 provides a dependable and efficient solution backed by proven industrial motor technology and fast Australia-wide shipping.
