Techtop TML 63A-2 0.18kW Single Phase Electric Motor – 2 Pole 2710RPM 240V

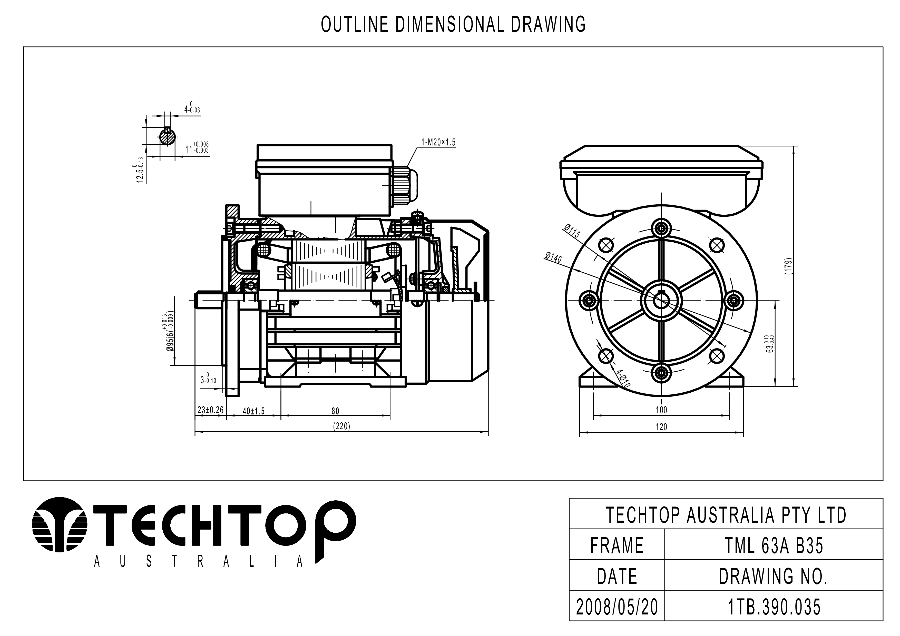

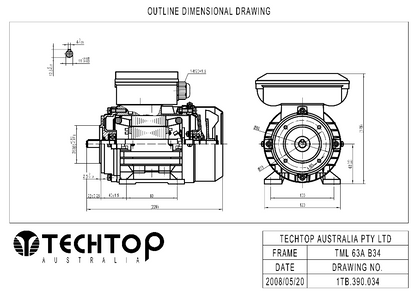

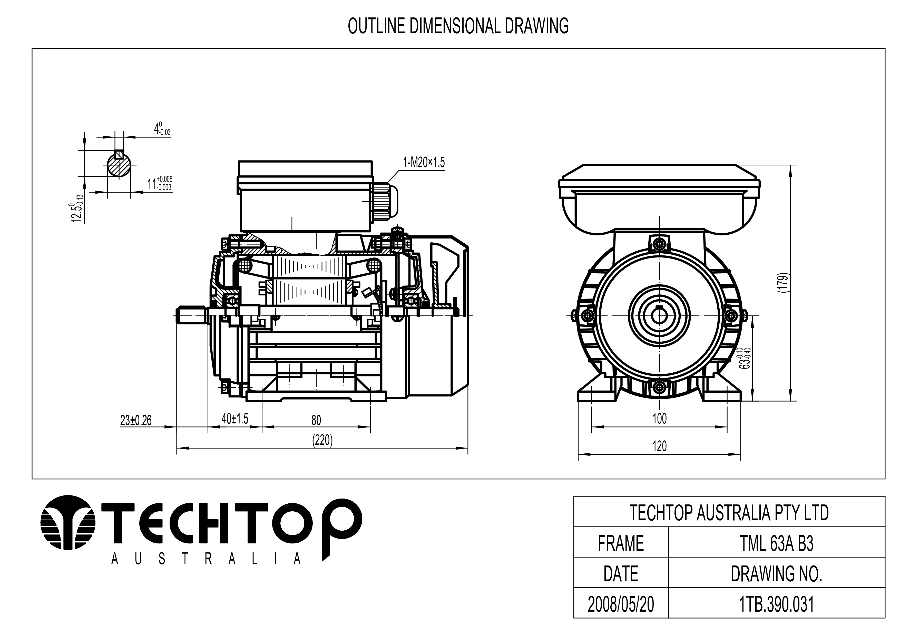

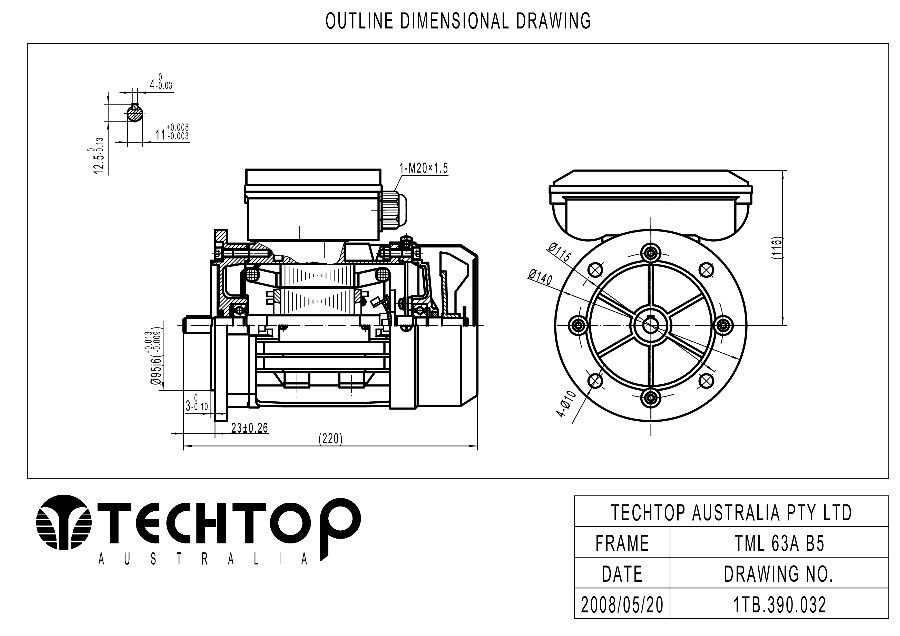

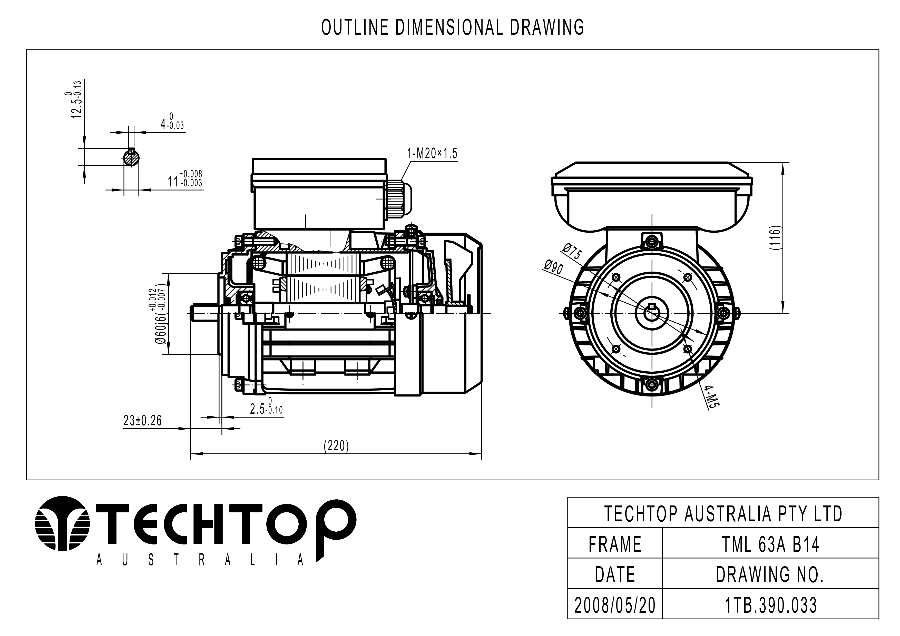

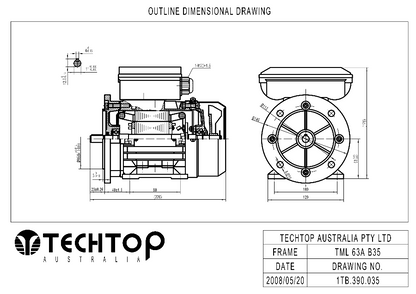

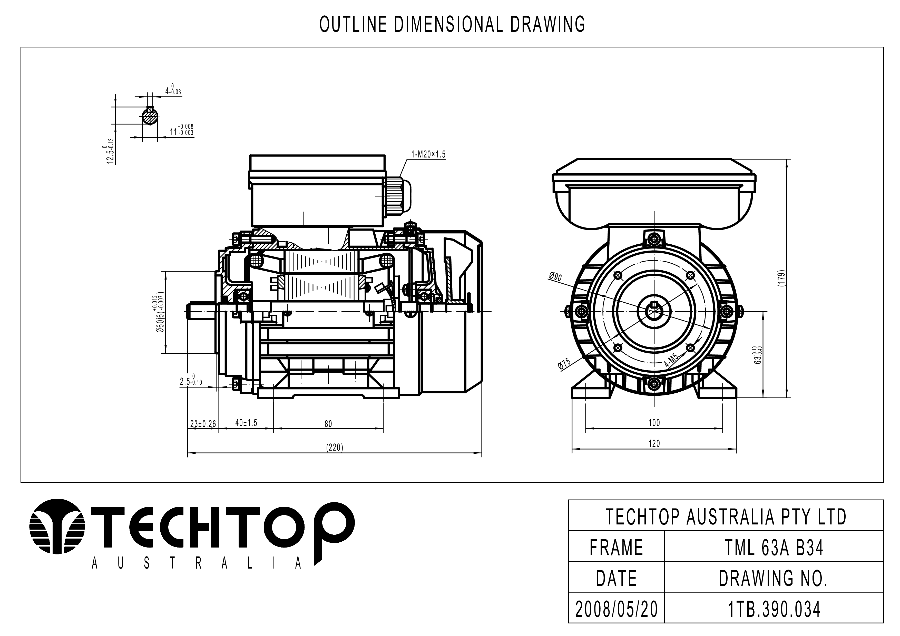

  • Techtop TML 63 B3 foot mount dimensional drawing for single phase electric motor
  • Techtop TML 63A 0.18kW 2 Pole 240V single phase electric motor
  • Techtop TML series single phase motor performance data, capacitor sizes, dimensions and frame specifications
1 3

Techtop TML 63A-2 0.18kW Single Phase Electric Motor – 2 Pole 2710RPM 240V

Techtop TML 63A-2 0.18kW Single Phase Electric Motor – 2 Pole 2710RPM 240V

● Only 2 Left – Order Soon

Mounting Type
$162.00 AUD
$179.00 AUD $162.00 AUD
Sale Sold out
Excluding GST
Shipping calculated at checkout.
Australian owned

Australian owned

Fast Dispatch

Fast Dispatch

Worldwide Shipping

Worldwide Shipping

Expert Support

Expert Support

Introducing the Techtop TML 63A-2 0.18kW Single Phase Electric Motor. This high-performance motor operates at 2710 RPM, making it an ideal choice for industrial and workshop applications including pumps, fans, and more.

  • Robust Durability: Crafted from lightweight yet tough aluminum housing to withstand demanding environments.
  • Compact Design: Perfect for tight spaces, ensuring easy installation without compromising power.
  • IP55 Protection: Effectively safeguards against dust and moisture, enhancing longevity.
  • Continuous Duty Rating: Designed for reliable operation in both commercial and industrial settings.

Elevate your manufacturing capabilities with the Techtop TML 63A-2. Shop today!

Faqs

What applications is the TML-63A-2 motor suitable for?

The TML-63A-2 is commonly used for pumps, fans, workshop machinery, belt drive systems, and light industrial equipment requiring a compact high-speed single phase motor.

Is this a single phase motor?

Yes, this is a 240V single phase electric motor with capacitor start and capacitor run operation.

What speed does this motor operate at?

This motor operates at approximately 2710RPM and features a 2 pole configuration.

What is the shaft diameter?

The shaft diameter is 11mm.

Does this motor include capacitors?

Yes, the motor uses both a start capacitor and a run capacitor for reliable startup and smooth operation.

Is this motor suitable for continuous operation?

Yes, the TML series motors are designed for continuous-duty industrial and workshop applications.

What protection rating does this motor have?

This motor features an IP55 protection rating for protection against dust and water ingress in industrial environments.

Can this motor be used as a replacement motor?

Yes, the TML-63A-2 is commonly used as a replacement electric motor for compatible machinery and equipment.

Specification

  • Model: TML-63A-2

  • Power Output: 0.18kW

  • Pole: 2 Pole

  • Voltage: 240V

  • Frequency: 50Hz

  • Speed: 2710 RPM

  • Full Load Current: 1.3 Amps

  • Frame Size: 63A

  • Shaft Diameter: 11mm

  • Construction: Aluminium

  • Motor Type: TEFC - Capacitor Start / Capacitor Run

  • Protection Rating: IP55

  • Insulation Class: Class F with Class B Rise

  • Duty Rating: S1 Continuous Duty

  • Thermal Protection: Manual Reset Overload

  • Locked Rotor Current: 514%

  • Noise Level: 56 dB(A)

  • Bearing Brand: NSK

  • Bearing Type: Ball / Ball

  • Bearing Size: 6201ZZ / 6201ZZ C3

  • Weight: 3.9kg

  • Start Capacitor: 30μF, 250VAC

  • Run Capacitor: 8µF, 450VAC

  • IEC Standard: IEC 60034 & 72

  • SKU: TA2A018-TML

Features and benefits

  • Compact and lightweight aluminium motor housing
  • Reliable capacitor start and capacitor run operation
  • High-speed 2 pole 2710RPM performance
  • Suitable for continuous-duty industrial applications
  • Smooth and efficient motor operation
  • IP55 rated for protection against dust and moisture
  • Ideal for pumps, fans, belt drive systems, and workshop machinery
  • Compact frame size for easy installation
  • Designed for 240V single phase power supplies
  • Durable construction for reliable long-term performance
  • Excellent replacement motor solution for industrial and workshop equipment

SHIPPING & DELIVERY

Domestic Shipping (Australia)

Standard Shipping: 2–4 business days

  • Free standard shipping on eligible orders over $300 Australia-wide
  • Selected products qualify for free shipping regardless of order value
  • Free standard shipping available within Melbourne metro (within 40km of the CBD)

Express Shipping: 1–3 business days

  • Express shipping rates calculated at checkout

International Shipping

Standard International: 7–15 business days
Express International: 3–7 business days

  • Customs duties, taxes, or import fees may apply depending on destination country

Heavy & Oversized Items

  • Free shipping does not apply to heavy or oversized products
  • Shipping is charged separately and calculated at checkout
  • Express shipping is not available for heavy items
View full details
The Techtop TML 63A-2 single-phase electric motor is a compact and reliable 0.18kW motor engineered for workshop, industrial, agricultural, and light-duty machinery applications. This 2-pole, 2710 RPM design motor delivers smooth, high-speed performance for equipment that requires economical, reliable operation. Built with a lightweight yet durable aluminium housing, the TML 63A-2 is designed for easy installation while maintaining excellent strength and corrosion resistance. Its capacitor-start/capacitor-run (CSCR) configuration provides reliable starting torque, improved running efficiency, and stable performance under continuous operation. This motor is designed for use with 240V single-phase power supplies, this electric motor is suitable for a wide range of industrial and workshop equipment including pumps, fans, belt drive systems, air movement equipment, light machinery, and replacement motor applications. With an IP55 protection rating, the Techtop TML 63A-2 is built to withstand demanding industrial and workshop environments by helping protect against dust ingress and water exposure. The motor is suitable for continuous duty operation and provides reliable long-term performance in commercial and industrial applications. Common applications include: Workshop machinery Pumps and water transfer systems Fans and ventilation equipment Belt-driven machinery Agricultural equipment Industrial replacement motor applications Explore our range of single-phase electric motors, browse our industrial products on the Paddle Wholesale Australia homepage, and shop additional industrial tool parts and workshop solutions for commercial and industrial applications.
