Is the Techtop TAI 0.06kW motor single phase or three phase?

This is a three phase electric motor designed for 230/415V, 50Hz operation.

What speed does the 0.06kW motor run at?

This is a 4 pole motor with a full-load speed of approximately 1370 RPM.

What frame size is this motor?

This model uses a 56A IEC frame. Always compare the frame and dimensional information with your existing motor when selecting a replacement.

What is the full-load current?

The motor has a full-load current of approximately 0.30A at 400V.

What mounting options are available?

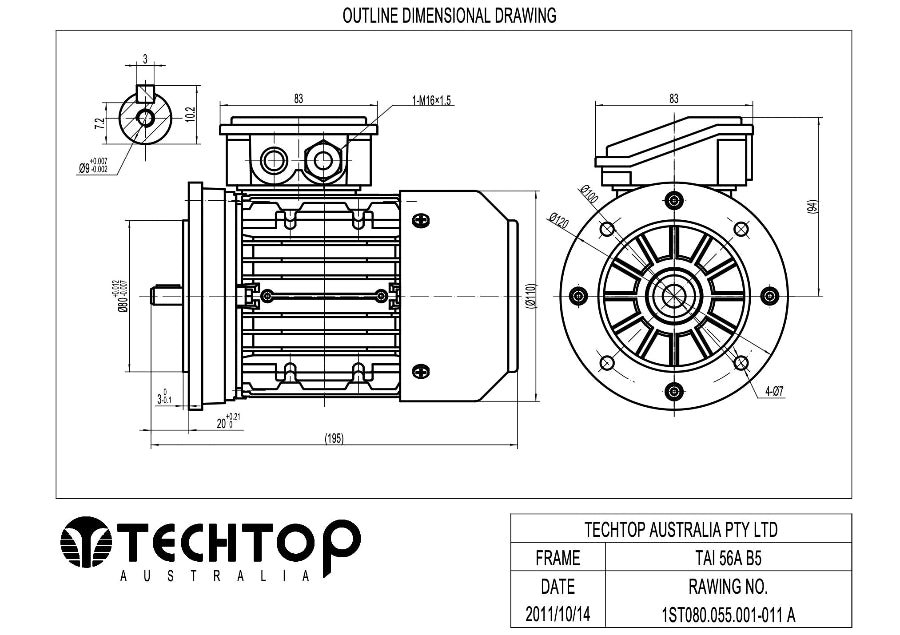

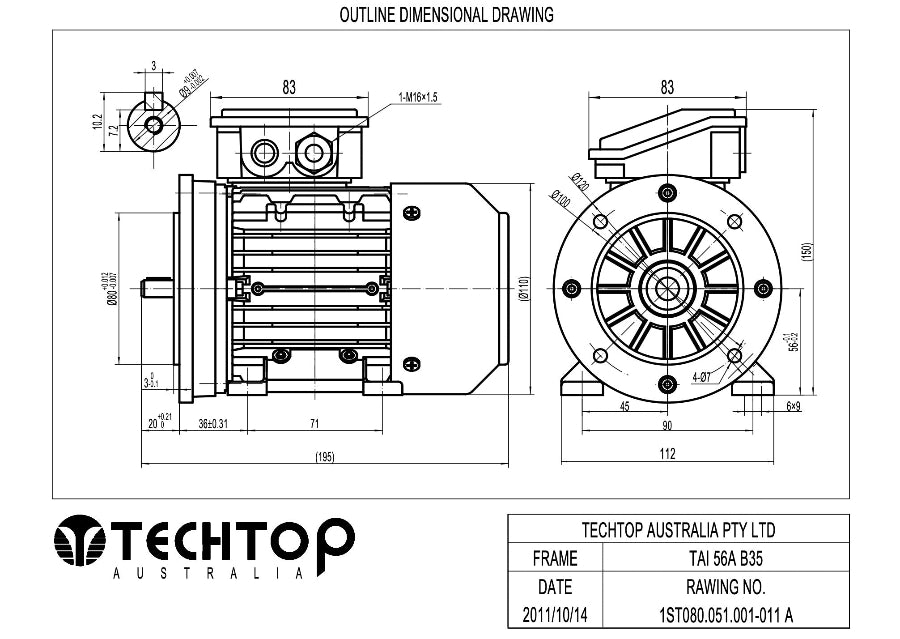

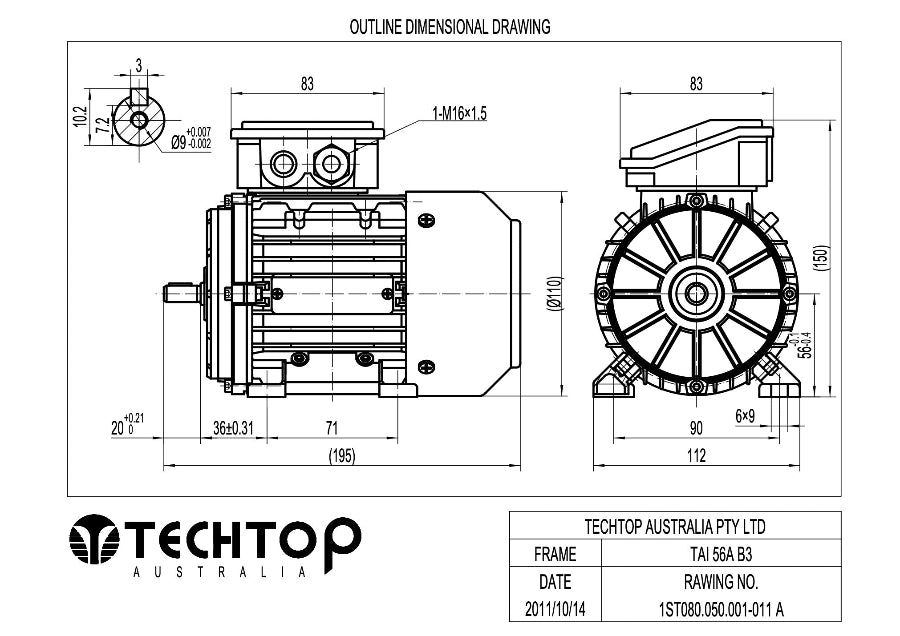

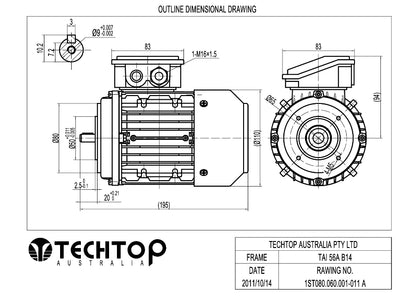

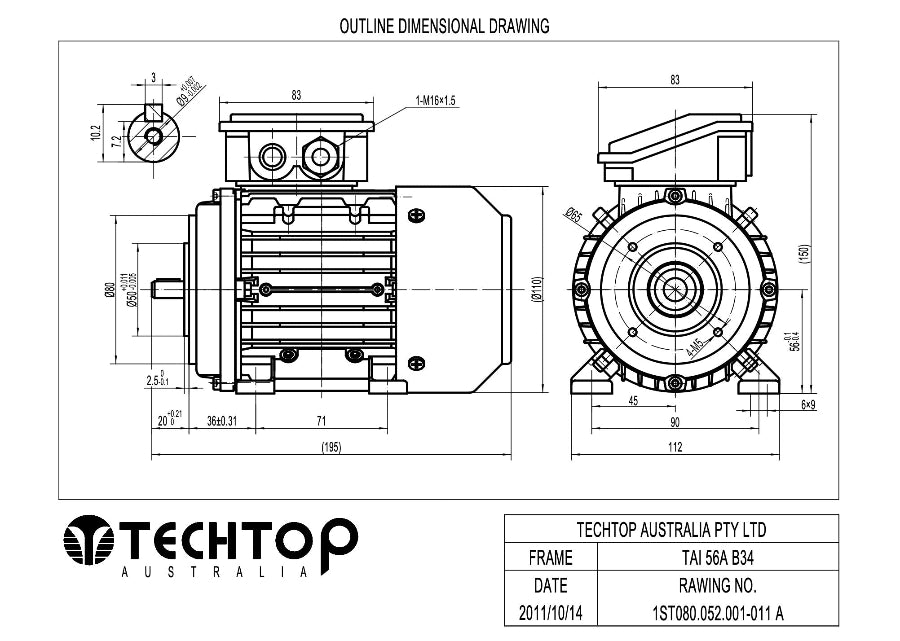

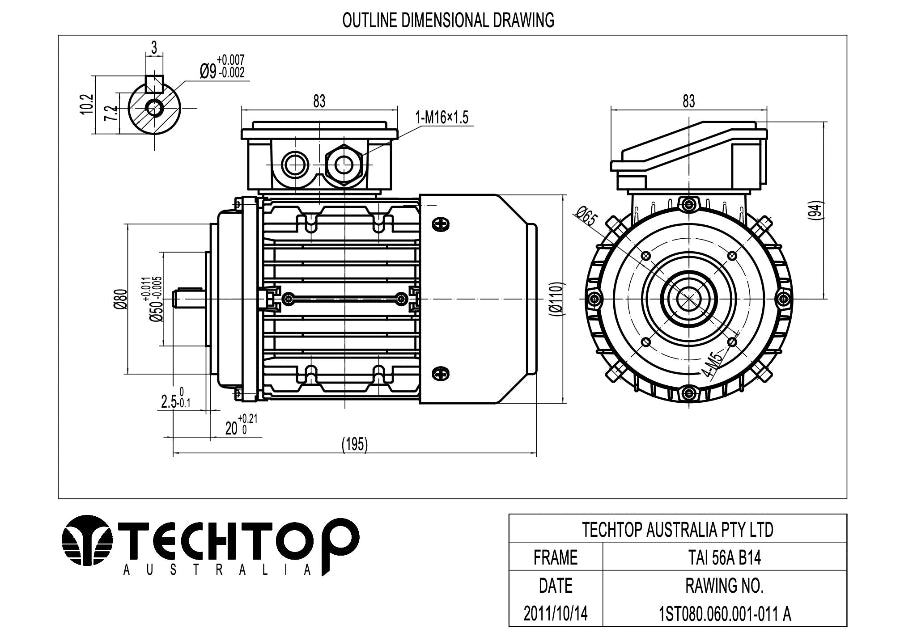

Techtop TAI motors are available in multiple mounting configurations depending on the required model and installation. Common configurations include B3 Foot Mount, B5 Flange Mount, B14 Face Mount, B34 Foot & Face Mount and B35 Foot & Flange Mount.

Can this motor replace another brand?

Potentially, yes. When selecting a replacement motor, compare the rated output, voltage, poles, RPM, IEC frame size, shaft dimensions, mounting arrangement and physical dimensions of the existing motor.

How can I confirm which replacement motor I need?

Send Paddle Wholesale Australia a clear photo of your existing motor's nameplate, shaft and mounting arrangement. We can help identify the specifications required for a suitable replacement.

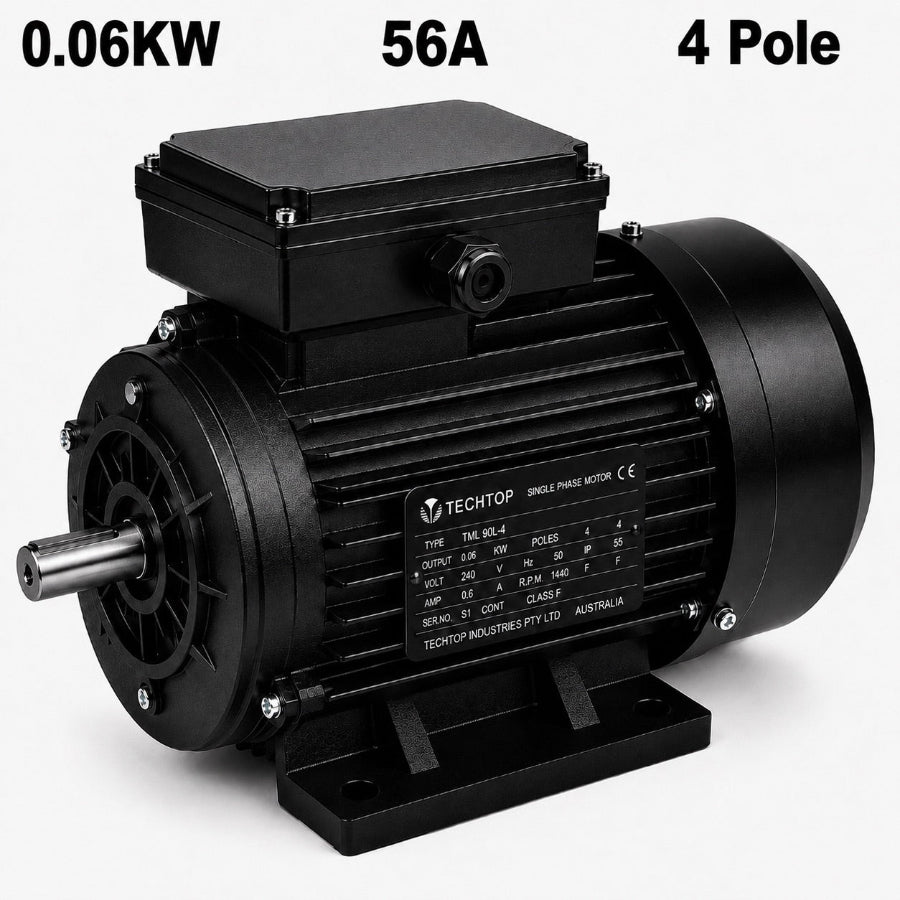

• Brand: Techtop
• Series: TAI
• Motor Type: Three Phase Aluminium Electric Motor
• Part Number: TA4A006-TAI
• Rated Output: 0.06kW
• Poles: 4 Pole
• Full Load Speed: 1370 RPM
• Frame Size: 56A
• Full Load Current: 0.30A @ 400V
• Voltage: 230/415V @ 50Hz
• Duty Rating: S1 Continuous Duty
• Construction: Aluminium
• Enclosure Type: TEFC
• Protection Rating: IP55
• Insulation Class: Class F with Class B Rise
• Full Load Torque: 0.42Nm
• Efficiency @ 100% Load: 50.9%
• Power Factor @ 100% Load: 0.56
• Noise Level: 56 dB(A) @ 1 metre
• Bearing Make: NSK
• Bearing Type: Ball / Ball
• Bearing Size: 6201ZZ / 6201ZZ C3
• Motor Mass: 2.9kg
• IEC Standard: IEC 60034 & 72

• Compact 0.06kW Output: Suitable for smaller industrial machinery, fans, pumps and other low-power three phase applications.
• 4 Pole Performance: Provides a full-load speed of approximately 1370 RPM for equipment requiring around 1400 RPM operation.
• Compact 56A Frame: Small IEC frame size makes the motor suitable for machinery where installation space is limited.
• Lightweight Aluminium Construction: Provides a durable motor housing while keeping overall motor weight low.
• TEFC Construction: Totally Enclosed Fan Cooled design provides dependable cooling and protection for industrial operation.
• IP55 Protection: Provides protection against dust and water ingress for general industrial environments.
• Class F Insulation: Class F insulation with Class B temperature rise provides reliable thermal performance.
• S1 Continuous Duty: Designed for continuous operation at rated load when correctly selected and installed.
• NSK Bearings: Fitted with quality NSK ball bearings for dependable operation.
• Flexible Mounting: The Techtop TAI range supports multiple mounting configurations for new and replacement motor installations.
• Replacement Motor Option: Suitable for replacing compatible three phase motors when power, speed, frame and mounting specifications match.
