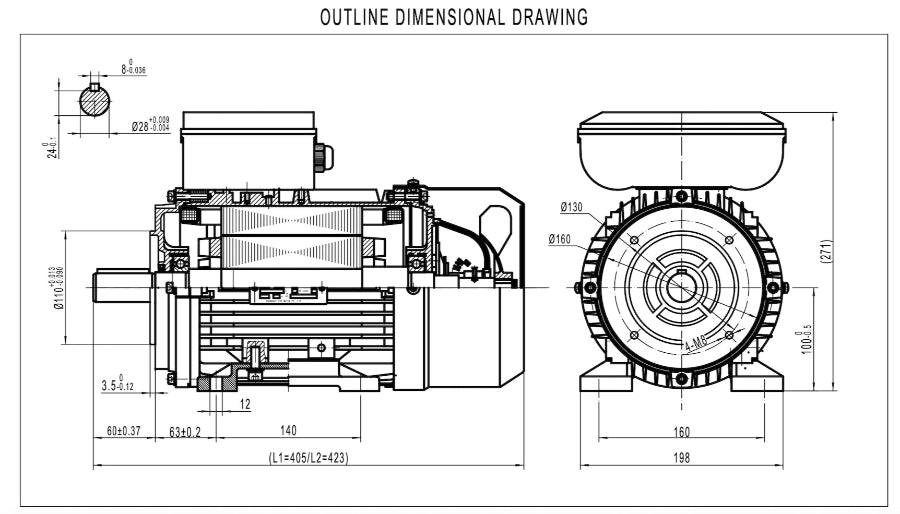

  • Techtop TML 100A B3 outline dimensional drawing showing shaft, foot mounting and overall motor dimensions
  • Techtop TML-100LA-4 single phase electric motor side view
  • Techtop TML series single phase motor performance data, capacitor sizes, dimensions and frame specifications

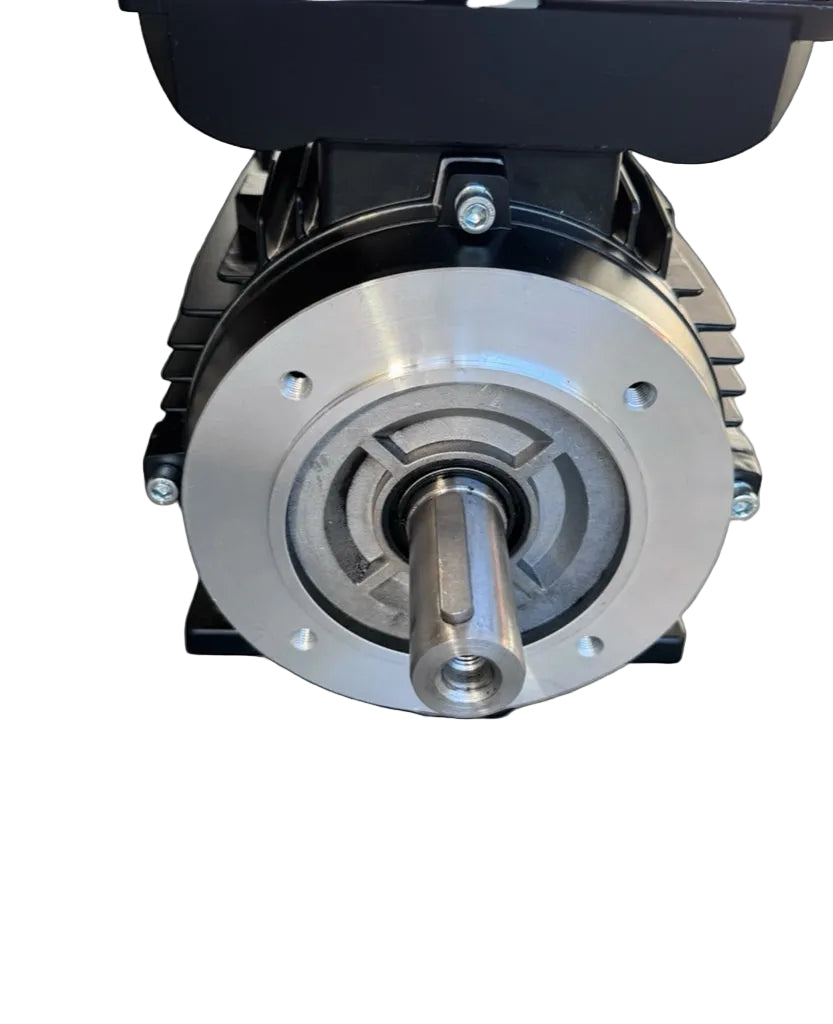

  • Techtop TML-100LA-4 electric motor B14 flange front view

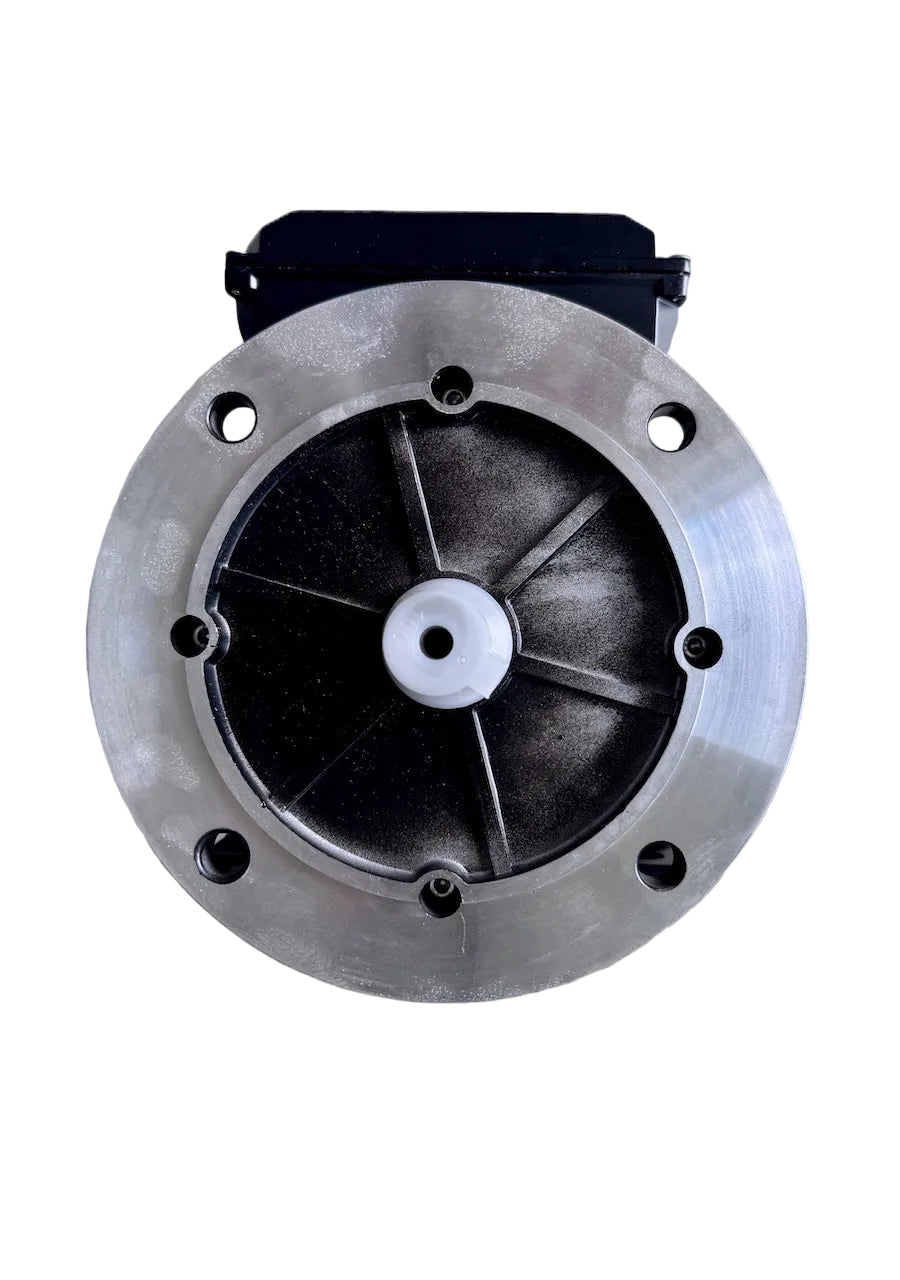

  • Techtop TML-100LA-4 electric motor B5 flange front view

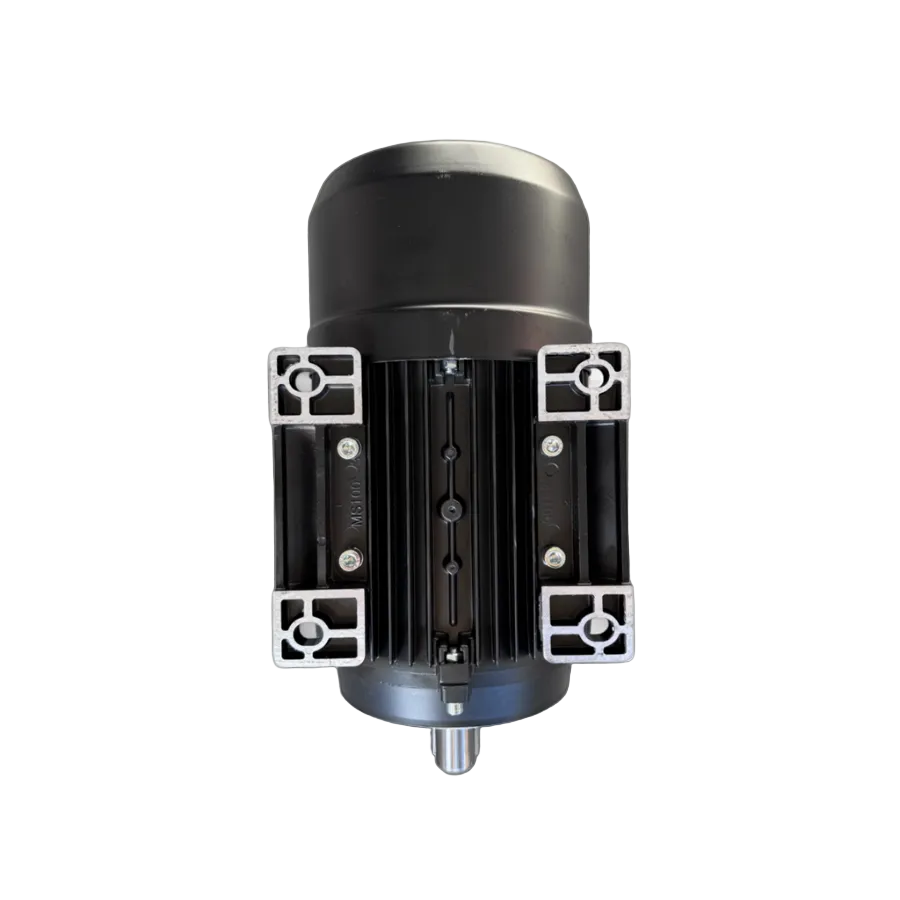

  • Techtop TML-100LA-4 electric motor foot mounting B3 base
1 6

Techtop 2.2kW Electric Motor TML-100LA-4 | Single Phase 4 Pole 240V

Techtop 2.2kW Electric Motor TML-100LA-4 | Single Phase 4 Pole 240V

● 🔥 Almost Gone — Only 3 Left!

Mounting type
$575.30 AUD
$638.00 AUD $575.30 AUD
Sale Sold out
GST included
Same-Day Dispatch

Same-Day Dispatch

30-Day Returns

30-Day Returns

Australian Owned

Australian Owned

Worldwide Shipping

Worldwide Shipping

Maximize your operational efficiency with the Techtop 2.2kW Electric Motor TML-100LA-4. Engineered for single-phase 240V power, this robust 4-pole motor delivers 1440 RPM for a range of demanding applications, including floor grinders, pumps, and mixers.

With an IP55 rating for dust and moisture resistance and a lightweight aluminum housing, this motor is built to withstand challenging environments while ensuring reliable power delivery. Installation is seamless with included start and run capacitors.

  • Power Output: 2.2 kW
  • Current: 11.6 Amps
  • Shaft Diameter: 28mm
  • Thermal overload protection: for enhanced safety
  • Ideal for: industrial equipment and continuous-duty applications

Upgrade your machinery with the Techtop TML-100LA-4 today and enjoy efficient, powerful performance in every task!

Download the 2.2KW single-phase motor datasheet!

Faqs

  • What machines can use the Techtop TML-100LA-4 motor?
    This motor is commonly used in floor grinders, pumps, conveyors, mixers, and other industrial machinery requiring a reliable 2.2 kW single-phase motor.

  • What does a 4-pole motor mean?
    A 4-pole motor typically runs at around 1440 RPM, providing smoother operation, improved torque, and reduced vibration compared with higher-speed motors.

  • Is this motor suitable for continuous operation?
    Yes. The motor is designed for demanding industrial environments and can operate continuously when installed and ventilated correctly.

  • Does the motor include capacitors?
    Yes. The motor is supplied complete with capacitors, making installation easier for replacement or upgrade applications.

Technical Specifications



  • Model: TML-100LA-4

  • Pole: 4 Pole

  • Voltage: 240V

  • Frequency: 50Hz

  • Speed: 1440 RPM

  • Power Output: 2.2kW

  • Current: 11.6 Amps

  • Shaft Diameter: 28mm

  • Start Capacitor: 350μF, 300/330VAC

  • Run Capacitor: 50µF, 450VAC



Ideal applications

  • Floor preparation machines

  • Aluminium gearbox-driven equipment

  • Construction, flooring, and workshop machinery

  • Custom machinery with single-phase power needs

  • Concrete floor grinders

  • Conveyors & material handling equipment

  • Mixers and agitators

  • Fans and compressors

Key advantages

  • High-efficiency CSCR (Capacitor Start / Capacitor Run) design

  • IP55 rated for dust and water resistance

  • Smooth, quiet operation with strong starting torque

  • Aluminium housing for lightweight durability

  • Thermal overload protection included

  • Suits 250 floor grinders and other high-demand equipment

  • Flexible mounting for easy integration

  • Reliable operation on 240V / 50Hz – built for Australian conditions

SHIPPING & DELIVERY

Domestic Shipping — Australia

Standard Shipping: Estimated 2–4 business days after dispatch.
Express Shipping: Estimated 1–3 business days after dispatch.

Free standard shipping is available on selected products, as shown on the product page. Other shipping charges are calculated at checkout.

New Zealand Shipping

Free standard shipping is available on selected products, as shown on the product page.

For other products, standard shipping charges are calculated at checkout. Express shipping options and estimated delivery times are also shown at checkout.

International Shipping — Other Destinations

Standard Shipping: Estimated 7–15 business days after dispatch.
Express Shipping: Estimated 3–7 business days after dispatch.

Available shipping options and charges are calculated at checkout. Customs duties, taxes or import fees may apply to orders outside Australia.

Heavy & Oversized Items

Heavy and oversized products are excluded from free shipping. Shipping charges are calculated at checkout. Express shipping is not available for these items.

All delivery times are estimates and may vary by destination.

View full details
Techtop TML-100LA-4 2.2kW Single-Phase Electric Motor | 240V 1440 RPM The Techtop TML-100LA-4 is a premium-quality 2.2kW single-phase electric motor designed for demanding industrial, commercial, and workshop applications. Operating on 240V power with a 4-pole configuration and 1440 RPM output, this motor provides strong starting torque, smooth operation, and dependable performance across a wide range of machinery. Its 4-pole design delivers lower operating speeds than high-speed motors, resulting in reduced vibration, improved torque characteristics, and enhanced reliability during continuous operation. This makes it an excellent choice for floor grinders, pumps, conveyors, mixers, fans, compressors, and other equipment requiring stable power delivery. Manufactured with a durable aluminium frame and IP55 protection rating, the motor is designed to withstand harsh working conditions while providing excellent cooling performance and resistance to dust and moisture ingress. The motor is supplied complete with both start and run capacitors, simplifying installation and reducing the need to source additional components. Whether replacing a failed motor or upgrading existing equipment, the TML-100LA-4 offers a reliable solution for professional applications. Suitable Applications: Concrete floor grinders Surface preparation equipment Pumps Conveyors Mixers and agitators Fans and blowers Compressors Workshop machinery Industrial equipment Key Features: 2.2kW power output Single-phase 240V operation 4-pole motor design 1440 RPM operating speed Strong starting torque Smooth and quiet operation IP55 dust and moisture protection Aluminium motor housing Thermal overload protection Supplied with start and run capacitors Designed for continuous-duty industrial applications Included Capacitors: Start Capacitor: 350µF 300/330VAC Run Capacitor: 50µF 450VAC Important Shipping Information: This motor is classified as a heavy item and freight shipping charges apply. Due to shipping restrictions, this product is currently not available for international delivery. For additional maintenance and repair components, browse our range of floor grinder and vacuum spare parts. We also stock a wide selection of single-phase electric motors for industrial, commercial, and workshop applications.
