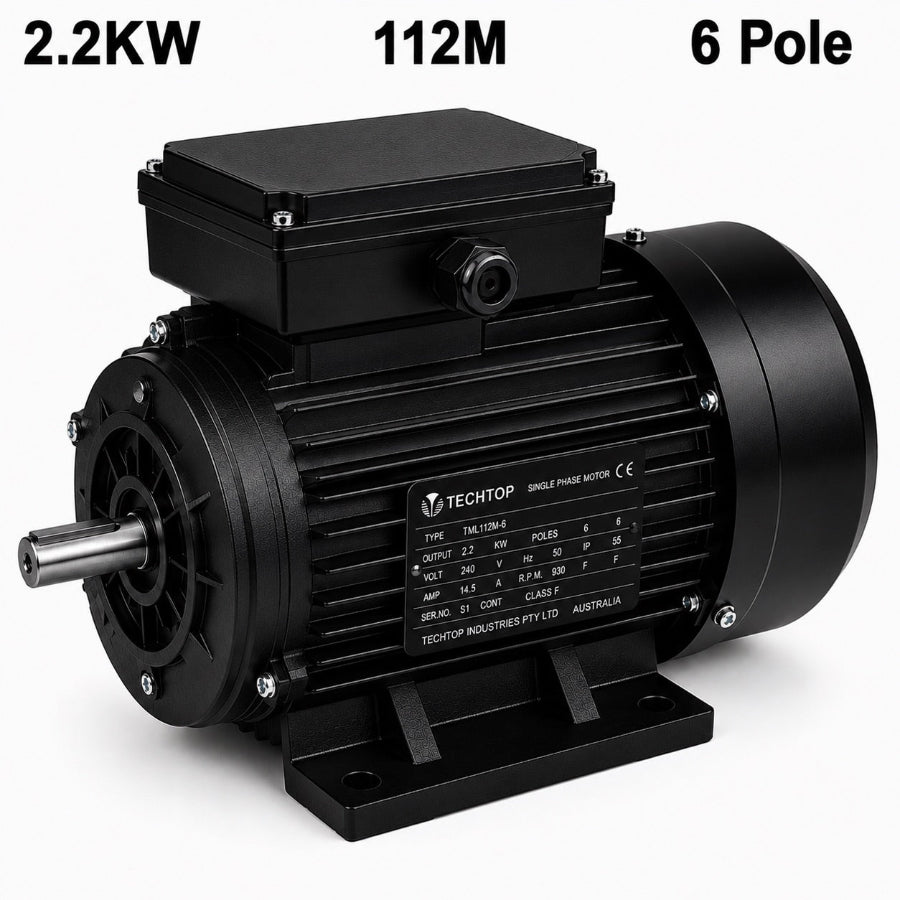

Techtop 2.2kW 6 Pole Single Phase Electric Motor 240V | TML 112M | 965 RPM

What is the Techtop TML 112M 2.2kW 6 Pole motor commonly used for?

This motor is ideal for conveyors, gearboxes, mixers, food processing equipment, agricultural machinery, pumps and industrial equipment requiring high torque at low operating speeds.

What speed does this motor operate at?

The motor operates at approximately 965 RPM. Its 6 pole design provides excellent torque with smooth, controlled operation.

Does this motor require a 240V power supply?

Yes. It operates from a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

The motor uses a Capacitor Start / Capacitor Run (CSCR) system, providing excellent starting torque and efficient continuous-duty performance.

Does this motor include thermal overload protection?

Yes. It features a manual reset thermal overload protector to help prevent overheating.

What capacitors does this motor use?

This motor uses a 400µF 300V start capacitor and a 60µF 450V run capacitor. Paddle Wholesale stocks both replacement Motor Start Capacitors and Motor Run Capacitors.

Can this motor replace an existing single-phase motor?

Yes. If the power rating, frame size, shaft dimensions, mounting configuration and operating speed match your existing motor, it is an excellent replacement.

Why choose a 6 pole motor?

A 6 pole motor produces lower operating speed with significantly higher torque, making it ideal for conveyors, gearboxes, mixers and machinery requiring controlled power delivery.

Do you offer Australia-wide shipping?

Yes. Paddle Wholesale offers fast Australia-wide shipping, expert technical support, competitive trade pricing and worldwide delivery on selected products.

• Brand: Techtop
• Model: TML 112M
• Power Output: 2.2kW
• Poles: 6
• Speed: 965 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 112M

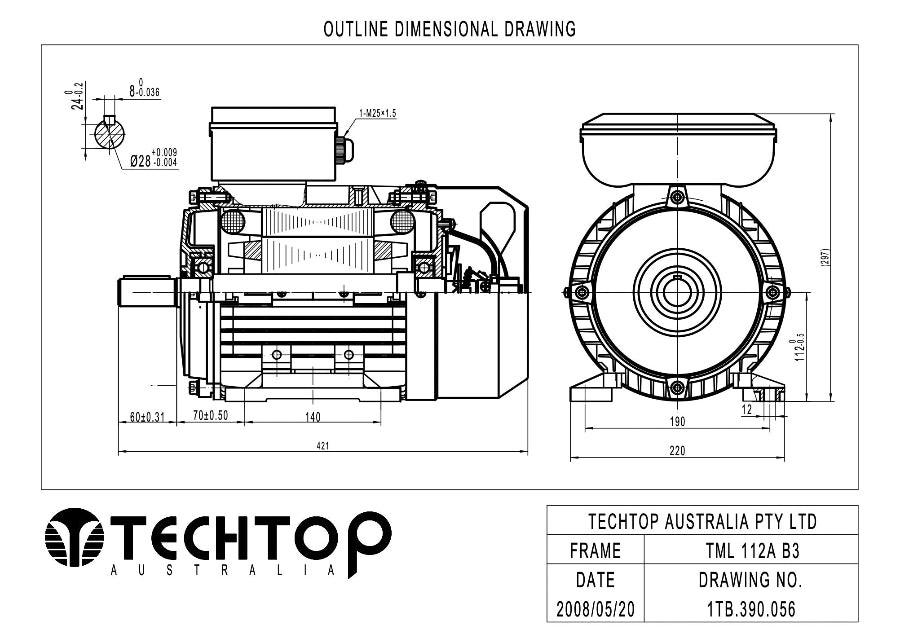

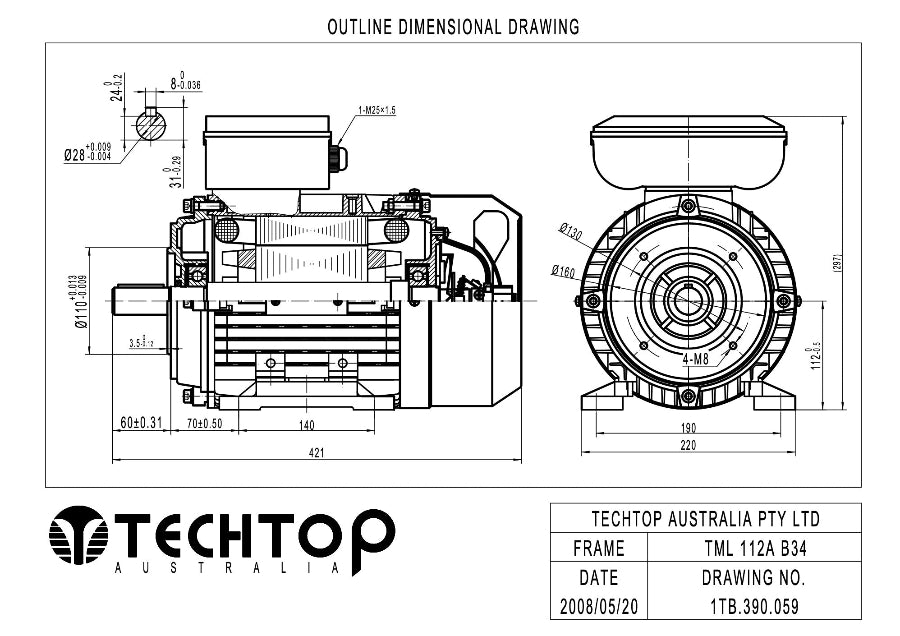

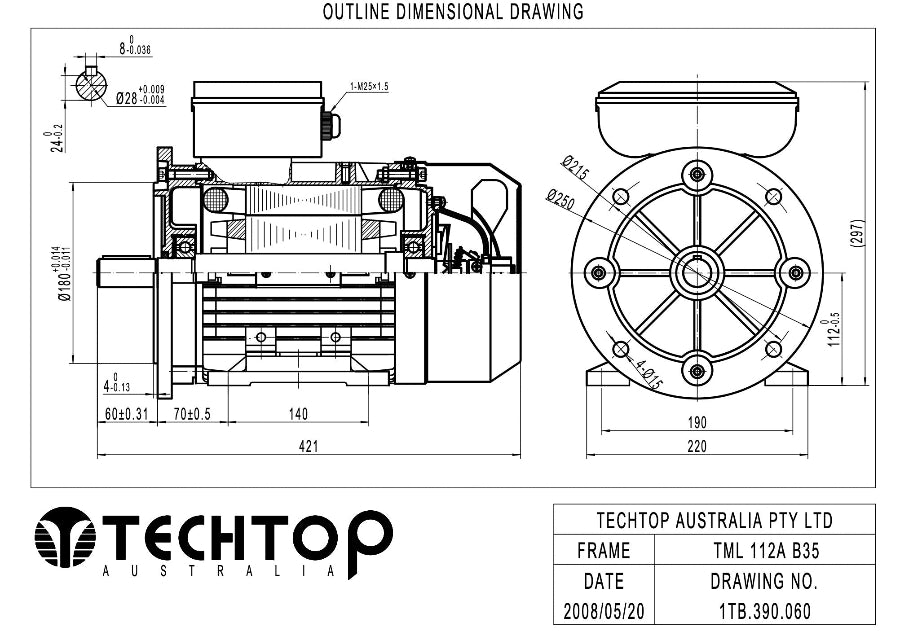

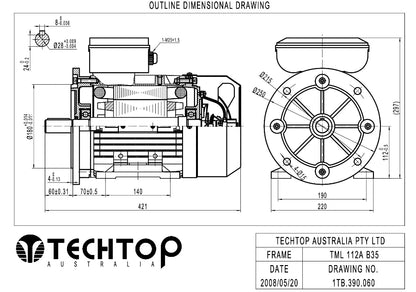

• Mounting: B3 Foot Mount (other mounting options available)
• Motor Series: TML Capacitor Start / Capacitor Run (CSCR)
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Service Factor: 1.1
• Full Load Current: 11.5A
• Full Load Torque: 21.8Nm
• Efficiency: 82.4%
• Power Factor: 0.97
• Maximum Slip: 3.44%
• Noise Level: 66 dB(A)
• Vibration Limit: 1.3mm/sec
• Start Capacitor: 400µF 300V
• Run Capacitor: 60µF 450V
• Bearing Type: NSK 6206ZZ / 6206ZZ C3
• Direction of Rotation: Bi-directional
• Colour: RAL 9005 (Jet Black)
• Thermal Protection: Manual Reset Overload
• Motor Weight: 31.2kg
• Approvals: C-Tick, CE
• IEC Standards: IEC 60034 & IEC 60072

• Powerful 2.2kW Output – Built for demanding industrial and commercial machinery.
• High-Torque 6 Pole Design – Produces approximately 965 RPM for smooth, controlled operation and excellent torque.
• Heavy-Duty 112M Frame – Large aluminium frame provides superior cooling, strength and durability.
• Capacitor Start / Capacitor Run (CSCR) – Delivers excellent starting performance and efficient continuous running.
• 82.4% Efficiency – High operating efficiency helps reduce power consumption.
• TEFC Construction – Protects the motor against dust and moisture.
• IP55 Rated – Suitable for demanding industrial and agricultural environments.
• Premium NSK Bearings – Smooth operation with reduced vibration and long bearing life.
• Manual Reset Thermal Overload Protection – Helps protect against overheating.
• Built to IEC Standards – Manufactured to IEC 60034 & IEC 60072 international standards.
