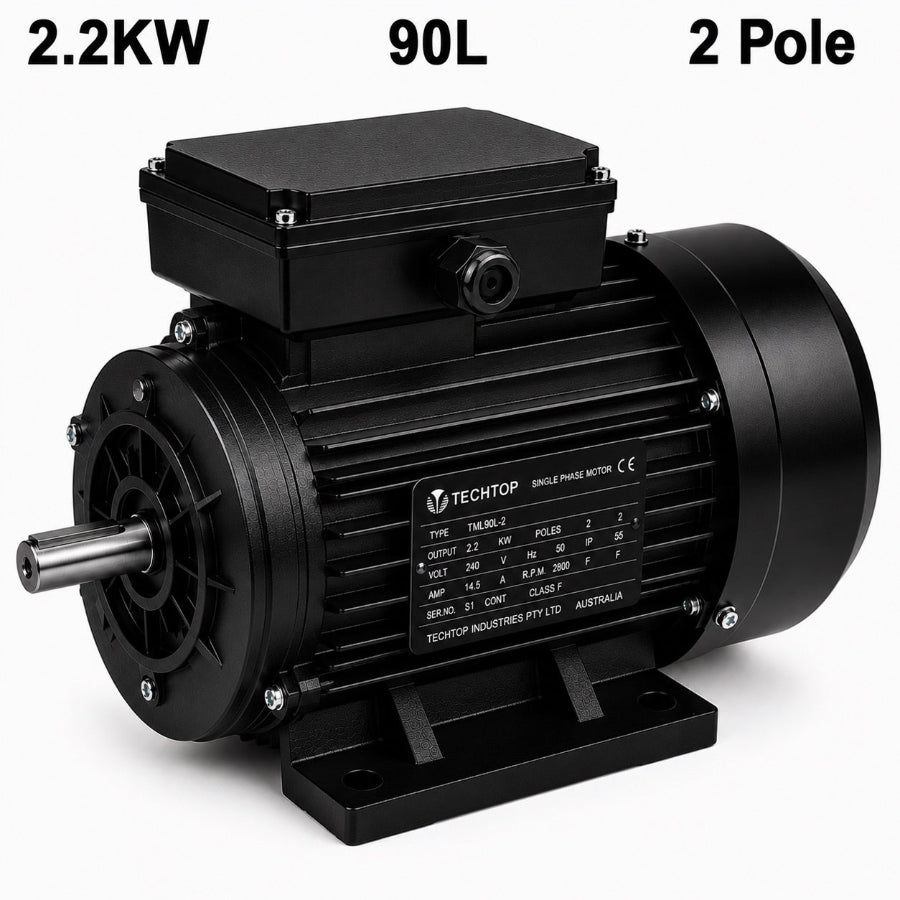

Techtop 2.2kW 2 Pole Single Phase Electric Motor 240V | TML 90L | 2850 RPM

What is the Techtop TML 90L 2.2kW 2 Pole motor commonly used for?

This motor is commonly used for industrial water pumps, air compressors, ventilation systems, blowers, conveyor systems and heavy-duty industrial machinery.

What speed does this motor operate at?

The motor operates at approximately 2850 RPM under full load. Its 2 pole design provides high shaft speed for applications requiring maximum performance.

Does this motor require a 240V power supply?

Yes. It operates from a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

The motor features a Capacitor Start / Capacitor Run (CSCR) design for high starting torque and efficient continuous operation.

Does this motor include thermal overload protection?

Yes. It includes a manual reset thermal overload protector to help prevent overheating and extend motor life.

What capacitors does this motor use?

This motor uses a 250µF 300V start capacitor and a 50µF 450V run capacitor. Paddle Wholesale stocks both replacement Motor Start Capacitors and Motor Run Capacitors.

Can this motor replace an existing single-phase motor?

Yes. As long as the power output, frame size, shaft size, mounting configuration and operating speed match your existing motor, it is an excellent replacement.

Why choose a 2 pole motor?

A 2 pole motor provides higher operating speed than 4 or 6 pole motors, making it ideal for pumps, compressors, fans and machinery requiring maximum RPM.

Do you offer Australia-wide shipping?

Yes. Paddle Wholesale offers fast Australia-wide shipping, expert technical support, competitive trade pricing and worldwide delivery on selected products.

• Brand: Techtop
• Model: TML 90L
• Power Output: 2.2kW
• Poles: 2
• Speed: 2850 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 90L
• Mounting: B14A
• Motor Series: TML Capacitor Start / Capacitor Run (CSCR)
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Service Factor: 1.1
• Full Load Current: 11.4A
• Full Load Torque: 7.37Nm
• Efficiency: 81%
• Power Factor: 0.99
• Maximum Slip: 6%
• Noise Level: 75 dB(A)
• Vibration Limit: 1.3mm/sec
• Start Capacitor: 250µF 300V
• Run Capacitor: 50µF 450V
• Bearing Type: NSK 6205ZZ / 6205ZZ C3
• Direction of Rotation: Anti-clockwise (viewed from drive end)
• Colour: RAL 9005 (Jet Black)
• Thermal Protection: Manual Reset Overload
• Motor Weight: 17kg
• Approvals: C-Tick, CE
• IEC Standards: IEC 60034 & IEC 60072

• Powerful 2.2kW Output – Ideal for demanding industrial, commercial and agricultural machinery.
• High-Speed 2 Pole Design – Operates at approximately 2850 RPM for pumps, compressors, fans and industrial equipment.
• Heavy-Duty 90L Aluminium Frame – Strong, lightweight construction with excellent heat dissipation.
• Capacitor Start / Capacitor Run (CSCR) – Provides high starting torque and smooth continuous operation.
• TEFC Construction – Totally Enclosed Fan Cooled design protects against dust and moisture.
• IP55 Protection – Built for demanding workshop, industrial and agricultural environments.
• Premium NSK Bearings – Ensures reliable operation with reduced vibration and longer service life.
• Manual Reset Thermal Overload Protection – Helps protect the motor against overheating.
• S1 Continuous Duty Rated – Designed for reliable continuous industrial operation.
• Manufactured to IEC Standards – Built to IEC 60034 and IEC 60072 international quality standards.
