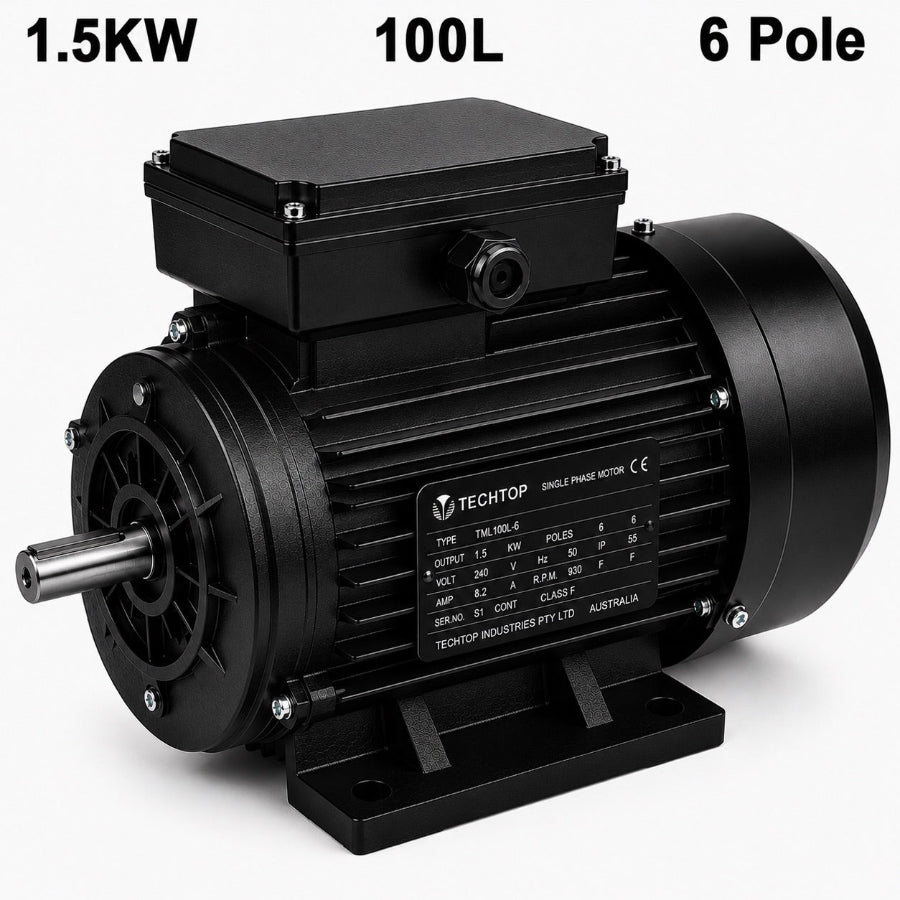

Techtop 1.5kW 6 Pole Single Phase Electric Motor 240V | TML 100L | 960 RPM

What is the Techtop TML 100L 1.5kW 6 Pole motor commonly used for?

This motor is ideal for industrial conveyors, gearboxes, mixers, pumps, agricultural machinery, food processing equipment and other applications requiring high torque at lower operating speeds.

What speed does this motor operate at?

The motor operates at approximately 960 RPM under full load. Its 6 pole design delivers higher torque and smoother operation than faster motors.

Does this motor require a 240V power supply?

Yes. The motor is designed to operate from a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

The motor features a Capacitor Start / Capacitor Run (CSCR) design, providing high starting torque and efficient continuous operation.

Does this motor include thermal overload protection?

Yes. It includes an integrated manual reset thermal overload protector to help prevent overheating.

What capacitors does this motor use?

This motor uses a 200µF 300V start capacitor and a 45µF 450V run capacitor. Paddle Wholesale stocks both replacement Motor Start Capacitors and Motor Run Capacitors.

Why choose a 100L frame motor?

The 100L frame provides increased strength, improved cooling capacity and greater durability, making it suitable for larger industrial equipment operating continuously.

Can this motor replace an existing single-phase motor?

Yes. As long as the power output, frame size, shaft dimensions, mounting configuration and operating speed match your existing motor, it is an excellent replacement.

Do you offer Australia-wide shipping?

Yes. Paddle Wholesale offers fast Australia-wide shipping, expert technical support, competitive trade pricing and worldwide delivery on selected products.

• Brand: Techtop
• Model: TML 100L
• Power Output: 1.5kW
• Poles: 6
• Speed: 960 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 100L

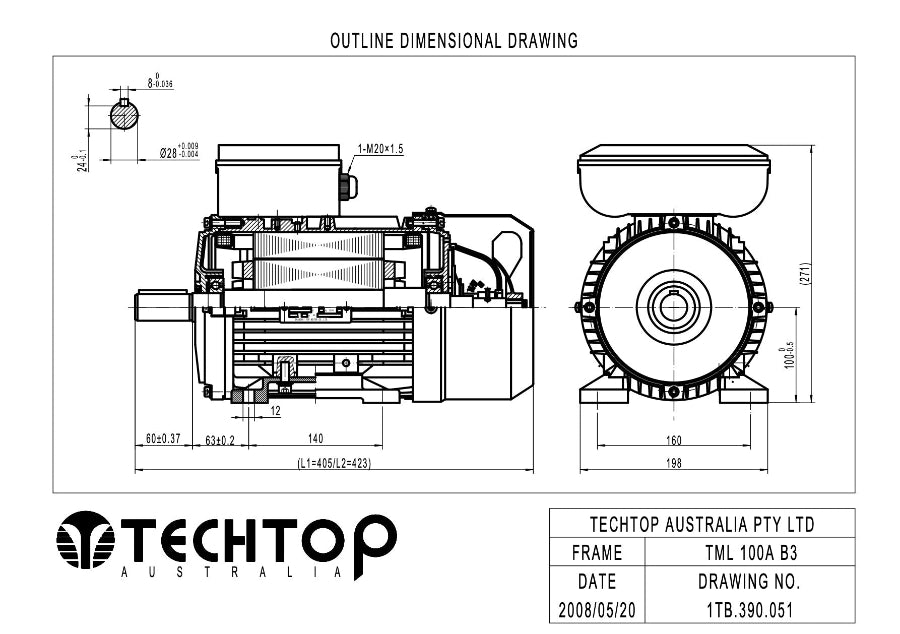

• Mounting: B3 Foot Mount
• Motor Series: TML Capacitor Start / Capacitor Run
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Service Factor: 1.1
• Full Load Current: 8.4A
• Full Load Torque: 14.9Nm
• Efficiency: 77%
• Power Factor: 0.97
• Maximum Slip: 4%
• Noise Level: 66 dB(A)
• Vibration Limit: 1.3mm/sec
• Start Capacitor: 200µF 300V
• Run Capacitor: 45µF 450V
• Bearing Type: NSK 6206ZZ / 6206ZZ C3
• Direction of Rotation: Clockwise (viewed from drive end)
• Colour: RAL 9005 (Jet Black)
• Thermal Protection: Manual Reset Overload
• Motor Weight: 23.8kg
• Approvals: C-Tick, CE
• IEC Standards: IEC 60034 & IEC 60072

• Powerful 1.5kW Output – Designed for demanding industrial and commercial machinery.
• High-Torque 6 Pole Design – Operates at approximately 960 RPM, delivering smooth, controlled power for heavy-duty applications.
• Heavy-Duty 100L Aluminium Frame – Larger frame provides superior strength, cooling and durability.
• Capacitor Start / Capacitor Run (CSCR) – Produces excellent starting torque with smooth continuous operation.
• TEFC Construction – Totally Enclosed Fan Cooled design protects against dust and moisture.
• IP55 Protection – Suitable for demanding industrial, agricultural and workshop environments.
• Premium NSK Bearings – Delivers smooth operation with reduced vibration and extended bearing life.
• Manual Reset Thermal Overload Protection – Helps prevent overheating and protects the motor.
• S1 Continuous Duty Rated – Built for reliable continuous operation.
• Manufactured to IEC Standards – Built to IEC 60034 and IEC 60072 international quality standards.

• Floor preparation machines

• Aluminium gearbox-driven equipment

• Construction, flooring, and workshop machinery

• Custom machinery with single-phase power needs

• Concrete floor grinders

• Conveyors & material handling equipment

• Mixers and agitators

• Fans and compressors
