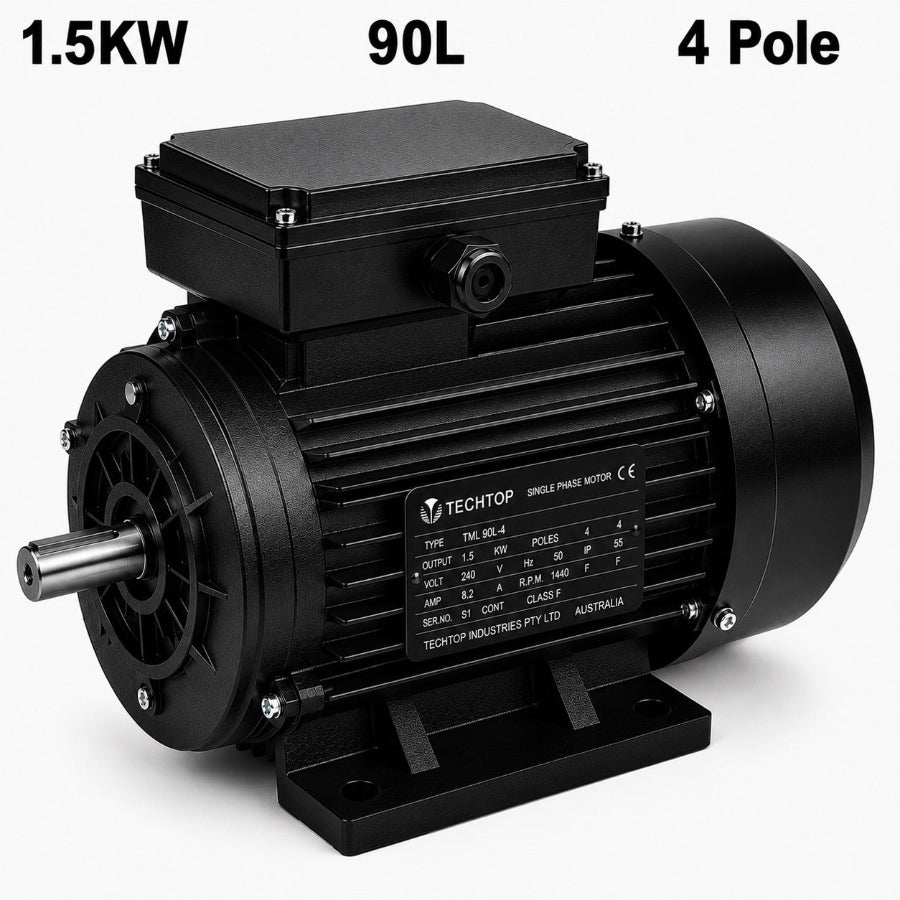

Techtop 1.5kW 4 Pole Single Phase Electric Motor 240V | TML 90L | 1420 RPM

Techtop 1.5kW 4 Pole Single Phase Electric Motor 240V | TML 90L | 1420 RPM

$469.00 AUD
$469.00 AUD
Sale Sold out
Excluding GST
Shipping calculated at checkout.
Australian owned

Australian owned

Fast Dispatch

Fast Dispatch

Worldwide Shipping

Worldwide Shipping

Expert Support

Expert Support

The Techtop TML 90L 1.5kW 4 Pole Single Phase Electric Motor delivers dependable continuous-duty performance for industrial, commercial and agricultural applications. Operating at 1420 RPM, this premium-quality motor features a heavy-duty 90L aluminium frame, Totally Enclosed Fan Cooled (TEFC) construction, IP55 protection and a Capacitor Start / Capacitor Run (CSCR) design for reliable operation and long service life.

Download the 1.5KW 4-pole single-phase electric motor datasheet.

Faqs

  • Powerful 1.5kW Output – Designed for demanding industrial, agricultural and commercial applications.
  • Smooth 4 Pole Performance – Operates at approximately 1420 RPM, providing an ideal balance of torque and speed.
  • Heavy-Duty 90L Aluminium Frame – Built for strength, excellent cooling and long service life.
  • Capacitor Start / Capacitor Run (CSCR) – Delivers high starting torque with smooth continuous operation.
  • TEFC Construction – Totally Enclosed Fan Cooled design protects against dust and moisture.
  • IP55 Protection – Suitable for demanding workshop, industrial and agricultural environments.
  • Premium NSK Bearings – Ensures smooth operation with reduced vibration and extended bearing life.
  • Manual Reset Thermal Overload Protection – Helps protect the motor from overheating.
  • S1 Continuous Duty Rated – Built for reliable continuous operation.
  • Manufactured to IEC Standards – Built to IEC 60034 and IEC 60072 international quality standards.

Specification

  • Brand: Techtop
  • Model: TML 90L
  • Power Output: 1.5kW
  • Poles: 4
  • Speed: 1420 RPM
  • Voltage: 240V Single Phase
  • Frequency: 50Hz
  • Frame Size: 90L
  • Mounting: B3 Foot Mount
  • Motor Series: TML Capacitor Start / Capacitor Run
  • Construction: Aluminium
  • Cooling: Totally Enclosed Fan Cooled (TEFC)
  • Protection Rating: IP55
  • Insulation Class: F (Class B Rise)
  • Duty Rating: S1 Continuous Duty
  • Service Factor: 1.0
  • Full Load Current: 8.7A
  • Full Load Torque: 10.1Nm
  • Efficiency: 76%
  • Power Factor: 0.95
  • Maximum Slip: 5.8%
  • Noise Level: 70 dB(A)
  • Vibration Limit: 1.3mm/sec
  • Start Capacitor: 200µF 300V
  • Run Capacitor: 40µF 450V
  • Bearing Type: NSK 6205ZZ / 6205ZZ C3
  • Direction of Rotation: Clockwise (viewed from drive end)
  • Colour: RAL 9005 (Jet Black)
  • Thermal Protection: Manual Reset Overload
  • Motor Weight: 16.2kg
  • Approvals: C-Tick, CE
  • IEC Standards: IEC 60034 & IEC 60072

Features and benefits

  • Powerful 1.5kW Output – Designed for demanding industrial, agricultural and commercial applications.
  • Smooth 4 Pole Performance – Operates at approximately 1420 RPM, providing an ideal balance of torque and speed.
  • Heavy-Duty 90L Aluminium Frame – Built for strength, excellent cooling and long service life.
  • Capacitor Start / Capacitor Run (CSCR) – Delivers high starting torque with smooth continuous operation.
  • TEFC Construction – Totally Enclosed Fan Cooled design protects against dust and moisture.
  • IP55 Protection – Suitable for demanding workshop, industrial and agricultural environments.
  • Premium NSK Bearings – Ensures smooth operation with reduced vibration and extended bearing life.
  • Manual Reset Thermal Overload Protection – Helps protect the motor from overheating.
  • S1 Continuous Duty Rated – Built for reliable continuous operation.
  • Manufactured to IEC Standards – Built to IEC 60034 and IEC 60072 international quality standards.

SHIPPING & DELIVERY

Domestic Shipping (Australia)

Standard Shipping: 2–4 business days

  • Free standard shipping on eligible orders over $300 Australia-wide
  • Selected products qualify for free shipping regardless of order value
  • Free standard shipping available within Melbourne metro (within 40km of the CBD)

Express Shipping: 1–3 business days

  • Express shipping rates calculated at checkout

International Shipping

Standard International: 7–15 business days
Express International: 3–7 business days

  • Customs duties, taxes, or import fees may apply depending on destination country

Heavy & Oversized Items

  • Free shipping does not apply to heavy or oversized products
  • Shipping is charged separately and calculated at checkout
  • Express shipping is not available for heavy items
What applications is the TML-80A-2 motor suitable for?
The TML-80A-2 is ideal for pumps, compressors, fans, and workshop machinery.
Is this motor suitable for continuous operation?
Yes, it is designed for S1 continuous-duty industrial applications.
What speed does this motor operate at?
It operates at approximately 2800 RPM with a 2 pole configuration.
What type of protection does this motor have?
The motor features IP55 protection and manual reset overload protection.
Can this motor be used as a replacement motor?
Yes, the TML-80A-2 is commonly used as a replacement electric motor.
View full details
Variant Stock Quantity Price Variant total Variant total
B3 - Foot MountSKU: TA4B015·TML B3
B3 - Foot MountSKU: TA4B015·TML B3
$469.00/ea		 Only 2 Left
$469.00/ea $0.00
B5 - Flange MountSKU: TA4B015·TML B5
B5 - Flange MountSKU: TA4B015·TML B5
$469.00/ea		 Only 2 Left
$469.00/ea $0.00
B14 - Face MountSKU: TA4B015·TML B14
B14 - Face MountSKU: TA4B015·TML B14
$469.00/ea		 Only 2 Left
$469.00/ea $0.00
B34 - Foot & Face MountSKU: TA4B015·TML B34
B34 - Foot & Face MountSKU: TA4B015·TML B34
$469.00/ea		 Only 2 Left
$469.00/ea $0.00
B35 - Foot & Flange MountSKU: TA4B015·TML B35
B35 - Foot & Flange MountSKU: TA4B015·TML B35
$469.00/ea		 Only 2 Left
$469.00/ea $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart
The Techtop TML 90L 1.5kW 4 Pole Single Phase Electric Motor is engineered to provide reliable performance for demanding industrial, commercial and agricultural applications requiring smooth, efficient operation at approximately 1420 RPM. Designed for continuous-duty service, this premium-quality electric motor combines a robust 90L aluminium frame, Totally Enclosed Fan Cooled (TEFC) construction and an IP55 protection rating to ensure dependable operation in dusty, damp and demanding environments. Built with a Capacitor Start / Capacitor Run (CSCR) design, the TML 90L delivers excellent starting torque, smooth acceleration and efficient running performance under load. Premium NSK bearings, Class F insulation with Class B temperature rise and an integrated manual reset thermal overload protector help maximise reliability while reducing maintenance and downtime. The larger 90L frame provides increased durability, improved cooling and enhanced stability, making it an excellent choice for industrial equipment operating continuously under demanding conditions. The 1.5kW 4 Pole Techtop TML 90L is ideal for powering:
  • Water pumps
  • Air compressors
  • Conveyor systems
  • Industrial fans
  • Agricultural machinery
  • Workshop equipment
  • Food processing equipment
  • General industrial machinery
Operating from a standard 240V single-phase power supply, this motor is an excellent replacement where three-phase power is unavailable. Its 1420 RPM operating speed provides an excellent balance between torque and speed, making it one of the most versatile motor configurations available. Manufactured to IEC 60034 and IEC 60072 international standards, every Techtop motor is designed for dependable performance in demanding Australian conditions. The TEFC enclosure protects internal components from dust and moisture, while the IP55 protection rating ensures reliable operation in harsh environments. Need replacement capacitors? Browse our complete range of Motor Start Capacitors and Motor Run Capacitors to keep your motor operating at peak performance. Looking for a different power output, frame size or operating speed? Explore our complete range of Single Phase Electric Motors, available in multiple power ratings, frame sizes and RPM options to suit almost any industrial, commercial or agricultural application. Whether you're replacing an existing motor, upgrading machinery or specifying a motor for a new installation, Paddle Wholesale supplies genuine Techtop electric motors backed by expert technical support, competitive trade pricing, fast Australia-wide shipping and worldwide delivery.
