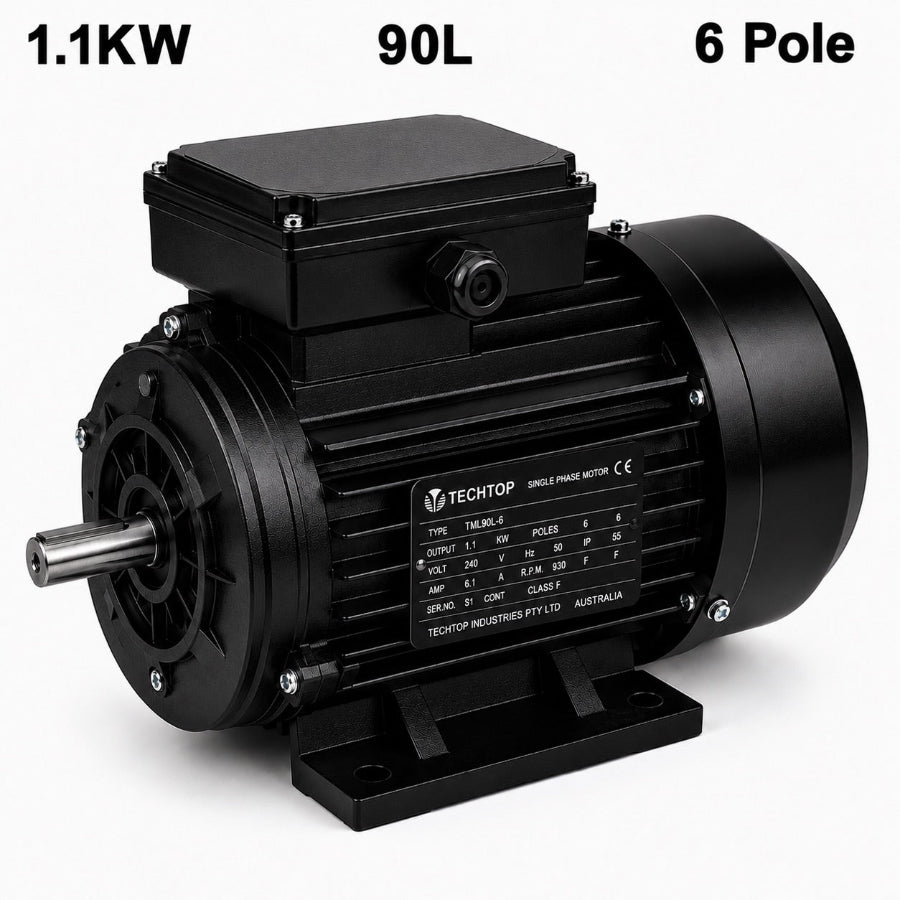

Techtop 1.1kW 6 Pole Single Phase Electric Motor 240V | TML 90L | 945 RPM

What is the Techtop TML 90L 1.1kW 6 Pole motor commonly used for?

This motor is ideal for conveyors, gearboxes, mixers, industrial pumps, agricultural machinery, food processing equipment and other applications requiring high torque at lower operating speeds.

What speed does this motor operate at?

The motor operates at approximately 945 RPM under full load. Its 6 pole design provides higher torque and smoother operation than higher-speed motors.

Does this motor require a 240V power supply?

Yes. The motor is designed to operate from a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

The motor features a Capacitor Start / Capacitor Run (CSCR) design, delivering high starting torque and smooth running performance.

Does this motor include thermal overload protection?

Yes. It includes a manual reset thermal overload protector to help prevent overheating and protect the motor.

What capacitors does this motor use?

This motor uses a 200µF 250V start capacitor and a 45µF 450V run capacitor. Paddle Wholesale stocks replacement start and run capacitors.

Can this motor replace an existing single-phase motor?

Yes. As long as the power output, frame size, shaft dimensions, mounting configuration and operating speed match your existing motor, it is an excellent replacement.

Why choose a 6 pole motor?

A 6 pole motor produces lower operating speed with higher torque, making it ideal for machinery requiring smooth power delivery and controlled operation.

Do you offer Australia-wide shipping?

Yes. Paddle Wholesale offers fast Australia-wide shipping, competitive trade pricing and worldwide delivery on selected products.

• Brand: Techtop
• Model: TML 90L
• Power Output: 1.1kW
• Poles: 6
• Speed: 945 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 90L
• Mounting: B3 Foot Mount
• Motor Series: TML Capacitor Start / Capacitor Run
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Full Load Current: 6.36A
• Full Load Torque: 11.1Nm
• Efficiency: 74.2%
• Power Factor: 0.97
• Noise Level: 60 dB(A)
• Start Capacitor: 200µF 250V
• Run Capacitor: 45µF 450V
• Bearing Type: NSK 6205ZZ / 6205ZZ C3
• Thermal Protection: Manual Reset Overload
• Motor Weight: 17.3kg
• IEC Standards: IEC 60034 & IEC 60072

• Powerful 1.1kW Output – Designed for demanding industrial, agricultural and commercial machinery.
• High-Torque 6 Pole Design – Operates at approximately 945 RPM for smooth, controlled power delivery.
• Heavy-Duty 90L Aluminium Frame – Provides exceptional durability, stability and heat dissipation.
• Capacitor Start / Capacitor Run (CSCR) – Delivers excellent starting torque with smooth continuous operation.
• TEFC Construction – Totally Enclosed Fan Cooled design protects against dust and moisture.
• IP55 Protection – Suitable for demanding industrial, agricultural and workshop environments.
• Premium NSK Bearings – Reduces vibration while extending service life.
• Manual Reset Thermal Overload Protection – Protects the motor against overheating.
• S1 Continuous Duty Rated – Built for continuous industrial operation.
• Built to IEC Standards – Manufactured to IEC 60034 and IEC 60072 international standards.
