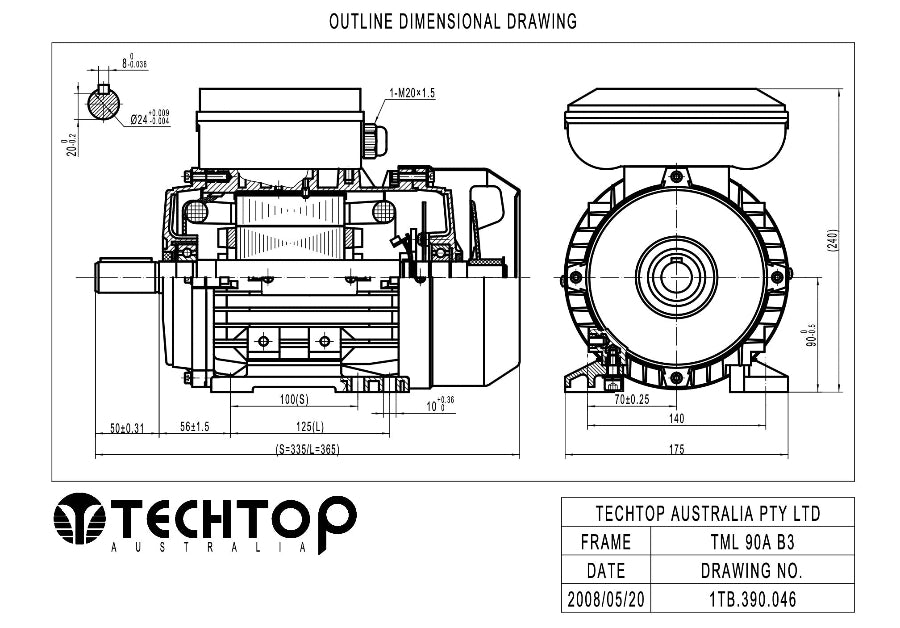

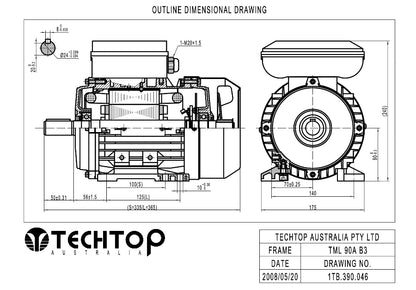

  • Techtop TML 90 B3 outline dimensional drawing showing shaft, mounting and overall dimensions

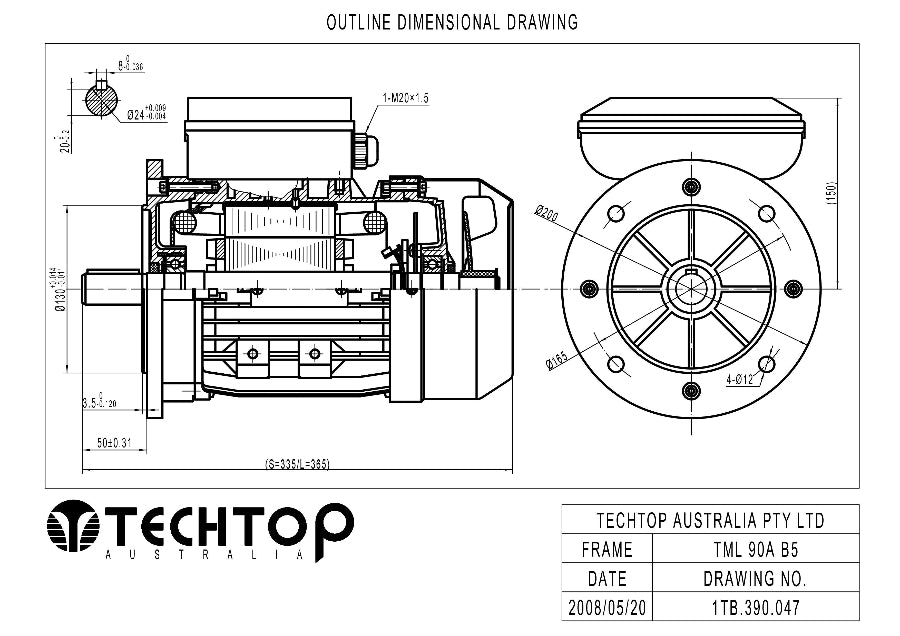

  • Techtop TML 90 B5 flange mount outline dimensional drawing showing shaft, flange and mounting dimensions

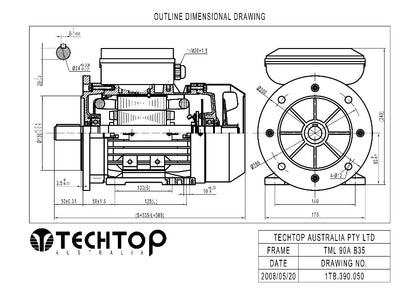

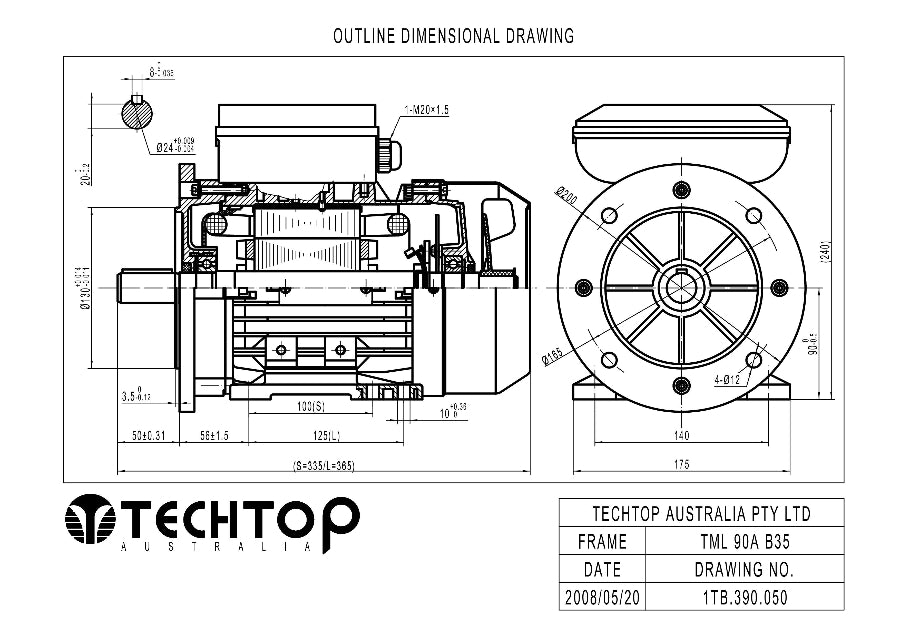

  • Techtop TML 90 B35 foot and flange mount outline dimensional drawing showing shaft, flange and overall dimensions

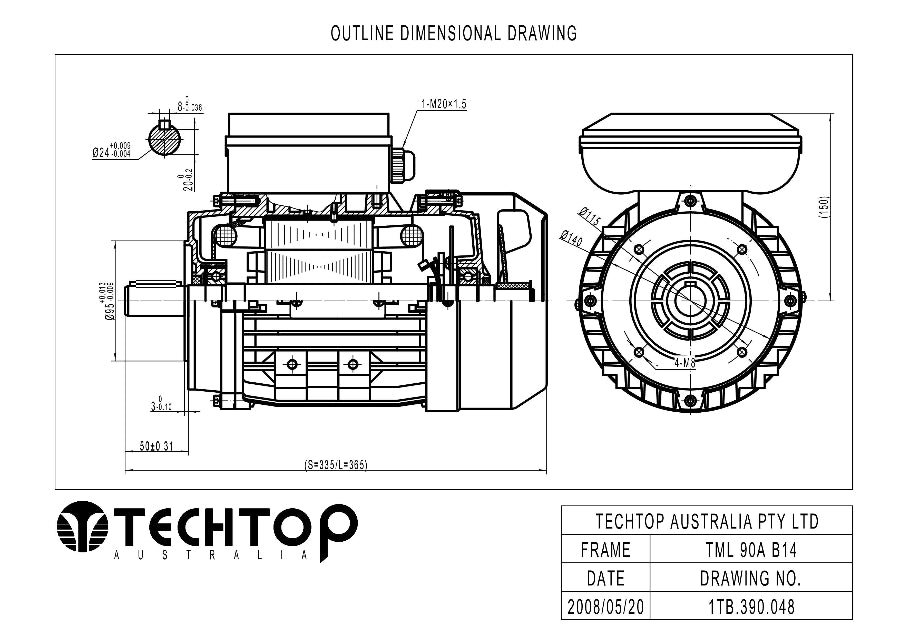

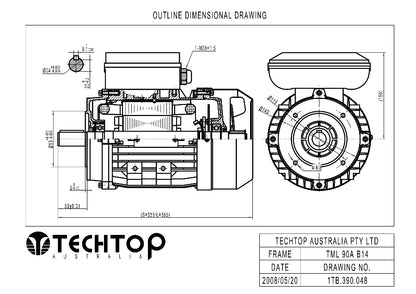

  • Techtop TML 90 B14 face mount outline dimensional drawing showing shaft, face mounting and overall dimensions

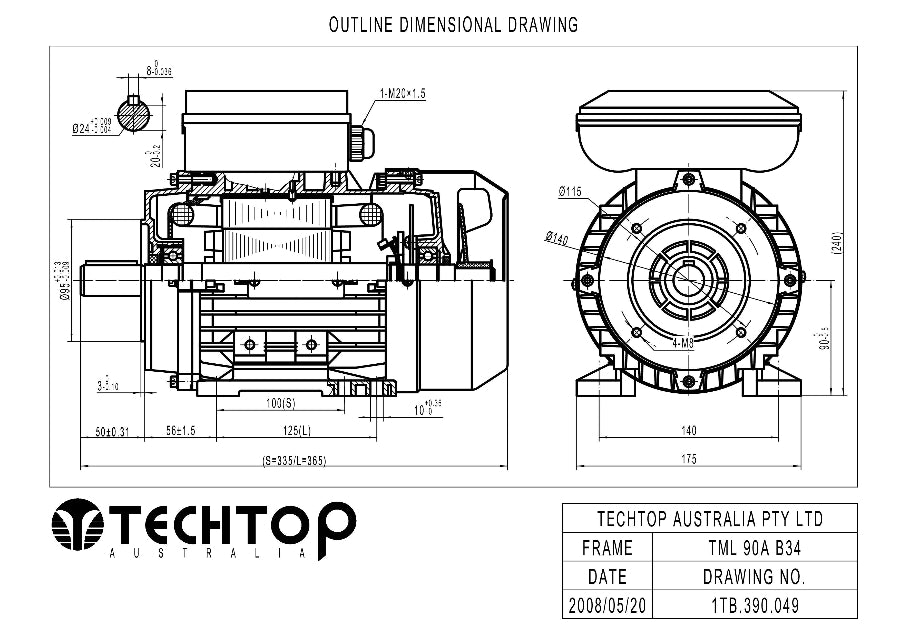

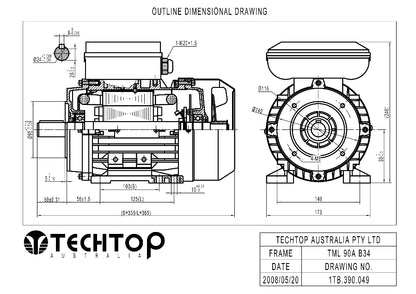

  • Techtop TML 90 B34 foot and face mount outline dimensional drawing showing shaft, mounting and overall dimensions
1 6

● Only 2 Left – Order Soon

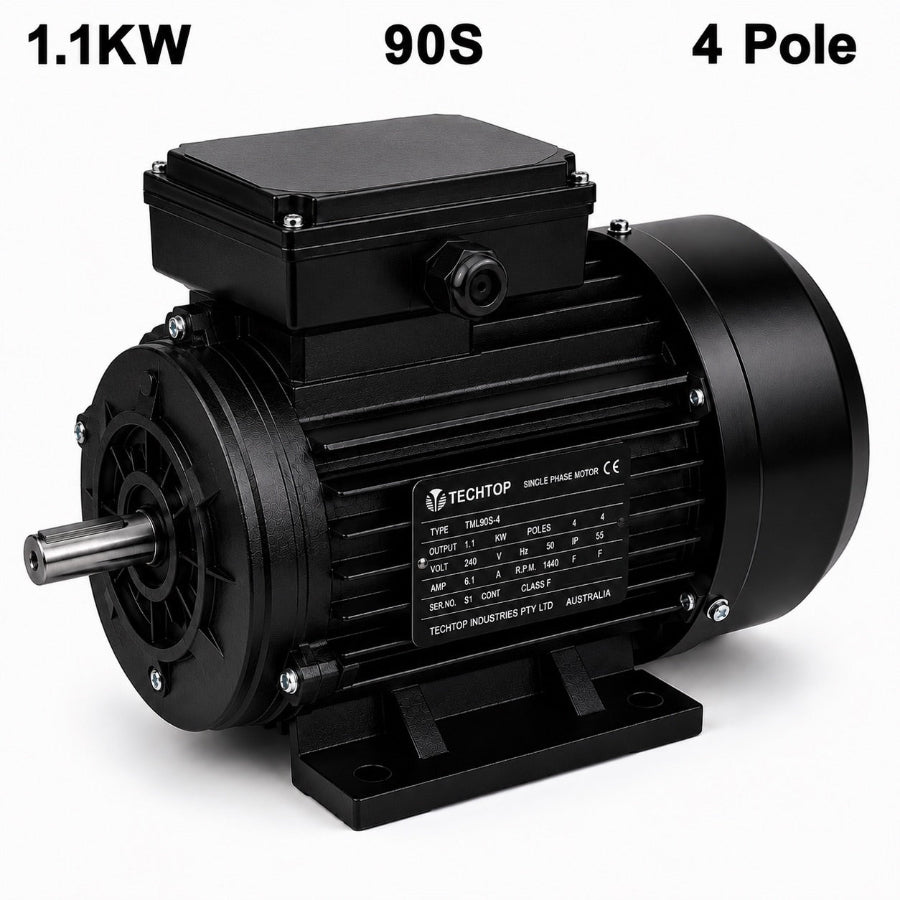

Techtop 1.1kW 4 Pole Single Phase Electric Motor 240V | TML 90S | 1410 RPM

Techtop 1.1kW 4 Pole Single Phase Electric Motor 240V | TML 90S | 1410 RPM

$389.00 AUD
$389.00 AUD
Sale Sold out
Excluding GST
Shipping calculated at checkout.
Australian owned

Australian owned

Fast Dispatch

Fast Dispatch

Worldwide Shipping

Worldwide Shipping

Expert Support

Expert Support

The Techtop TML 90S 1.1kW 4 Pole Single Phase Electric Motor is engineered for reliable continuous-duty performance in industrial, commercial and agricultural applications. Operating at 1410 RPM, this premium-quality motor features a heavy-duty 90S aluminium frame, TEFC construction, IP55 protection and a Capacitor Start / Capacitor Run (CSCR) design for dependable operation and long service life.

Download the 1.1KW 4-pole single-phase electric motor datasheet.

Faqs

  • Powerful 1.1kW Output – Delivers reliable performance for industrial, agricultural and commercial machinery.
  • Smooth 4 Pole Operation – Operates at approximately 1410 RPM, providing excellent torque and efficient operation.
  • Heavy-Duty 90S Aluminium Frame – Built for strength, durability and improved heat dissipation.
  • Capacitor Start / Capacitor Run (CSCR) – Provides high starting torque with smooth running performance.
  • TEFC Construction – Totally Enclosed Fan Cooled design protects against dust and moisture.
  • IP55 Protection – Suitable for demanding workshop, industrial and agricultural environments.
  • Premium NSK Bearings – Ensures smooth operation with reduced vibration and extended service life.
  • Manual Reset Thermal Overload Protection – Protects the motor against overheating.
  • S1 Continuous Duty Rated – Designed for reliable continuous operation.
  • Built to IEC Standards – Manufactured to IEC 60034 and IEC 60072 international standards.

Specification

  • Brand: Techtop
  • Model: TML 90S
  • Power Output: 1.1kW
  • Poles: 4
  • Speed: 1410 RPM
  • Voltage: 240V Single Phase
  • Frequency: 50Hz
  • Frame Size: 90S
  • Mounting: B14A
  • Motor Series: TML Capacitor Start / Capacitor Run
  • Construction: Aluminium
  • Cooling: Totally Enclosed Fan Cooled (TEFC)
  • Protection Rating: IP55
  • Insulation Class: F (Class B Rise)
  • Duty Rating: S1 Continuous Duty
  • Service Factor: 1.1
  • Full Load Current: 6.5A
  • Full Load Torque: 7.5Nm
  • Efficiency: 75%
  • Power Factor: 0.95
  • Noise Level: 60 dB(A)
  • Start Capacitor: 150µF 250V
  • Run Capacitor: 35µF 450V
  • Bearing Type: NSK 6205ZZ / 6205ZZ C3
  • Direction of Rotation: Anti-clockwise (viewed from drive end)
  • Colour: RAL 7024 (Graphite Grey)
  • Thermal Protection: Manual Reset Overload
  • Motor Weight: 13.5kg
  • Approvals: C-Tick, CE
  • IEC Standards: IEC 60034 & IEC 60072

Features and benefits

  • Powerful 1.1kW Output – Delivers reliable performance for industrial, agricultural and commercial machinery.
  • Smooth 4 Pole Operation – Operates at approximately 1410 RPM, providing excellent torque and efficient operation.
  • Heavy-Duty 90S Aluminium Frame – Built for strength, durability and improved heat dissipation.
  • Capacitor Start / Capacitor Run (CSCR) – Provides high starting torque with smooth running performance.
  • TEFC Construction – Totally Enclosed Fan Cooled design protects against dust and moisture.
  • IP55 Protection – Suitable for demanding workshop, industrial and agricultural environments.
  • Premium NSK Bearings – Ensures smooth operation with reduced vibration and extended service life.
  • Manual Reset Thermal Overload Protection – Protects the motor against overheating.
  • S1 Continuous Duty Rated – Designed for reliable continuous operation.
  • Built to IEC Standards – Manufactured to IEC 60034 and IEC 60072 international standards.

SHIPPING & DELIVERY

Domestic Shipping (Australia)

Standard Shipping: 2–4 business days

  • Free standard shipping on eligible orders over $300 Australia-wide
  • Selected products qualify for free shipping regardless of order value
  • Free standard shipping available within Melbourne metro (within 40km of the CBD)

Express Shipping: 1–3 business days

  • Express shipping rates calculated at checkout

International Shipping

Standard International: 7–15 business days
Express International: 3–7 business days

  • Customs duties, taxes, or import fees may apply depending on destination country

Heavy & Oversized Items

  • Free shipping does not apply to heavy or oversized products
  • Shipping is charged separately and calculated at checkout
  • Express shipping is not available for heavy items
What applications is the TML-80A-2 motor suitable for?
The TML-80A-2 is ideal for pumps, compressors, fans, and workshop machinery.
Is this motor suitable for continuous operation?
Yes, it is designed for S1 continuous-duty industrial applications.
What speed does this motor operate at?
It operates at approximately 2800 RPM with a 2 pole configuration.
What type of protection does this motor have?
The motor features IP55 protection and manual reset overload protection.
Can this motor be used as a replacement motor?
Yes, the TML-80A-2 is commonly used as a replacement electric motor.
View full details
Variant Stock Quantity Price Variant total Variant total
B3 - Foot MountSKU: TA4A011·TML B3
B3 - Foot MountSKU: TA4A011·TML B3
$389.00/ea		 Only 2 Left
$389.00/ea $0.00
B5 - Flange MountSKU: TA4A011·TML B5
B5 - Flange MountSKU: TA4A011·TML B5
$389.00/ea		 Only 2 Left
$389.00/ea $0.00
B14 - Face MountSKU: TA4A011·TML B14
B14 - Face MountSKU: TA4A011·TML B14
$389.00/ea		 Only 2 Left
$389.00/ea $0.00
B34 - Foot & Face MountSKU: TA4B011·TML B34
B34 - Foot & Face MountSKU: TA4B011·TML B34
$389.00/ea		 Only 2 Left
$389.00/ea $0.00
B35 - Foot & Flange MountSKU: TA4A011·TML B35
B35 - Foot & Flange MountSKU: TA4A011·TML B35
$389.00/ea		 Only 2 Left
$389.00/ea $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart
The Techtop TML 90S 1.1kW 4 Pole Single Phase Electric Motor is designed to deliver dependable performance for demanding industrial, commercial and agricultural applications requiring smooth operation at approximately 1410 RPM. Built for continuous-duty service, this premium-quality electric motor features a robust 90S aluminium frame, Totally Enclosed Fan Cooled (TEFC) construction and an IP55 protection rating to provide reliable operation in dusty, damp and demanding environments. Featuring a Capacitor Start / Capacitor Run (CSCR) design, the TML 90S delivers excellent starting torque, smooth acceleration and efficient performance under load. Premium NSK bearings, Class F insulation with Class B temperature rise and an integrated manual reset thermal overload protector help maximise reliability, reduce maintenance and extend the motor's service life. The larger 90S frame offers improved durability, excellent heat dissipation and increased strength, making it ideal for industrial equipment operating continuously in demanding conditions. The 1.1kW 4 Pole Techtop TML 90S is ideal for driving:
  • Water pumps
  • Air compressors
  • Conveyor systems
  • Ventilation fans
  • Agricultural machinery
  • Workshop equipment
  • Food processing equipment
  • General industrial machinery
Operating from a standard 240V single-phase power supply, this motor is an excellent replacement for worn or failed motors where reliable torque and smooth running performance are essential. Its 1410 RPM operating speed makes it suitable for a wide range of industrial and commercial machinery. Manufactured to IEC 60034 and IEC 60072 international standards, every Techtop motor is built for dependable performance in demanding Australian conditions. The TEFC enclosure protects internal components from dust and moisture, while the IP55 protection rating provides reliable operation in harsh environments. Need replacement capacitors? Browse our complete range of Motor Start Capacitors and Motor Run Capacitors to keep your motor operating at peak performance. Looking for a different power output, frame size or operating speed? Explore our complete range of Single Phase Electric Motors, available in multiple power ratings, frame sizes and RPM options to suit almost any industrial, commercial or agricultural application. Whether you're replacing an existing motor, upgrading machinery or specifying a motor for a new installation, Paddle Wholesale supplies genuine Techtop electric motors backed by expert technical advice, competitive trade pricing, fast Australia-wide shipping and worldwide delivery, helping you keep your equipment operating with confidence.
