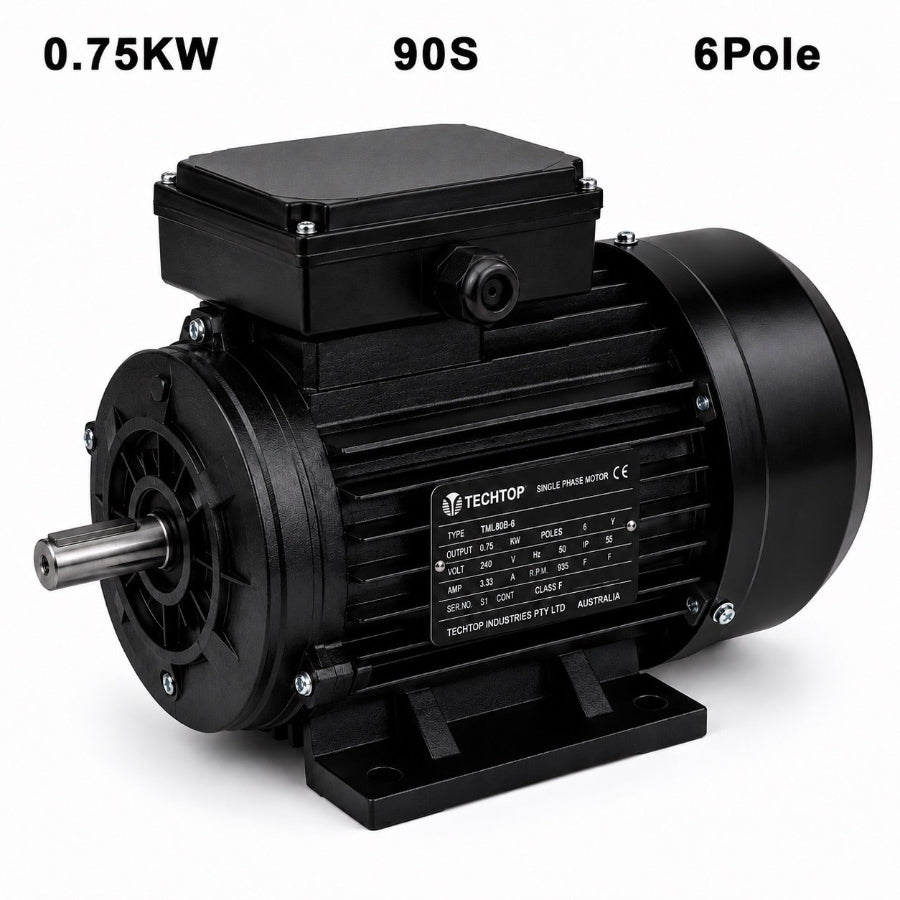

Techtop 0.75kW 6 Pole Single Phase Electric Motor 240V | TML 90S | 945 RPM

What is the Techtop TML 90S 0.75kW 6 Pole motor commonly used for?

This motor is ideal for conveyor systems, gearboxes, industrial pumps, agricultural machinery, food processing equipment, workshop machinery, mixers and other applications requiring reliable low-speed, high-torque performance.

What speed does this motor operate at?

The motor operates at approximately 945 RPM under full load. Its 6 pole design provides higher torque and smoother operation than higher-speed motors, making it ideal for applications where controlled speed is essential.

Does this motor require a 240V power supply?

Yes. The TML 90S is designed to operate on a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

This motor features a Capacitor Start / Capacitor Run (CSCR) design, providing excellent starting torque, smooth acceleration and reliable continuous operation.

Does this motor include thermal overload protection?

Yes. The motor is fitted with an integrated manual reset thermal overload protector to help protect against overheating and extend the motor's service life.

What capacitors does this motor use?

The motor uses a 150µF 250V start capacitor and a 30µF 450V run capacitor. Paddle Wholesale stocks both replacement Motor Start Capacitors and Motor Run Capacitors.

What is the advantage of a 6 pole motor?

A 6 pole motor operates at a lower speed while producing higher torque, making it ideal for conveyors, gearboxes, mixers, pumps and machinery requiring smooth, controlled power delivery.

Can this motor replace an existing single-phase motor?

Yes. As long as the power output, frame size, shaft dimensions, mounting configuration and operating speed match your existing motor, it is an excellent replacement for worn or failed single-phase motors.

Is the 90S frame suitable for heavy-duty industrial applications?

Yes. The larger 90S frame provides increased strength, improved heat dissipation and enhanced durability, making it ideal for continuous-duty industrial, commercial and agricultural equipment.

Do you offer Australia-wide shipping?

Yes. Paddle Wholesale offers fast Australia-wide shipping, competitive trade pricing and worldwide delivery on selected products.

• Brand: Techtop
• Model: TML 90S
• Power Output: 0.75kW
• Poles: 6
• Speed: 945 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 90S
• Motor Series: TML Capacitor Start / Capacitor Run
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Full Load Current: 4.55A
• Full Load Torque: 7.58Nm
• Efficiency: 71%
• Power Factor: 0.97
• Noise Level: 58 dB(A)
• Start Capacitor: 150µF 250V
• Run Capacitor: 30µF 450V
• Bearing Type: NSK 6205ZZ / 6205ZZ C3
• Thermal Protection: Manual Reset Overload
• Motor Weight: 13.7kg
• IEC Standards: IEC 60034 & IEC 60072

• Reliable 0.75kW Output – Delivers dependable power for demanding industrial, commercial and agricultural applications.
• 6 Pole High-Torque Design – Operates at approximately 945 RPM, providing smooth, controlled performance where higher torque is required.
• Heavy-Duty 90S Frame – Larger aluminium frame offers increased strength, improved cooling and long service life.
• Capacitor Start / Capacitor Run (CSCR) – Delivers excellent starting torque with smooth acceleration and efficient operation.
• TEFC Construction – Totally Enclosed Fan Cooled design protects the motor against dust, dirt and moisture.
• IP55 Protection – Suitable for demanding workshop, industrial and agricultural environments.
• Premium NSK Bearings – Ensures smooth operation, reduced vibration and extended bearing life.
• Manual Reset Thermal Overload Protection – Helps prevent overheating and protects the motor from damage.
• S1 Continuous Duty Rated – Designed for continuous operation in demanding applications.
• Built to IEC Standards – Manufactured to IEC 60034 and IEC 60072 international standards for quality and reliability.
