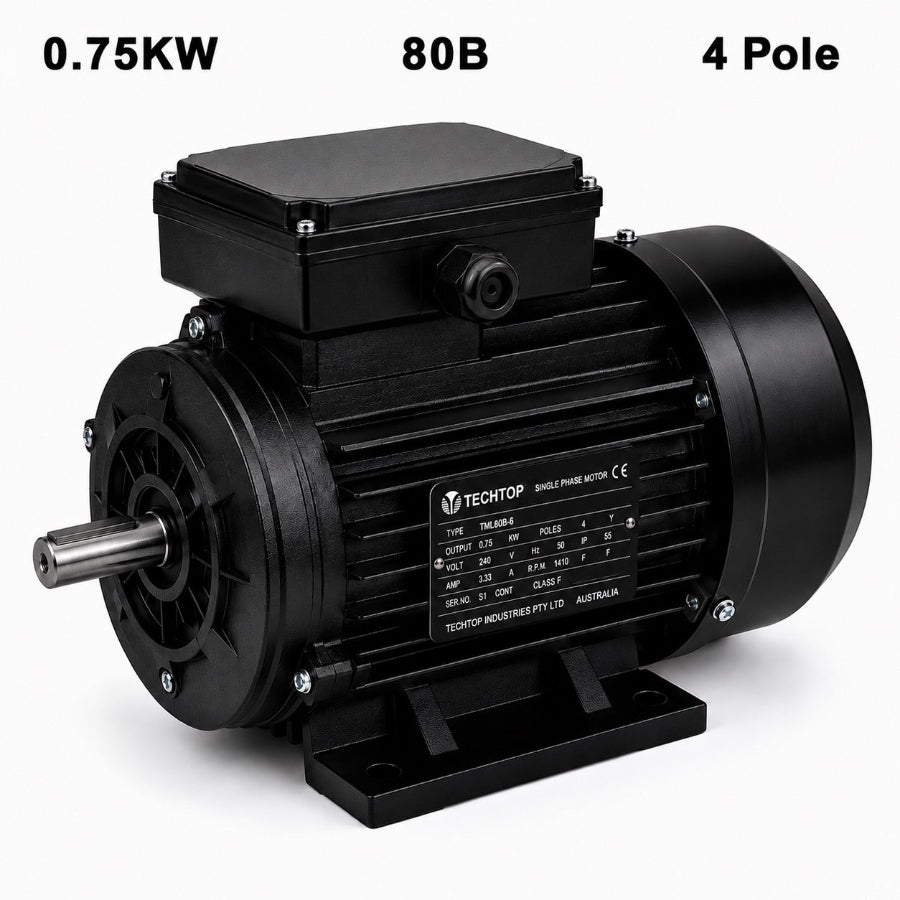

Techtop 0.75kW 4 Pole Single Phase Electric Motor 240V | TML 80B | 1410 RPM

Frequently Asked Questions

What is the Techtop TML 80B 0.75kW 4 Pole motor commonly used for?

This motor is ideal for water pumps, compressors, conveyor systems, agricultural machinery, workshop equipment, food processing equipment and other industrial applications requiring reliable 1410 RPM operation.

What speed does this motor operate at?

The motor operates at approximately 1410 RPM under full load, making it suitable for applications requiring dependable torque and smooth operation.

Does this motor require a 240V power supply?

Yes. It operates on a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

The motor features a Capacitor Start / Capacitor Run (CSCR) design, providing excellent starting torque and efficient continuous operation.

Does this motor include thermal overload protection?

Yes. It includes an integrated manual reset thermal overload protector to help prevent overheating.

What capacitors does this motor use?

This motor uses a 120µF 250V start capacitor and a 25µF 450V run capacitor.

Can this motor replace an existing single-phase motor?

Yes. As long as the power output, frame size, shaft dimensions and mounting configuration match your existing motor, it is an excellent replacement.

Can I use the 80A dimensional drawing for the TML 80B motor?

Yes. Techtop advises that the TML 80A dimensional drawing can be used as the installation reference for the TML 80B motor, as the differences between the two frames are minor.

Do you offer Australia-wide shipping?

Yes. Paddle Wholesale offers fast Australia-wide shipping, competitive trade pricing and worldwide delivery on selected products.

• Brand: Techtop
• Model: TML 80B
• Power Output: 0.75kW
• Poles: 4
• Speed: 1410 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 80B
• Motor Series: TML Capacitor Start / Capacitor Run
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Full Load Current: 4.5A
• Full Load Torque: 5.1Nm
• Efficiency: 73%
• Power Factor: 0.94
• Noise Level: 60 dB(A)
• Start Capacitor: 120µF 250V
• Run Capacitor: 25µF 450V
• Bearing Type: NSK 6204ZZ / 6204ZZ C3
• Thermal Protection: Manual Reset Overload
• Motor Weight: 9.0kg
• IEC Standards: IEC 60034 & IEC 60072

• Reliable 0.75kW Output – Provides dependable power for industrial, commercial and agricultural machinery.
• Smooth 4 Pole Performance – Operates at approximately 1410 RPM, making it ideal for pumps, conveyors, compressors and workshop equipment.
• Heavy-Duty 80B Frame – Robust aluminium frame offers increased durability and excellent heat dissipation.
• Capacitor Start / Capacitor Run (CSCR) – Delivers high starting torque with smooth, efficient operation.
• TEFC Construction – Totally Enclosed Fan Cooled design protects the motor from dust and moisture.
• IP55 Protection – Suitable for demanding workshop, industrial and agricultural environments.
• Premium NSK Bearings – Ensures smooth operation, reduced vibration and long service life.
• Manual Reset Thermal Overload Protection – Protects the motor against overheating and damage.
• S1 Continuous Duty Rated – Designed for continuous operation in demanding applications.
• Built to IEC Standards – Manufactured to IEC 60034 and IEC 60072 international standards.
