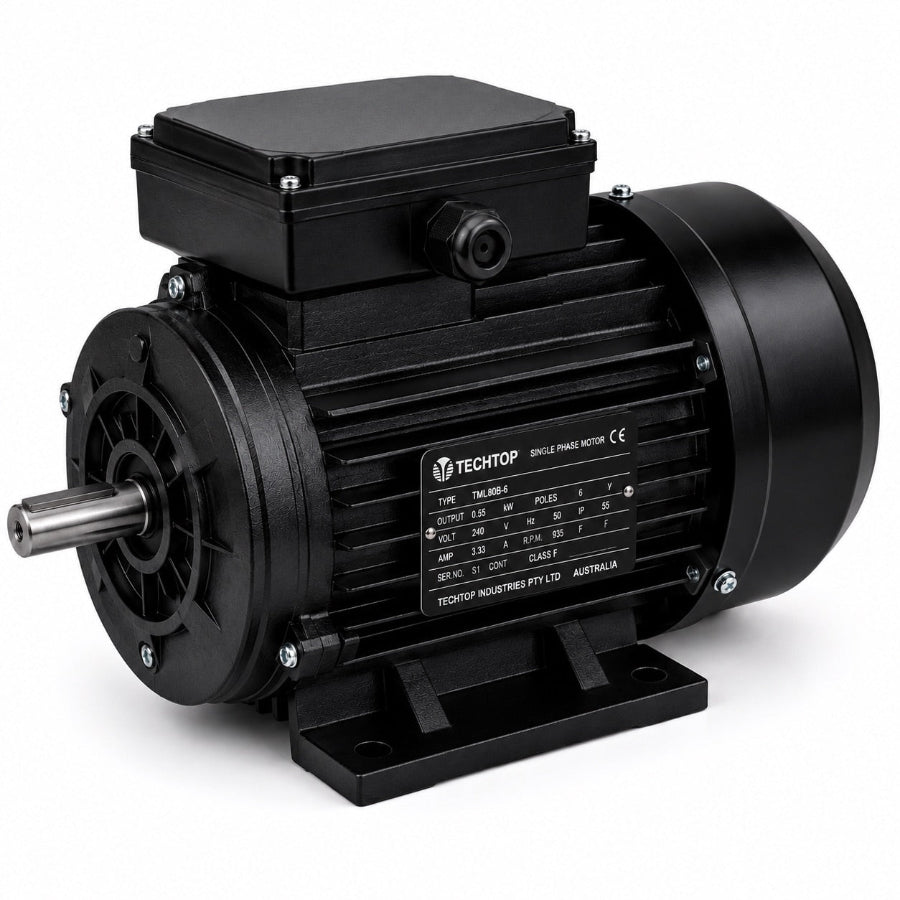

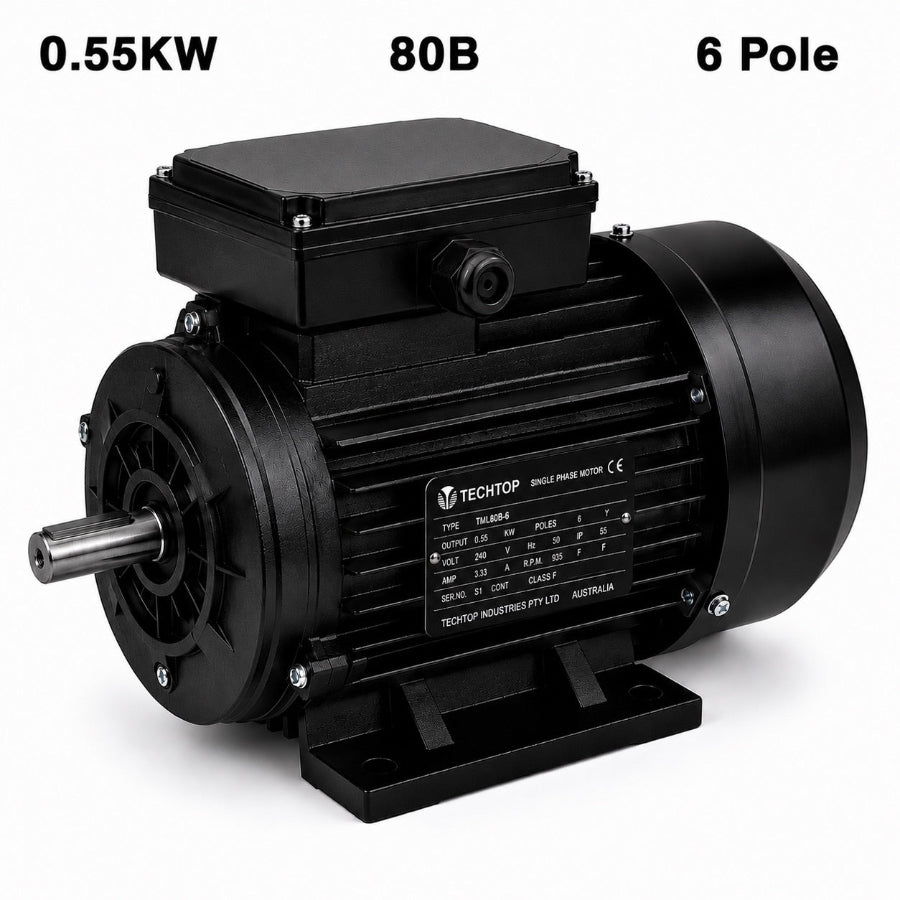

Techtop 0.55kW 6 Pole Single Phase Electric Motor 240V | TML 80B | 935 RPM

What is the Techtop TML 80B 0.55kW 6 Pole motor commonly used for?

This motor is ideal for conveyor systems, gearboxes, industrial pumps, agricultural machinery, food processing equipment, workshop machinery and other applications requiring reliable low-speed, high-torque performance.

What speed does this motor operate at?

The motor operates at approximately 935 RPM under full load. Its 6 pole design provides higher torque and smoother operation than higher-speed motors, making it ideal for applications where controlled speed is required.

Does this motor require a 240V power supply?

Yes. The TML 80B operates on a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

This motor features a Capacitor Start / Capacitor Run (CSCR) design, providing excellent starting torque, smooth acceleration and reliable continuous operation.

Does this motor include thermal overload protection?

Yes. The motor is fitted with an integrated manual reset thermal overload protector to help protect against overheating and extend the motor's service life.

What capacitors does this motor use?

The motor uses a 75µF 250V start capacitor and a 20µF 450V run capacitor. Paddle Wholesale stocks both replacement Motor Start Capacitors and Motor Run Capacitors.

What is the advantage of a 6 pole motor?

A 6 pole motor operates at a lower speed while producing higher torque, making it ideal for conveyors, mixers, pumps, gearboxes and other machinery requiring smooth, controlled power delivery.

Can this motor replace an existing single-phase motor?

Yes. As long as the power output, frame size, shaft dimensions, mounting configuration and operating speed match your existing motor, it is an excellent replacement for worn or failed single-phase motors.

Can I use the 80A dimensional drawing for the TML 80B motor?

Yes. Techtop advises that the TML 80A dimensional drawing can be used as the installation reference for the TML 80B motor. The differences between the 80A and 80B frames are minor, with the mounting dimensions and shaft dimensions remaining compatible for installation purposes.

Do you offer Australia-wide shipping?

Yes. Paddle Wholesale offers fast Australia-wide shipping, competitive trade pricing and worldwide delivery on selected products.

• Brand: Techtop
• Model: TML 80B
• Power Output: 0.55kW
• Poles: 6
• Speed: 935 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 80B
• Motor Series: TML Capacitor Start / Capacitor Run
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Full Load Current: 3.33A
• Full Load Torque: 5.62Nm
• Efficiency: 71%
• Power Factor: 0.97
• Start Capacitor: 75µF 250V
• Run Capacitor: 20µF 450V
• Shaft Diameter: 19mm
• Motor Weight: 10.8kg
• Thermal Protection: Manual Reset Overload
• IEC Standards: IEC 60034 & IEC 60072

• Reliable 0.55kW Output – Designed for industrial, commercial and agricultural applications requiring dependable low-speed performance.
• 6 Pole Low-Speed Operation – Operates at approximately 935 RPM, providing higher torque and smooth power delivery.
• Heavy-Duty 80B Frame – Larger aluminium frame offers improved strength, durability and heat dissipation.
• Capacitor Start / Capacitor Run (CSCR) – Delivers excellent starting torque with smooth and efficient running performance.
• TEFC Construction – Totally Enclosed Fan Cooled design protects the motor against dust and moisture.
• IP55 Protection – Suitable for demanding workshop, industrial and agricultural environments.
• Premium NSK Bearings – Ensures smooth operation with reduced vibration and extended service life.
• Manual Reset Thermal Overload Protection – Helps protect the motor against overheating.
• S1 Continuous Duty Rated – Designed for reliable continuous operation.
• Manufactured to IEC Standards – Built to international quality standards for long-term reliability.
