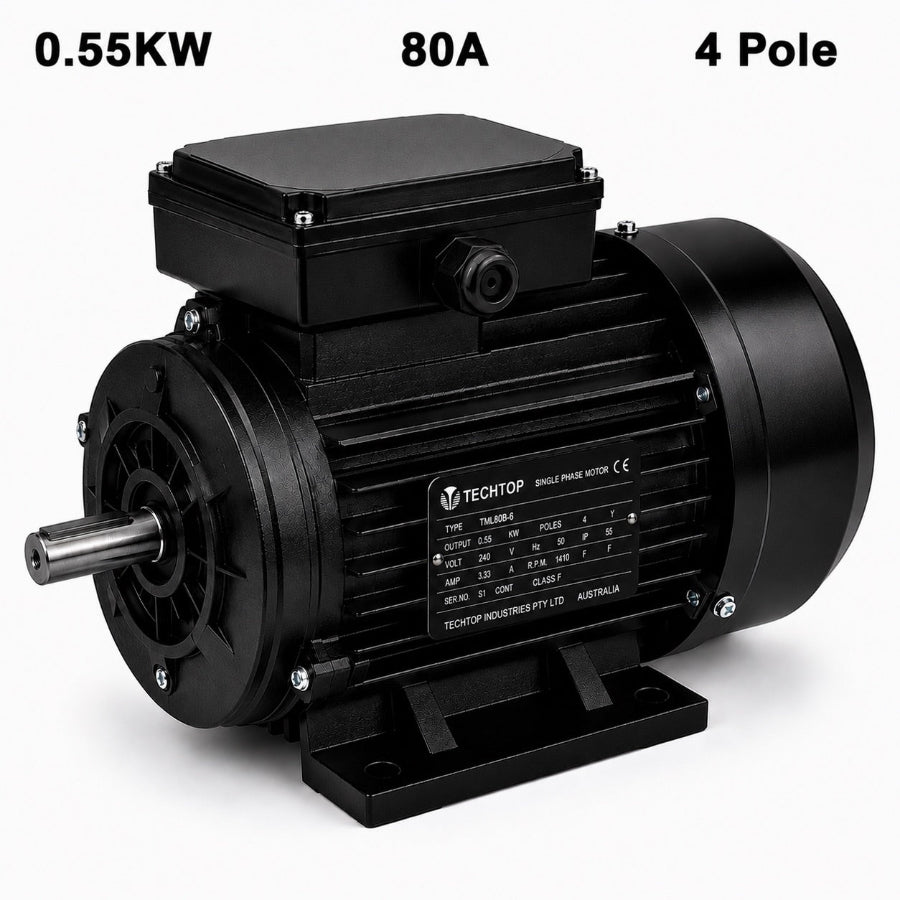

Techtop 0.55kW 4 Pole Single Phase Electric Motor 240V | TML 80A | 1420 RPM

Frequently Asked Questions

What is the Techtop TML 80A 0.55kW motor commonly used for?

This motor is ideal for pumps, compressors, conveyor systems, fans, agricultural machinery, workshop equipment and a wide range of industrial applications requiring reliable 1420 RPM operation.

What speed does this motor operate at?

The motor operates at approximately 1420 RPM under full load.

Does this motor require a 240V power supply?

Yes. The motor is designed to operate on a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

It features a Capacitor Start / Capacitor Run (CSCR) design for high starting torque, smooth acceleration and reliable running performance.

Does this motor include thermal overload protection?

Yes. It is fitted with an integrated manual reset thermal overload protector to help prevent overheating.

What capacitors does this motor use?

The motor uses a 75µF 250V start capacitor and a 20µF 450V run capacitor.

Can this motor replace an existing single-phase motor?

Yes. As long as the power output, frame size, shaft dimensions and mounting configuration match your existing motor, it is an excellent replacement option.

What is the advantage of the larger 80A frame?

The larger frame provides increased durability, improved heat dissipation and greater stability, making it well suited to demanding industrial and commercial applications.

Do you stock replacement capacitors?

Yes. Paddle Wholesale stocks a wide range of motor start capacitors and motor run capacitors suitable for Techtop single-phase electric motors.

Do you offer Australia-wide shipping?

Yes. We provide fast Australia-wide shipping, competitive trade pricing and worldwide delivery on selected products.

• Brand: Techtop
• Model: TML 71B
• Power Output: 0.55kW
• Poles: 2
• Speed: 2790 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 71B
• Motor Series: TML Capacitor Start / Capacitor Run
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Full Load Current: 3.4A
• Full Load Torque: 1.9Nm
• Efficiency: 73%
• Power Factor: 0.95
• Noise Level: 73 dB(A)
• Start Capacitor: 75µF 250V
• Run Capacitor: 16µF 450V
• Bearing Type: NSK 6202ZZ C3
• Thermal Protection: Manual Reset Overload
• Motor Weight: 7.0kg
• IEC Standards: IEC 60034 & IEC 60072

Features & Benefits

• Reliable 0.55kW Output – Delivers dependable power for industrial, commercial and agricultural equipment.
• Smooth 4 Pole Performance – Operates at approximately 1420 RPM, making it ideal for pumps, conveyors, compressors and machinery requiring controlled operating speeds.
• Heavy-Duty 80A Frame – Larger aluminium frame provides increased strength, durability and long service life.
• Capacitor Start / Capacitor Run (CSCR) – High starting torque with smooth, efficient operation under load.
• TEFC Construction – Totally Enclosed Fan Cooled design protects internal components from dust and moisture.
• IP55 Protection – Suitable for demanding workshop, agricultural and industrial environments.
• Premium NSK Bearings – Ensures smooth operation with reduced vibration and extended bearing life.
• Manual Reset Thermal Overload Protection – Helps prevent overheating and protects the motor from damage.
• S1 Continuous Duty Rated – Designed for continuous operation in demanding applications.
• Built to IEC Standards – Manufactured to IEC 60034 and IEC 60072 international standards.
