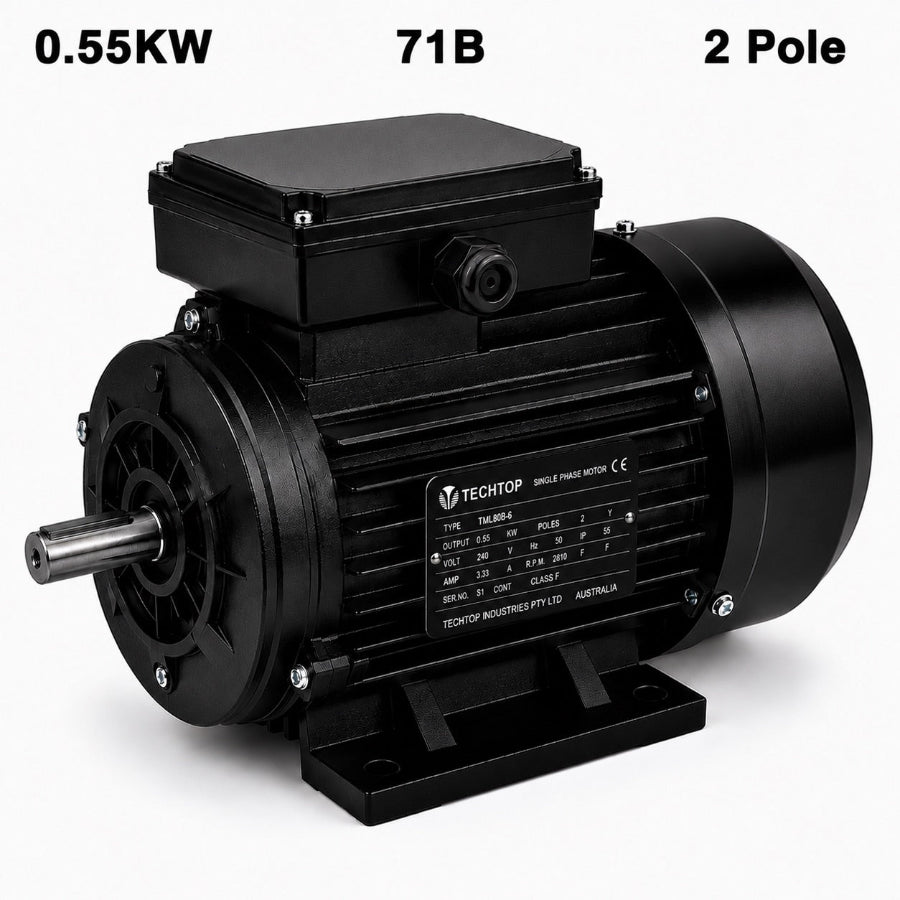

Techtop 0.55kW 2 Pole Single Phase Electric Motor 240V | TML 71B | 2790 RPM

Frequently Asked Questions

What is the Techtop TML 71B 0.55kW motor commonly used for?

This motor is ideal for pumps, compressors, ventilation fans, blowers, workshop machinery, conveyors, packaging equipment and a wide range of industrial and agricultural applications requiring high-speed operation.

What speed does this motor operate at?

The motor runs at approximately 2790 RPM under full load, making it suitable for applications requiring higher shaft speeds.

Does this motor require a 240V power supply?

Yes. The TML 71B operates on a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

This motor uses a Capacitor Start / Capacitor Run (CSCR) design, providing excellent starting torque, smooth acceleration and efficient operation.

Does the motor include thermal overload protection?

Yes. It is fitted with an integrated manual reset thermal overload protector to help prevent overheating and protect the motor.

What capacitors are used in this motor?

The motor uses a 75µF 250V start capacitor and a 16µF 450V run capacitor.

Can this motor replace an existing single-phase motor?

Yes. As long as the power output, frame size, shaft dimensions and mounting configuration match your existing motor, it is an excellent replacement for worn or failed single-phase motors.

Do you stock replacement capacitors?

Yes. Paddle Wholesale stocks a wide range of motor start capacitors and motor run capacitors suitable for Techtop single-phase electric motors.

Do you offer Australia-wide shipping?

Yes. We offer fast Australia-wide shipping, competitive trade pricing and worldwide delivery on selected products.

Specifications

• Brand: Techtop
• Model: TML 71B
• Power Output: 0.55kW
• Poles: 2
• Speed: 2790 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 71B
• Motor Series: TML Capacitor Start / Capacitor Run
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Full Load Current: 3.4A
• Full Load Torque: 1.9Nm
• Efficiency: 73%
• Power Factor: 0.95
• Noise Level: 73 dB(A)
• Start Capacitor: 75µF 250V
• Run Capacitor: 16µF 450V
• Bearing Type: NSK 6202ZZ C3
• Thermal Protection: Manual Reset Overload
• Motor Weight: 7.0kg
• IEC Standards: IEC 60034 & IEC 60072

• Reliable 0.55kW Output – Delivers dependable power for industrial, commercial and agricultural machinery.
• High-Speed 2 Pole Design – Operates at approximately 2790 RPM, making it ideal for pumps, fans, compressors and other high-speed applications.
• Capacitor Start / Capacitor Run (CSCR) – Provides high starting torque, smooth acceleration and efficient running performance.
• TEFC Construction – Totally Enclosed Fan Cooled design helps protect internal components from dust and moisture.
• IP55 Protection Rating – Suitable for demanding workshop, industrial and agricultural environments.
• Premium NSK Bearings – High-quality bearings ensure smooth operation, reduced vibration and long service life.
• Manual Reset Thermal Overload Protection – Protects the motor against overheating and helps prevent damage.
• Lightweight Aluminium Frame – Corrosion-resistant construction that is durable while remaining easy to handle and install.
• S1 Continuous Duty Rated – Designed for continuous operation in demanding applications.
• Built to IEC Standards – Manufactured to IEC 60034 and IEC 60072 international standards for quality and reliability.
