250mm Floor Grinder Coupling – Heavy-Duty Aluminium

  • Aluminium coupling for 250mm floor grinder designed for smooth power transfer and vibration reduction

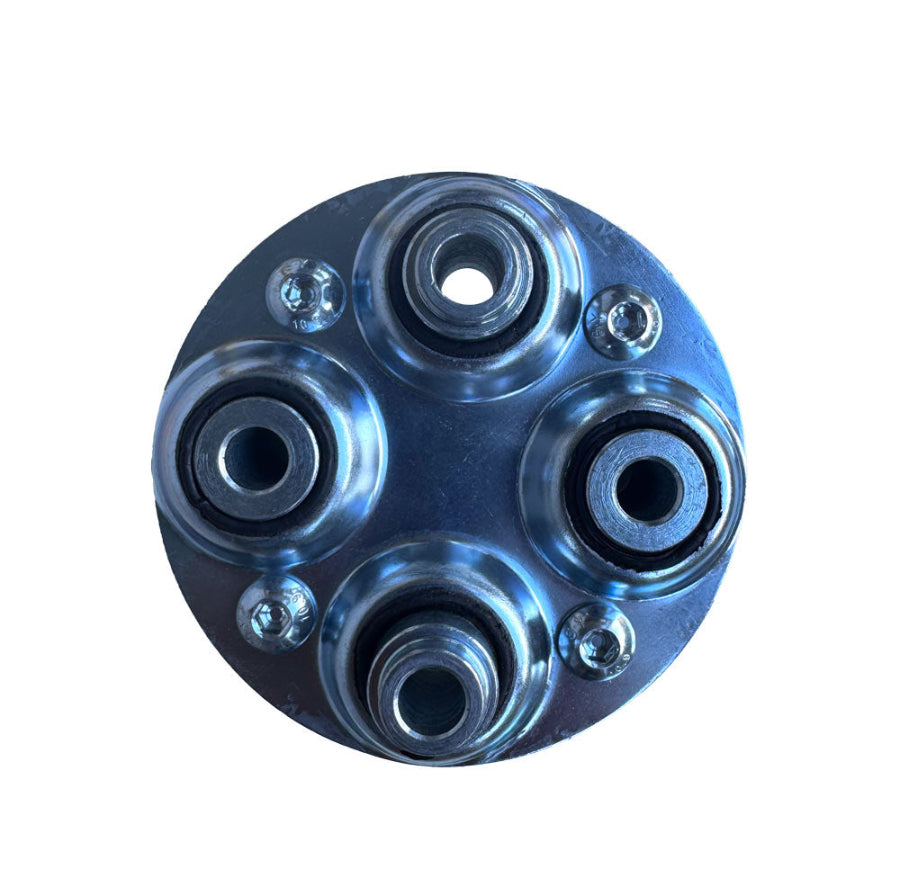

  • Heavy-duty aluminium floor grinder coupling with torsional stiffness for reduced vibration and long service life

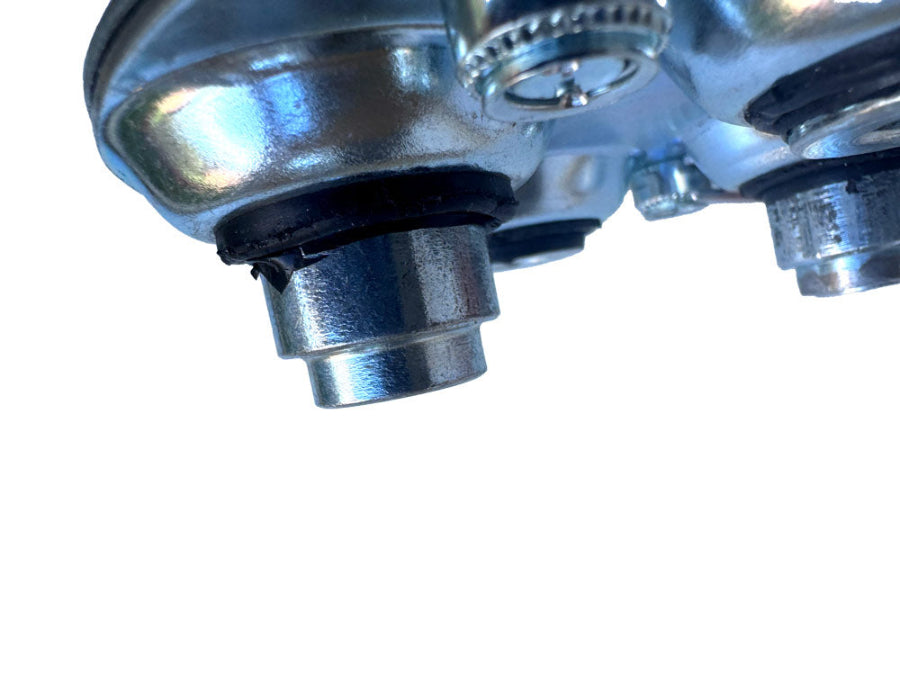

  • Motor to grinding head coupling installed on a 250mm floor grinder for efficient and stable operation
1 3

250mm Floor Grinder Coupling – Heavy-Duty Aluminium

250mm Floor Grinder Coupling – Heavy-Duty Aluminium

Free Shipping Australia & New Zealand

● 🔥 Almost Gone — Only 3 Left!

$248.16 AUD
$310.20 AUD $248.16 AUD
Sale Sold out
GST included
Same-Day Dispatch

Same-Day Dispatch

30-Day Returns

30-Day Returns

Australian Owned

Australian Owned

Worldwide Shipping

Worldwide Shipping

Upgrade your grinding equipment with the 250mm Floor Grinder Coupling. This heavy-duty coupling is crafted from high-strength aluminium for enhanced durability and optimal power transfer between the motor and grinding head. Say goodbye to excessive vibration and ensure smooth operation in your concrete grinding tasks.

Compatible with FP-250 and similar 250mm floor grinding machines, this coupling offers:

  • Robust Construction: Built to withstand high torque and abrasive conditions.
  • Vibration Dampening: Minimizes stress on the motor, prolonging the lifespan of your machine.
  • Simplified Installation: Easily fitted without the need for special tools.

This coupling is essential for any construction or maintenance project focusing on concrete grinding and surface preparation. Shop now to enhance your machinery's performance!

Faqs

What does a floor grinder coupling do?

A drive coupling connects the motor and grinding-head assembly, transferring rotation through the machine’s drive system.

What is this coupling made from?

This replacement coupling combines aluminium components with rubber elements.

Is the coupling itself 250mm in diameter?

No. The coupling measures 106mm in diameter and 54mm overall thickness. The 250mm reference describes the floor grinder’s working diameter.

Does it fit every FP-250 or 250mm floor grinder?

No. Different machines and production versions can use different couplings. Confirm the dimensions, mounting arrangement and bolt-hole centre spacing before purchasing.

What mounting holes does it have?

The coupling has four 10mm bolt holes. Hole diameter alone does not confirm fitment; the centre spacing and mounting orientation must also match.

When should I inspect the coupling?

Inspect it during drive-system servicing or when investigating unusual vibration, noise or grinding-head movement. These symptoms can have several causes, so diagnose the fault before replacing parts.

What is included?

One replacement floor grinder coupling. Refer to the product photos for the supplied components.

Specification

Product Specifications

Brand Paddle
Product type Replacement floor grinder drive coupling
Material Aluminium and rubber
Application Motor-to-grinding-head connection on compatible floor grinders
Grinder size Selected 250mm floor grinders
Coupling diameter 106mm
Overall thickness 54mm
Number of bolt holes 4
Bolt-hole diameter 10mm
Quantity 1 replacement coupling
Fitment requirements Matching dimensions, bolt-hole spacing and mounting arrangement

Applications

✔️ Concrete Floor Grinding Machines

✔️ Surface Preparation Equipment

✔️ Industrial & Commercial Grinder Repairs

✔️ Preventive Maintenance & Servicing

Key features

Key Features

  • Aluminium and rubber coupling construction.
  • Replacement drive component for compatible 250mm floor grinders.
  • Connects the motor and grinding-head assembly.
  • 106mm coupling diameter and 54mm overall thickness.
  • Four mounting holes, each 10mm in diameter.
  • Supplied individually for repairs and maintenance.

Tool compatibility

Floor Grinder Compatibility

Suitable for selected FP-250 and other 250mm floor grinders with a matching coupling assembly. Compatibility depends on the machine version and drive configuration.

Before purchasing, compare:

  • Coupling outside diameter: 106mm.
  • Overall thickness: 54mm.
  • Bolt-hole quantity and diameter: four 10mm holes.
  • Bolt-hole centre spacing and orientation.
  • Motor-side and grinding-head mounting arrangements.
  • Available clearance within the machine.

A 250mm grinding diameter or an FP-250 model designation alone does not confirm fitment. Check the existing assembly and your machine’s parts information before ordering.

Need help comparing the part? Contact Paddle Wholesale with your grinder’s make, model, coupling measurements and clear photos.

SHIPPING & DELIVERY

Domestic Shipping — Australia

Standard Shipping: Estimated 2–4 business days after dispatch.
Express Shipping: Estimated 1–3 business days after dispatch.

Free standard shipping is available on selected products, as shown on the product page. Other shipping charges are calculated at checkout.

New Zealand Shipping

Free standard shipping is available on selected products, as shown on the product page.

For other products, standard shipping charges are calculated at checkout. Express shipping options and estimated delivery times are also shown at checkout.

International Shipping — Other Destinations

Standard Shipping: Estimated 7–15 business days after dispatch.
Express Shipping: Estimated 3–7 business days after dispatch.

Available shipping options and charges are calculated at checkout. Customs duties, taxes or import fees may apply to orders outside Australia.

Heavy & Oversized Items

Heavy and oversized products are excluded from free shipping. Shipping charges are calculated at checkout. Express shipping is not available for these items.

All delivery times are estimates and may vary by destination.

View full details
The Paddle aluminium and rubber drive coupling is a replacement component for compatible 250mm concrete floor grinders. Positioned between the motor and grinding-head assembly, it transfers rotation through the machine’s drive system. This floor grinder coupling measures 106mm in diameter and 54mm overall thickness. It has four 10mm bolt holes and combines aluminium components with rubber elements. The 250mm designation refers to the grinder’s working diameter rather than the coupling itself. Selecting the correct replacement requires more than matching the grinder size. Compare the coupling’s dimensions, bolt-hole centre spacing, mounting orientation and available clearance with the existing assembly. For FP-250 machines and other 250mm floor grinders, check the specific machine version because drive components may differ. Inspect the coupling and surrounding fasteners during maintenance or when investigating unusual vibration, noise or grinding-head movement. Damage elsewhere in the drive assembly can produce similar symptoms, so identifying the cause helps ensure the correct repair. Supplied individually by Paddle Wholesale Australia, this replacement drive coupling is suitable for equipment owners and repair technicians maintaining compatible floor grinders. Contact us with your machine details, measurements and photos if you need assistance comparing fitment. Keep your grinder operating at peak performance by pairing this coupling with our 250mm floor grinder spare parts collection.
