Vacuum Motor Foam Seal for Ametek – 100mm OD × 77mm ID × 20mm

Vacuum Motor Foam Seal for Ametek – 100mm OD × 77mm ID × 20mm

Free Shipping Australia & New Zealand

● Only 17 Left — Order Soon

Regular price $25.25 AUD
Regular price $0.00 AUD Sale price $25.25 AUD
Sale Sold out
GST included
Same-Day Dispatch

Same-Day Dispatch

30-Day Returns

30-Day Returns

Australian Owned

Australian Owned

Worldwide Shipping

Worldwide Shipping

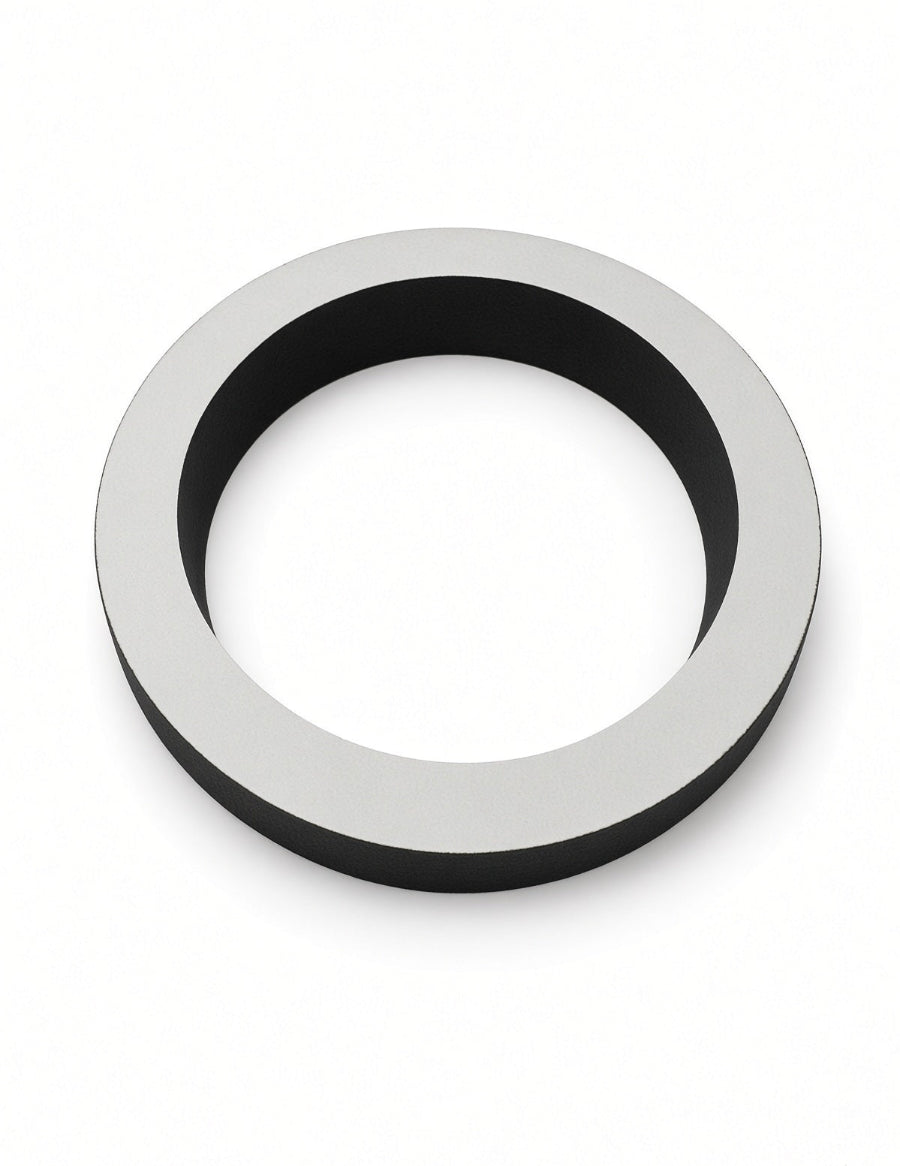

Self-adhesive replacement foam sealing ring for compatible Ametek vacuum motor installations. Measures 100mm outside diameter, 77mm inside diameter and approximately 20mm thick.

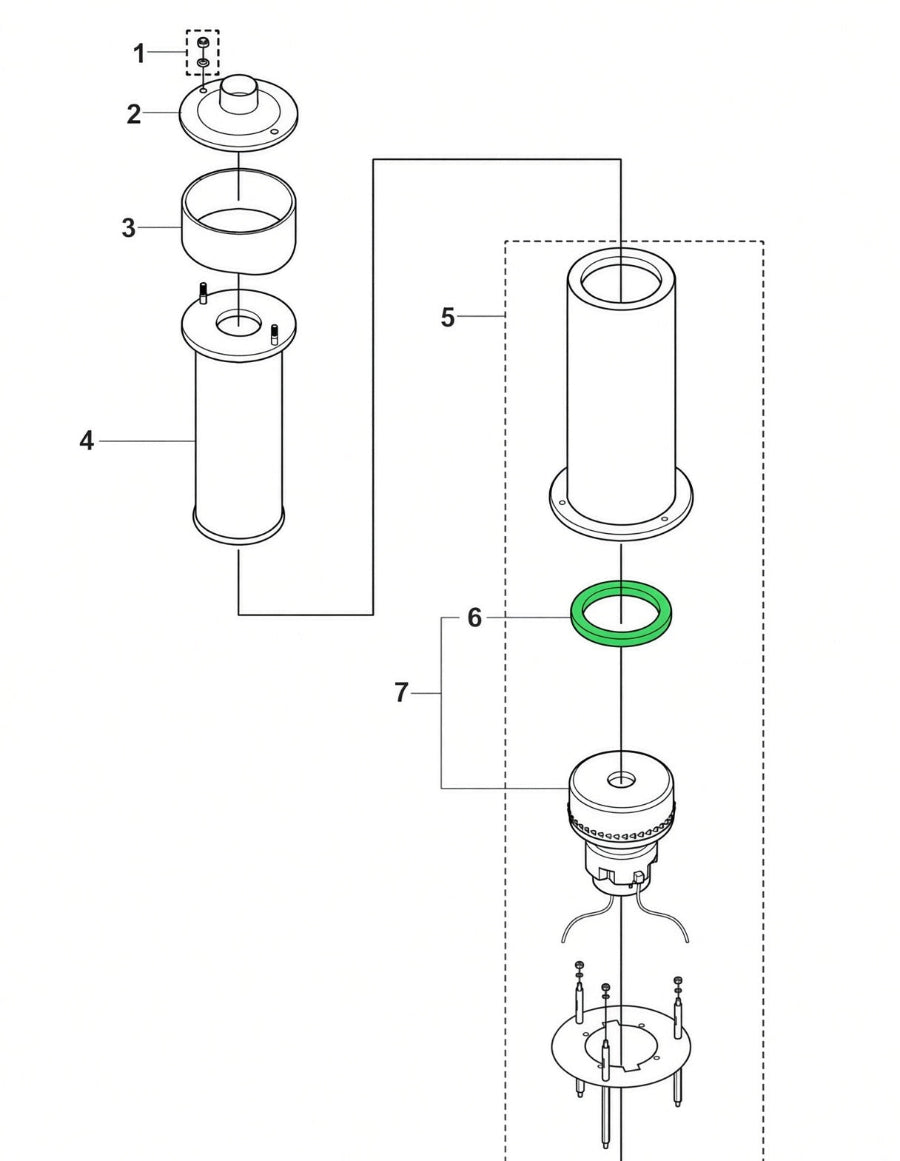

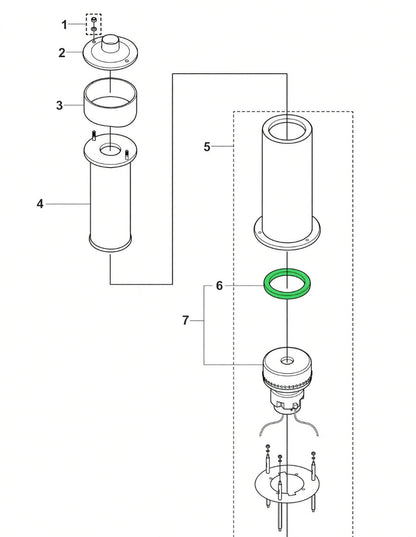

Fits between the motor and the mating filter tube or housing in compatible installations, helping reduce unwanted air leakage. Aftermarket part—not manufactured by Ametek. Sold individually.

Free standard shipping to Australia and New Zealand.

Frequently asked questions

What is this vacuum motor foam seal used for?

It seals the connection between the vacuum motor and the mating filter tube or housing in compatible installations. The compressible foam helps reduce unwanted air leakage at that connection.

What are the seal’s dimensions?

The ring measures 100mm outside diameter, 77mm inside diameter and approximately 20mm thick before compression.

Is this a genuine Ametek part?

No. This is an aftermarket replacement foam seal for compatible Ametek motor installations.

Does it fit every Ametek vacuum motor?

No. Fitment depends on the motor installation and surrounding housing. Check the outside diameter, inside diameter, thickness and mounting arrangement before ordering.

Is the foam ring self-adhesive?

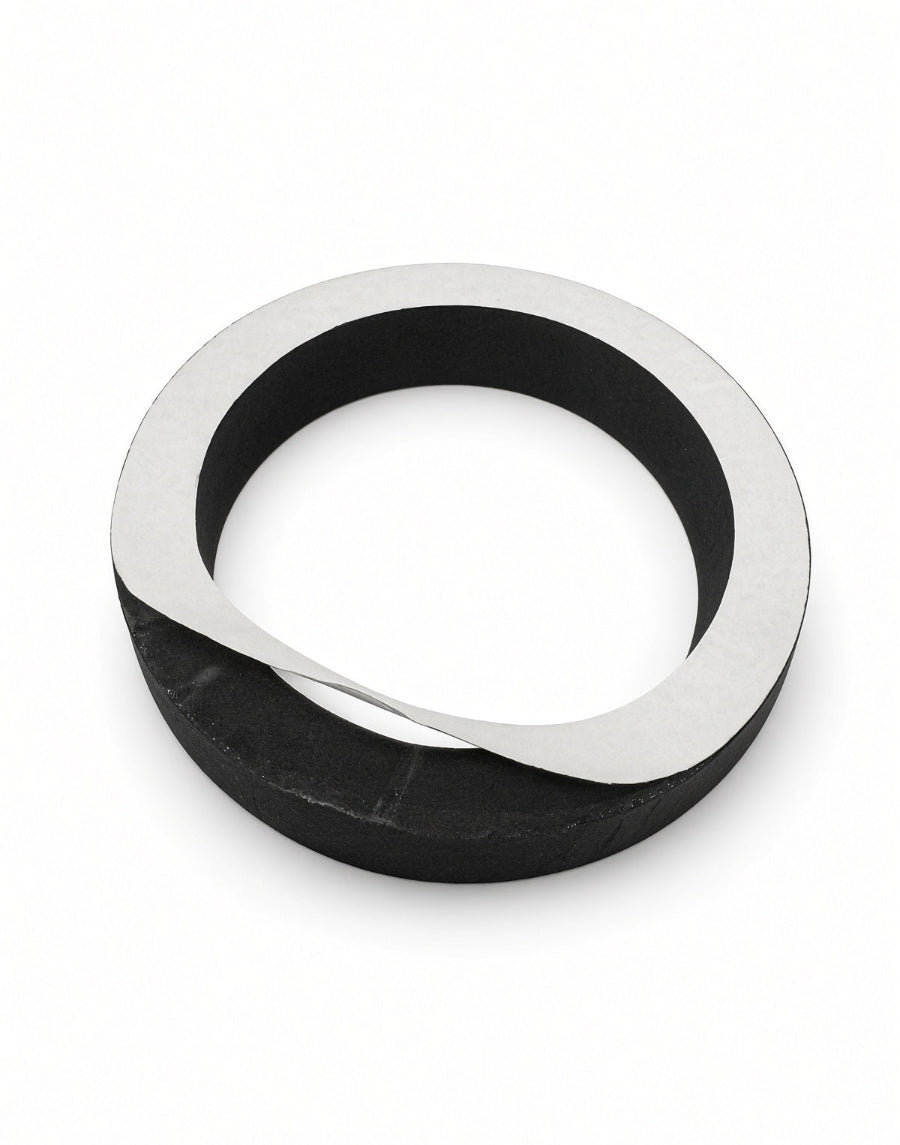

Yes. It has a self-adhesive backing to help hold it in position during assembly. Remove old adhesive and sealing material, and ensure the mating surface is clean and dry before fitting.

When should I replace the motor seal?

Inspect the seal when servicing or replacing the motor. Replace it if it is torn, deteriorated, missing or permanently compressed so that it no longer makes proper contact with the mating surface.

Will replacing this seal fix low suction?

It may help if leakage at this connection is the cause. Blocked filters, hoses, other damaged seals and motor faults can also affect suction, so check the system before replacing parts.

Is this a HEPA filter?

No. It is a sealing ring, not a filter. Replacing this seal does not establish or change the vacuum’s filtration certification.

How many seals are included?

This listing includes one foam sealing ring. The motor, filter and housing are not included.

Is shipping included?

Yes. Free standard shipping is included to Australia and New Zealand.

Specification

Product Specifications

Product Type Vacuum motor foam sealing ring
Part Type Aftermarket replacement — not a genuine Ametek part
Outside Diameter (OD) 100mm
Inside Diameter (ID) 77mm
Thickness / Height Approximately 20mm, uncompressed
Material Compressible foam
Attachment Self-adhesive backing
Application Sealing between the vacuum motor and mating filter tube or housing in compatible installations
Compatibility Selected Ametek vacuum motor installations with matching seal dimensions and mounting arrangement
Package Contents 1 foam sealing ring
Not Included Vacuum motor, filter and housing

Tool compatibility

Compatibility and Fitment

This aftermarket foam seal is intended for compatible Ametek vacuum motor installations that require a ring with the following dimensions:

  • Outside diameter: 100mm
  • Inside diameter: 77mm
  • Uncompressed thickness: approximately 20mm

Compare all three measurements with your existing seal and check the mating surfaces and available space before ordering. An old seal may have compressed during use.

Compatibility depends on the vacuum’s housing and motor installation, not the motor brand alone. This seal does not fit every Ametek motor or vacuum cleaner.

Aftermarket replacement: Ametek is referenced to identify the intended application. This seal is not manufactured by Ametek.

SHIPPING & DELIVERY

Domestic Shipping — Australia

Standard Shipping: Estimated 2–4 business days after dispatch.
Express Shipping: Estimated 1–3 business days after dispatch.

Free standard shipping is available on selected products, as shown on the product page. Other shipping charges are calculated at checkout.

New Zealand Shipping

Free standard shipping is available on selected products, as shown on the product page.

For other products, standard shipping charges are calculated at checkout. Express shipping options and estimated delivery times are also shown at checkout.

International Shipping — Other Destinations

Standard Shipping: Estimated 7–15 business days after dispatch.
Express Shipping: Estimated 3–7 business days after dispatch.

Available shipping options and charges are calculated at checkout. Customs duties, taxes or import fees may apply to orders outside Australia.

Heavy & Oversized Items

Heavy and oversized products are excluded from free shipping. Shipping charges are calculated at checkout. Express shipping is not available for these items.

All delivery times are estimates and may vary by destination.

View full details
Self-Adhesive Vacuum Motor Foam Seal – 100mm OD × 77mm ID × 20mm This replacement foam sealing ring is designed for compatible Ametek vacuum motor installations in industrial vacuums and dust extractors. It measures 100mm outside diameter, 77mm inside diameter and approximately 20mm thick before compression. The ring fits between the vacuum motor and the mating filter tube or housing in suitable installations. Its compressible foam helps seal the connection and reduce unwanted air leakage. The self-adhesive backing helps hold the ring in position while the components are assembled. Motor sealing rings can deteriorate, tear or remain flattened after extended use. Inspecting the seal during motor servicing helps identify damage that could prevent proper contact between the mating surfaces. Replace the ring when it no longer seals correctly. Before ordering, compare the outside diameter, inside diameter and thickness with the seal required by your vacuum. Allow for compression of the old foam when checking its thickness. The surrounding housing and mounting arrangement also determine fitment, so an Ametek motor alone does not confirm compatibility. For installation, disconnect the vacuum from its power supply and follow the equipment manufacturer’s servicing instructions. Remove the old sealing material and adhesive, then ensure the mating surface is clean and dry before positioning the replacement ring. Work involving motor wiring should be carried out by a suitably qualified technician. This is an aftermarket replacement seal, not a genuine Ametek component. It is supplied individually and does not include the vacuum motor, filter or housing. Available from Paddle Wholesale Australia with free standard shipping to Australia and New Zealand.
