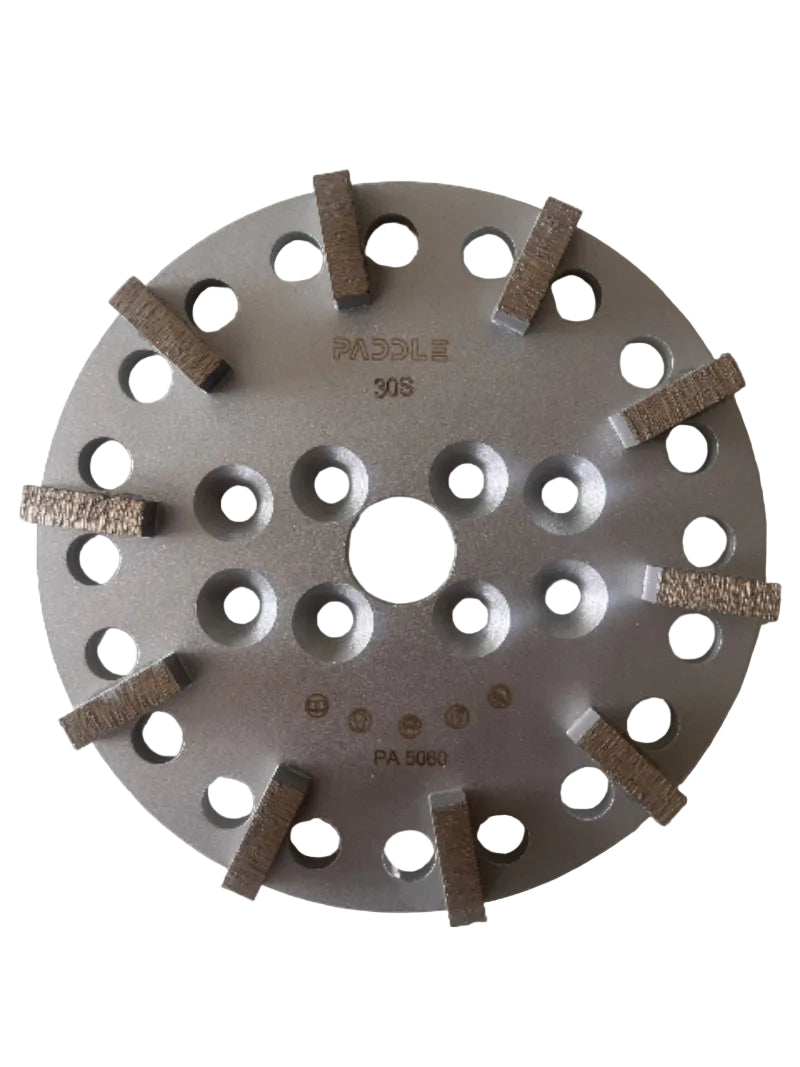

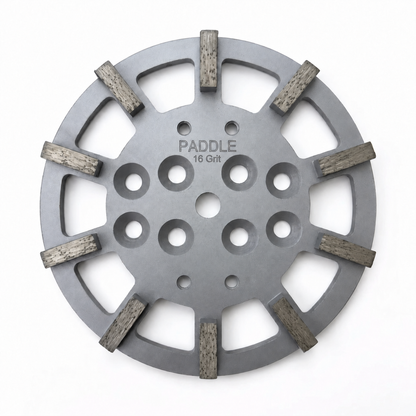

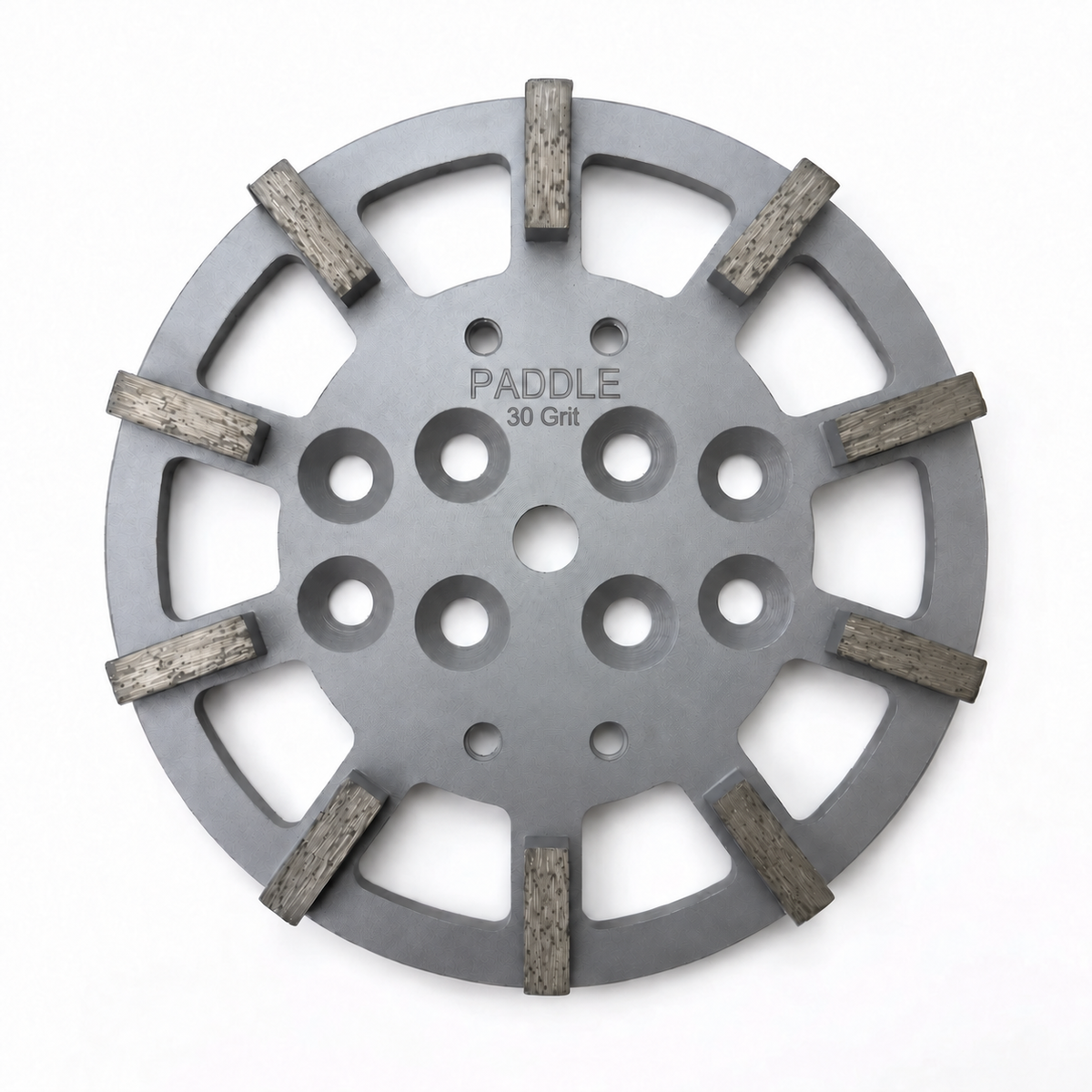

• 250mm 10 inch diamond concrete grinding disc with 10 segments for floor grinders

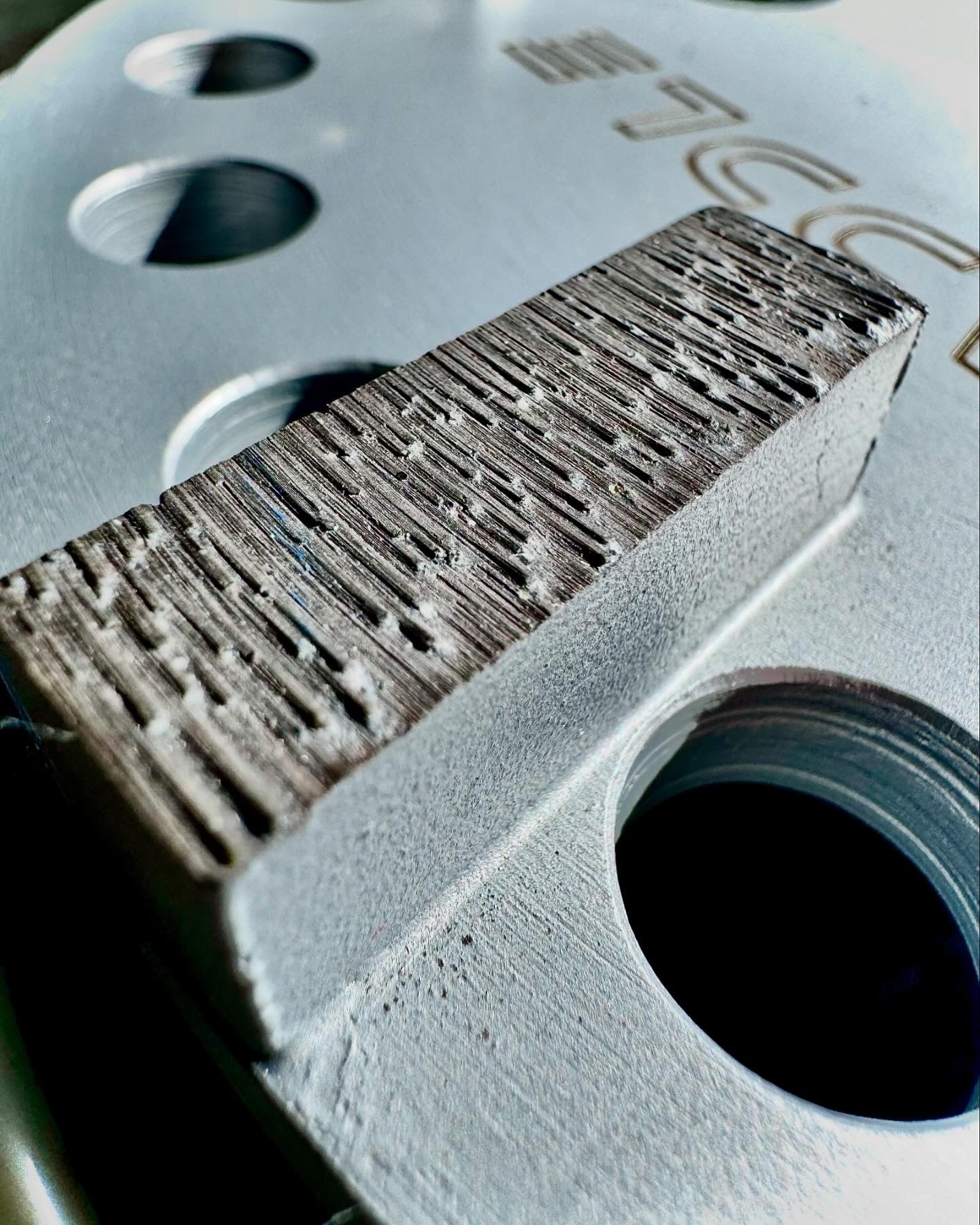

  • 250 mm concrete floor grinding disc segment
  • Technical drawing showing the 250mm diamond concrete grinding disc bolt pattern and mounting dimensions, suitable for floor grinders such as the Vortex FP-250, Flextool Cub Grinder, and other machines using the same mounting system.
1 3

● In Stock – Ready to Ship

250mm (10”) Diamond Concrete Grinding Disc – 10 Segment Grinding Plate

250mm (10”) Diamond Concrete Grinding Disc – 10 Segment Grinding Plate

Free Shipping Australia-Wide
$169.00 AUD
$180.00 AUD $169.00 AUD
Sale Sold out
Excluding GST
Shipping calculated at checkout.
Australian owned

Australian owned

Fast Dispatch

Fast Dispatch

Worldwide Shipping

Worldwide Shipping

Expert Support

Expert Support

The 250mm Diamond Concrete Grinding Disc with 10 Segments is designed for aggressive concrete grinding, coating removal, and surface preparation. Featuring ten high-quality diamond segments, it delivers smoother grinding performance, more even wear distribution, and longer service life than lower segment-count alternatives.

Ideal for professional contractors, this heavy-duty grinding disc is suitable for concrete levelling, epoxy removal, adhesive stripping, and floor preparation prior to polishing or sealing.

Specification



  • Product Type: Diamond Concrete Floor Grinding Disc

  • Disc Diameter: 250mm (10 inch)

  • Segment Type: Diamond Segmented

  • Number of Segments: 10 segments

  • Segment Shape: Rectangular

  • Segment Height: 13mm

  • Segment Lenght: 40mm

  • Segment width: 12mm

  • Bond Type: Soft Bond (available in medium, or hard upon request)

  • Grit Options: 30, (other grits are available upon request)

  • Application: Concrete surface preparation, coating removal, epoxy and glue stripping

  • Machine Compatibility: Fits most standard 250mm floor grinders (Flextool and more)

  • Mount Type: Bolt-on

  • Weight: Approx. 3.8kg

  • Country of Origin: Australia / Imported



Applications

  • Coating and adhesive removal

  • Surface leveling and preparation

  • Smoothing uneven concrete floors

  • Preparing slabs for polishing or sealing

  • General concrete floor maintenance​, grinding

Key features

  • High-quality diamond segments for extended durability

  • Optimal for medium to heavy-duty grinding tasks

  • Suitable for various concrete surface conditions

  • Easy attachment to standard 250mm floor grinders

Tool compatibility

  • Compatible Machines:

  • Bayer BFG250

  • Flextool Cub Grinder

  • Renegade 250mm Floor Grinder

  • Tornado T2 Floor Grinder

  • Vortex FP-250

  • Blastrac BGS-250SC MKII

  • C250 Concrete Floor Grinder

  • T2 – 250mm Cub Grinding Machine

  • Also compatible with other floor grinders that use 250mm (10") grinding discs with the same mounting system.
