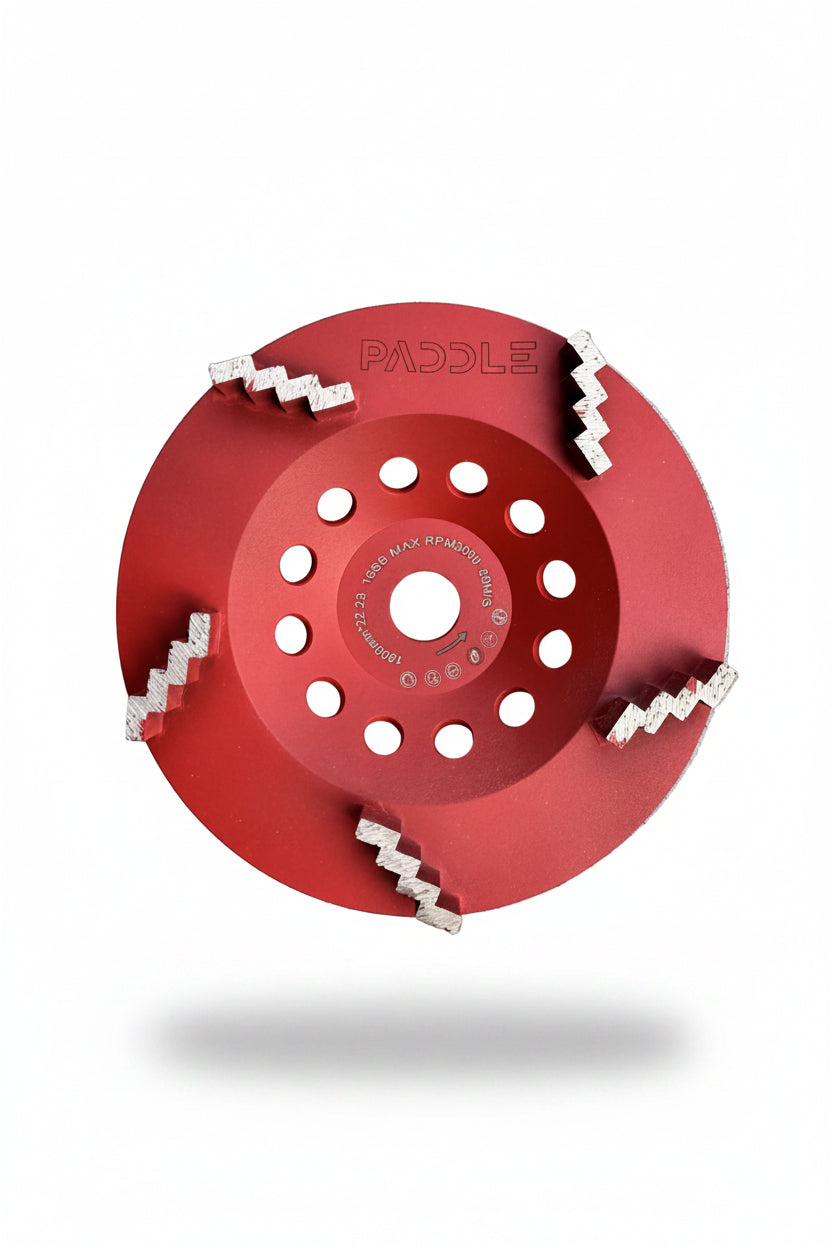

• 180mm zig-zag diamond cup wheel with 5 segments for concrete grinding and coating removal

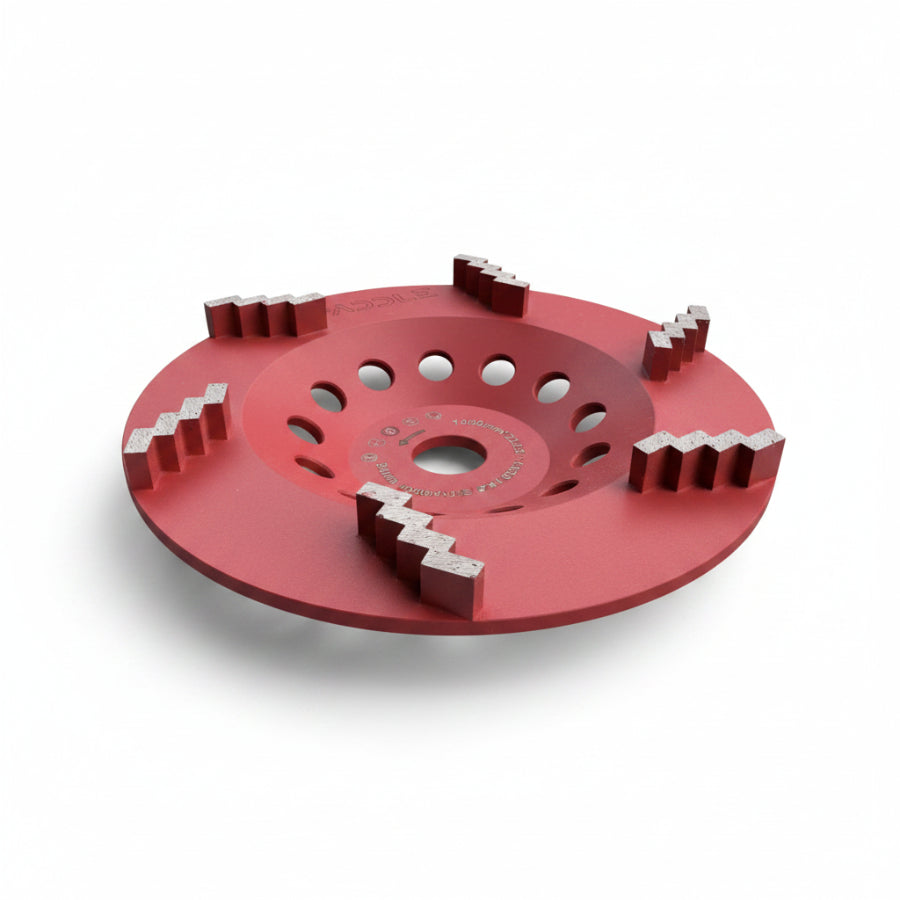

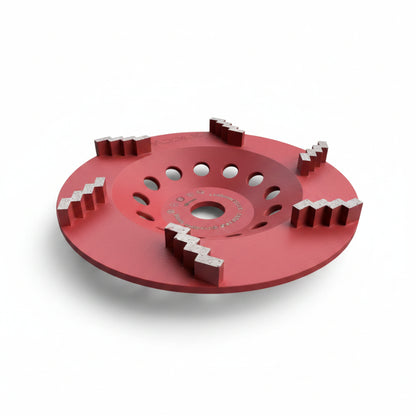

  • 5 segment 180mm zig-zag diamond grinding cup wheel for concrete surface preparation
1 2

● Only 3 Left – Order Soon

180mm (7") Zig-Zag Diamond Cup Wheel 5 Segment | 16/30 Grit Concrete Grinding Disc

180mm (7") Zig-Zag Diamond Cup Wheel 5 Segment | 16/30 Grit Concrete Grinding Disc

Free Shipping over $300
$99.00 AUD
$0.00 AUD $99.00 AUD
Sale Sold out
Excluding GST
Shipping calculated at checkout.
Australian owned

Australian owned

Fast Dispatch

Fast Dispatch

Worldwide Shipping

Worldwide Shipping

Expert Support

Expert Support

The 180mm Zig-Zag Diamond Cup Wheel (5 Segment) is designed for aggressive concrete grinding, coating removal, and surface preparation. Featuring a 5-segment zig-zag pattern and premium industrial diamonds, it delivers fast material removal, excellent dust evacuation, and smooth grinding performance on concrete, masonry, and stone surfaces.

Faqs

What is the 180mm Zig-Zag Diamond Cup Wheel used for?

This cup wheel is designed for concrete grinding, surface preparation, coating removal, and floor levelling applications.

What is the advantage of the 5-segment design?

The 5-segment design concentrates grinding pressure into a smaller contact area, providing faster and more aggressive material removal.

What are zig-zag segments used for?

Zig-zag segments improve debris evacuation, airflow, and grinding efficiency while helping reduce vibration during operation.

Can this cup wheel remove epoxy and adhesives?

Yes, it is suitable for removing light to medium coatings, adhesives, paints, and epoxy residues from concrete surfaces.

Is this suitable for wet and dry grinding?

Yes, the cup wheel can be used for both wet and dry grinding depending on the application and equipment.

What grit should I choose?

16 grit is ideal for aggressive grinding and coating removal, while 30 grit provides a smoother finish and general surface preparation.

Will this fit a standard 180mm angle grinder?

Yes, the 22.23mm arbor size is compatible with most standard 180mm angle grinders.

Specification

Product Type: Zig-Zag Diamond Cup Wheel

Diameter: 180mm (7")

Segment Pattern: Zig-Zag

Segment Count: 5 Segments

Segment Height: 12mm

Grit Options: 16 Grit, 30 Grit

Arbor Size: 22.23mm

Material: Industrial Diamond & Reinforced Steel Core

Maximum RPM: 8,400 RPM

Weight: 985 Grams

Compatibility: Angle Grinders & Floor Grinders

Usage: Wet or Dry Grinding

Features and benefits

  • 5-segment zig-zag design for aggressive material removal.
  • Improved airflow and debris evacuation for cooler grinding.
  • Concentrated grinding pressure for faster cutting performance.
  • Suitable for concrete grinding, coating removal, and floor preparation.
  • Available in 16 grit and 30 grit for different grinding requirements.
  • Reduced vibration for improved operator comfort and control.
  • Industrial-grade diamonds for long service life.
  • Suitable for wet and dry grinding applications.
  • Compatible with most 180mm angle grinders and floor grinders.
