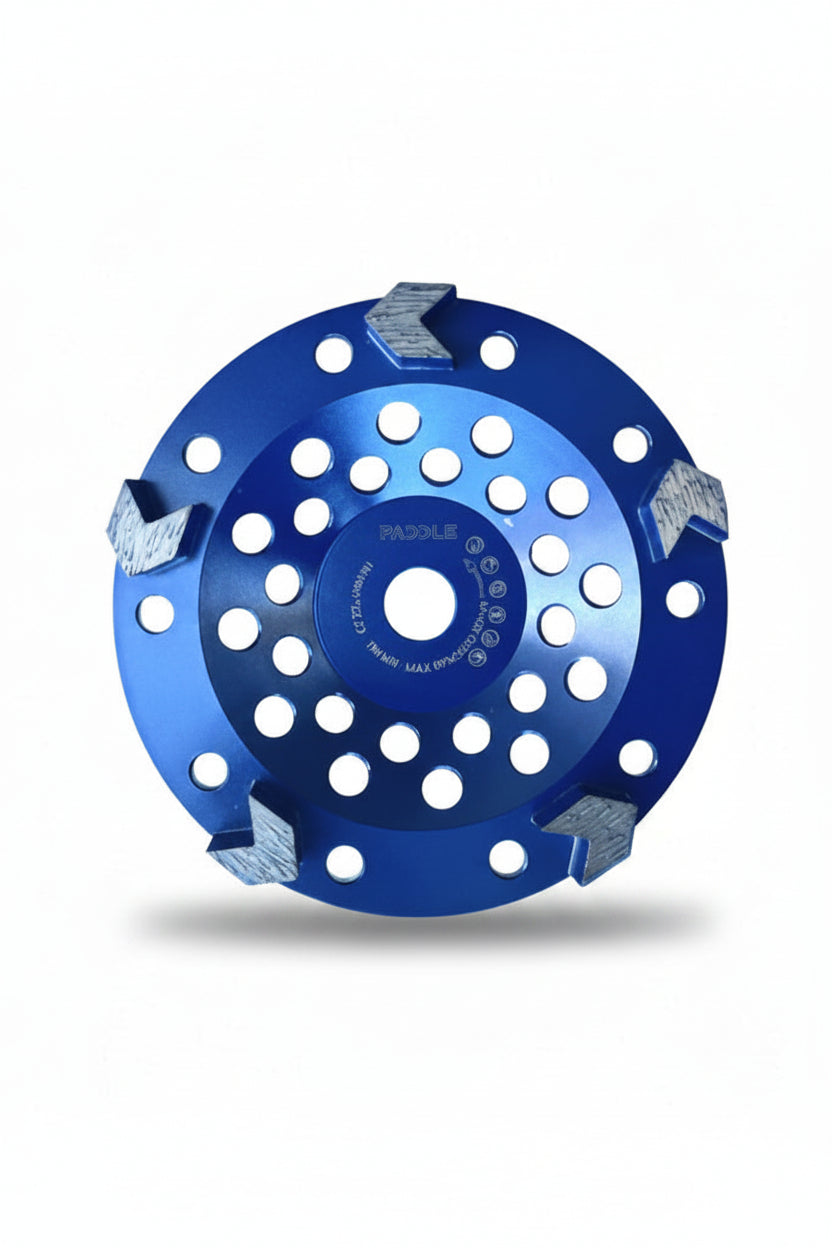

180mm Arrow Diamond Grinding Cup Wheel – 5 Segment, 16 & 30 Grit

180mm Arrow Diamond Grinding Cup Wheel – 5 Segment, 16 & 30 Grit

Free Shipping Australia & New Zealand

● 🔥 Almost Gone — Only 2 Left!

Select the bond
Select the Grit
Regular price $89.10 AUD
Regular price $127.60 AUD Sale price $89.10 AUD
Sale Sold out
GST included
Same-Day Dispatch

Same-Day Dispatch

30-Day Returns

30-Day Returns

Australian Owned

Australian Owned

Worldwide Shipping

Worldwide Shipping

The Paddle 180mm arrow diamond grinding cup wheel is designed for coarse concrete grinding, surface preparation and removal of suitable coating and adhesive residues.

Featuring five arrow-shaped diamond segments with a 10mm segment height, this cup wheel is available in 16 or 30 grit and soft, medium or hard bond options. Select the grit and bond to suit your concrete and the preparation required.

Product highlights:
• 180 mm / 7-inch diameter.
• Five arrow-shaped diamond segments.
• 10mm segment height.
• 22.23mm bore.
• Choice of 16 or 30 grit.
• Soft, medium and hard bond options.
• Maximum permitted speed: 3,000 RPM.

Choose 16 grit for a coarser initial grind or 30 grit for coarse preparation with a less aggressive scratch pattern. Both options leave a ground surface that may require further finishing.

Check machine compatibility before purchasing. The grinder must accept the wheel’s diameter, bore and mounting profile and be approved for operation with this wheel at no more than 3,000 RPM. A matching bore alone does not confirm fitment.

Supplied as one cup wheel in your selected grit and bond.

Faqs

  • What is this arrow cup wheel used for?
    It is designed for coarse concrete grinding, surface preparation, localised high-spot removal and grinding suitable coating or adhesive residues. Suitability depends on the surface, material and machine setup.

  • Should I choose 16 or 30 grit?
    Choose 16 grit for a coarser initial grind. Choose 30 grit when you want coarse preparation with a less aggressive scratch pattern. Neither option produces a polished finish.

  • Which bond should I select?
    As a starting guide, soft bond is generally used on hard concrete, medium bond on medium concrete, and hard bond on softer, more abrasive concrete. Aggregate, surface condition and machine setup also influence the correct choice.

  • What is the maximum operating speed?
    The maximum permitted speed is 3,000 RPM. Never exceed this rating. Confirm the machine's suitability before mounting the wheel.

  • Does it fit any 180mm angle grinder?
    No. The machine must match the wheel's diameter, 22.23mm bore, mounting profile and guarding requirements, and must not drive it above 3,000 RPM. A matching bore alone does not confirm compatibility.

  • Can I use it for wet and dry grinding?
    The wheel can be used for wet or dry grinding with suitable equipment. Wet use requires a machine approved for wet operation. Dry use requires appropriate dust control.

  • Can it remove epoxy or glue?
    It may suit some coating and adhesive residues. Thick, flexible or sticky materials can clog diamond tooling and may require a different removal tool. Select tooling for the specific coating and substrate.

  • What is included?
    One Paddle 180mm five-segment arrow diamond cup wheel in the grit and bond selected. The grinder, dust shroud and other accessories are not included.

Specification

Brand Paddle
Product type Diamond grinding cup wheel
Diameter 180mm / 7 inch
Segment shape Arrow
Number of segments 5
Segment height 10mm
Bore diameter 22.23mm
Available grits 16 and 30 — as selected
Available bonds Soft, medium and hard — as selected
Maximum permitted speed 3,000 RPM — do not exceed
Construction Diamond segments with steel body
Approximate weight 836g
Use Wet or dry grinding with suitable equipment and appropriate dust or slurry control
Quantity 1 cup wheel

Features and benefits

  • Arrow segment design: For coarse concrete grinding and surface preparation.
  • Two grit options: Choose 16 grit for a coarser initial grind or 30 grit for a less coarse scratch pattern.
  • Three bond options: Select soft, medium or hard bond to suit the concrete and its abrasiveness.
  • Surface preparation: Suitable for preparing concrete before subsequent grinding, coating or levelling work.
  • Residue removal: Can be used on suitable adhesive, paint and coating residues. Results depend on the material and thickness.
  • Localised high spots: For controlled removal of raised concrete areas using compatible grinding equipment.

Applications

Concrete Surface Prep
Ideal for heavy grinding before polishing, sealing, or overlaying.

Coating & Adhesive Removal
Easily removes glues, epoxies, paints, and other coatings.

High Spot Levelling
Perfect for flattening uneven slabs and removing raised areas.

Commercial & Residential Use
Suitable for large floor grinding jobs in both residential and industrial environments.

Masonry Surface Work
Also works on bricks, pavers, and stone surfaces.

Tool compatibility

Use only with equipment approved for a 180mm diamond cup wheel with a 22.23mm bore and the matching mounting profile, flange and guarding arrangement.

Maximum permitted wheel speed: 3,000 RPM. Do not use on a machine that will drive the wheel above this speed. Do not assume a standard 7-inch angle grinder is suitable because the wheel fits its spindle.

For variable-speed equipment, confirm that the machine manufacturer permits this wheel and operating setup. Follow both the machine and wheel instructions.

Wet grinding requires equipment specifically approved for wet operation. For dry grinding, use suitable dust extraction and the protective equipment required for the task.

SHIPPING & DELIVERY

Domestic Shipping — Australia

Standard Shipping: Estimated 2–4 business days after dispatch.
Express Shipping: Estimated 1–3 business days after dispatch.

Free standard shipping is available on selected products, as shown on the product page. Other shipping charges are calculated at checkout.

New Zealand Shipping

Free standard shipping is available on selected products, as shown on the product page.

For other products, standard shipping charges are calculated at checkout. Express shipping options and estimated delivery times are also shown at checkout.

International Shipping — Other Destinations

Standard Shipping: Estimated 7–15 business days after dispatch.
Express Shipping: Estimated 3–7 business days after dispatch.

Available shipping options and charges are calculated at checkout. Customs duties, taxes or import fees may apply to orders outside Australia.

Heavy & Oversized Items

Heavy and oversized products are excluded from free shipping. Shipping charges are calculated at checkout. Express shipping is not available for these items.

All delivery times are estimates and may vary by destination.

View full details
Paddle 180mm Arrow Diamond Cup Wheel for Concrete Preparation The Paddle 180mm five-segment arrow cup wheel is a diamond grinding tool for coarse concrete preparation. It is suited to tasks such as grinding surface imperfections, reducing localised high spots and removing suitable coating or adhesive residues before further preparation. The wheel features five arrow-shaped diamond segments, a 10mm segment height and a 22.23mm bore. Available grit and bond options allow you to select the wheel for your concrete and the finish required. Choosing Between 16 and 30 Grit The 16-grit option provides a coarser initial grind for jobs where a pronounced scratch pattern is acceptable. The 30-grit option provides coarse preparation with a less aggressive scratch pattern. Both are preparation tools. Further grinding or finishing may be necessary before applying a coating, overlay or polished finish. Follow the surface preparation requirements of the system being installed. Selecting the Bond The bond controls how the diamond segment wears and exposes fresh cutting diamonds. Soft bond is generally a starting choice for hard concrete, while hard bond is generally used on softer, more abrasive concrete. Medium bond provides an option for intermediate conditions. Concrete hardness, aggregate, abrasiveness and machine setup all affect performance. If the wheel is glazing or wearing unusually quickly, review the bond selection and operating conditions. Check the Machine and Speed Rating This cup wheel has a maximum permitted speed of 3,000 RPM. The machine must be approved for the wheel’s diameter, mounting arrangement and operating speed. Do not assume compatibility with every 180mm angle grinder. Check the bore, mounting profile, flanges, guard clearance and speed requirements before use. Preparing for the Job Use appropriate dust extraction for dry grinding or suitable slurry control with equipment approved for wet grinding. Follow the machine and wheel instructions, and inspect the wheel before installation. Each order includes one Paddle 180mm arrow diamond cup wheel in the selected grit and bond. Contact Paddle Wholesale Australia with your grinder model and surface details if you need help selecting an option.
