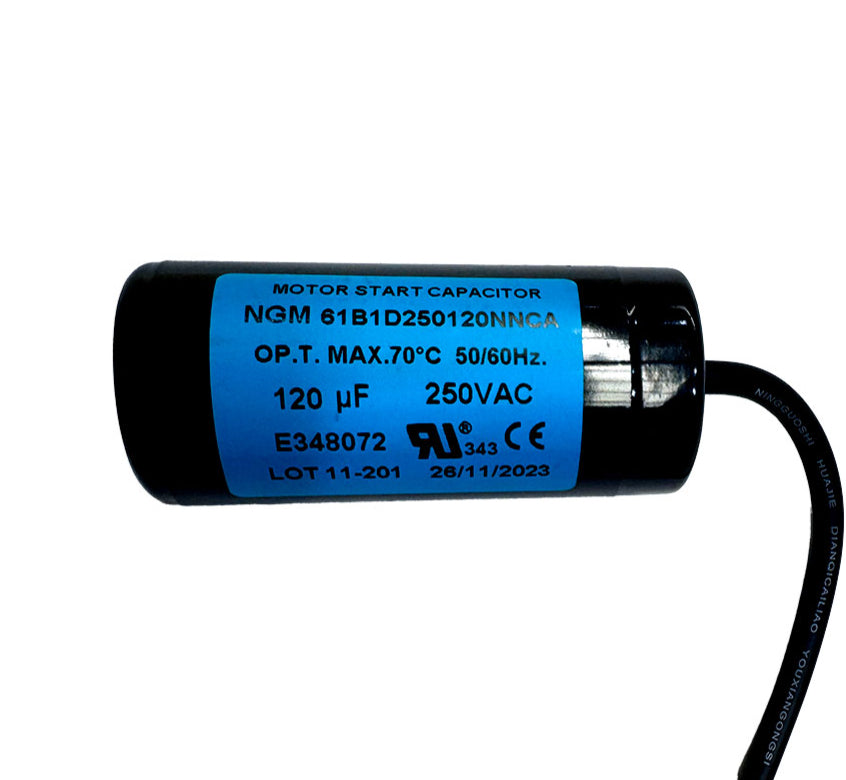

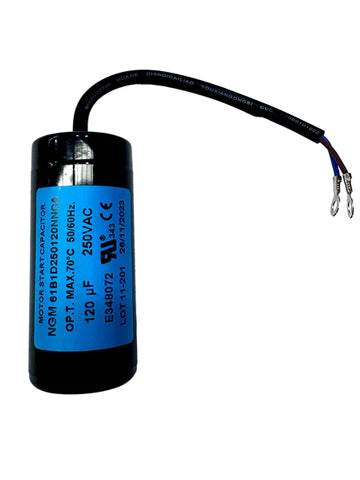

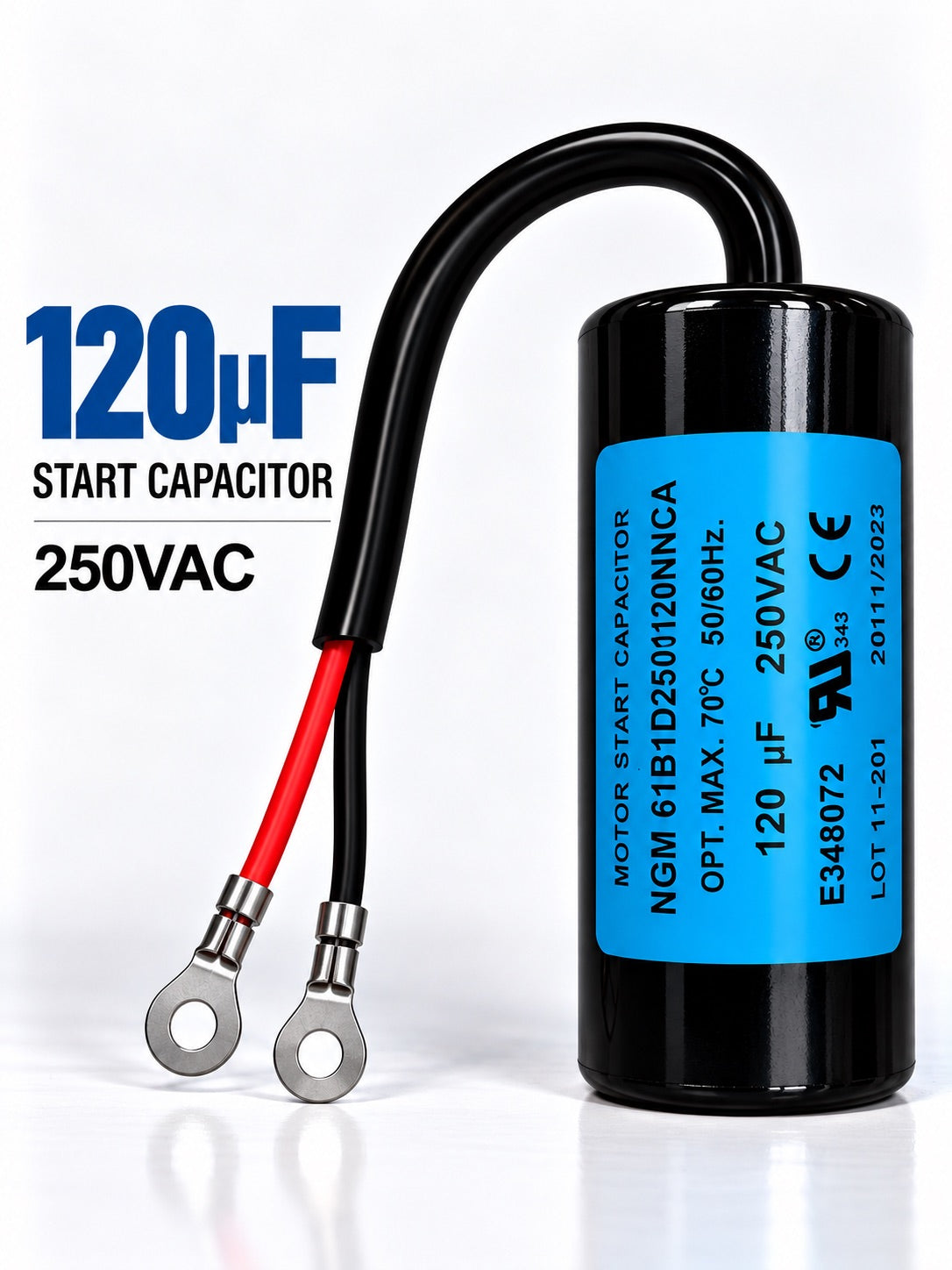

120µF (120uF) 250VAC Motor Start Capacitor | E348072 | 61B1D250120NNCA

What does a 120µF motor start capacitor do?
A 120µF start capacitor provides the initial electrical boost required to start a single-phase electric motor. It helps generate the torque needed to overcome inertia and start the motor smoothly.

Where is a 120µF start capacitor commonly used?
120µF start capacitors are commonly used in air compressors, water pumps, HVAC systems, and refrigeration equipment where strong starting torque is required.

What happens if a 120µF start capacitor fails?
If the capacitor fails, the motor may hum without starting, struggle under load, or trip circuit breakers due to increased current draw.

Can I replace a 120µF capacitor with a different µF rating?
No. Always replace the capacitor with the same microfarad (µF) rating and voltage specification to ensure proper motor performance and avoid damage.

What is the difference between a start capacitor and a run capacitor?
Start capacitors are used only during motor startup to provide high starting torque, while run capacitors remain in the circuit during normal operation to improve efficiency.

How can I tell if my start capacitor is faulty?
Common signs include a motor that hums but won’t start, slow or inconsistent startup, overheating, or repeated tripping of electrical protection devices.

• Capacitance: 120 microfarads (uF)

• Rated Voltage: 250V AC

• Terminal: Quick-connect blade terminals

• Operating Temperature: to +70°C

• Shell Type: Round plastic housing

• Length: 81mm

• Diameter: 35mm

• UL Recognised: E348072 compliant

• Application: Ideal for motors in compressors, pumps, blowers, and HVAC units

• Identification number: NGM 61B1D250120NNCA

• Termination Style: Lug type

Rugged Build
Encased in high-strength plastic, this capacitor is designed to operate reliably in demanding environments.

Reliable Motor Startup
Provides strong initial torque to kickstart electric motors, preventing lag and startup failure.

Easy Installation
Features lug-style terminals and 120mm leads for convenient setup in both residential and industrial applications.

Flexible Mounting
Stand-alone mounting style allows adaptable placement into new or existing setups.

Consistent Power Delivery
Rated at 250VAC, it delivers stable output across demanding electrical systems.

Secure Connection
Includes a 4mm stud for stable mounting and vibration resistance.
