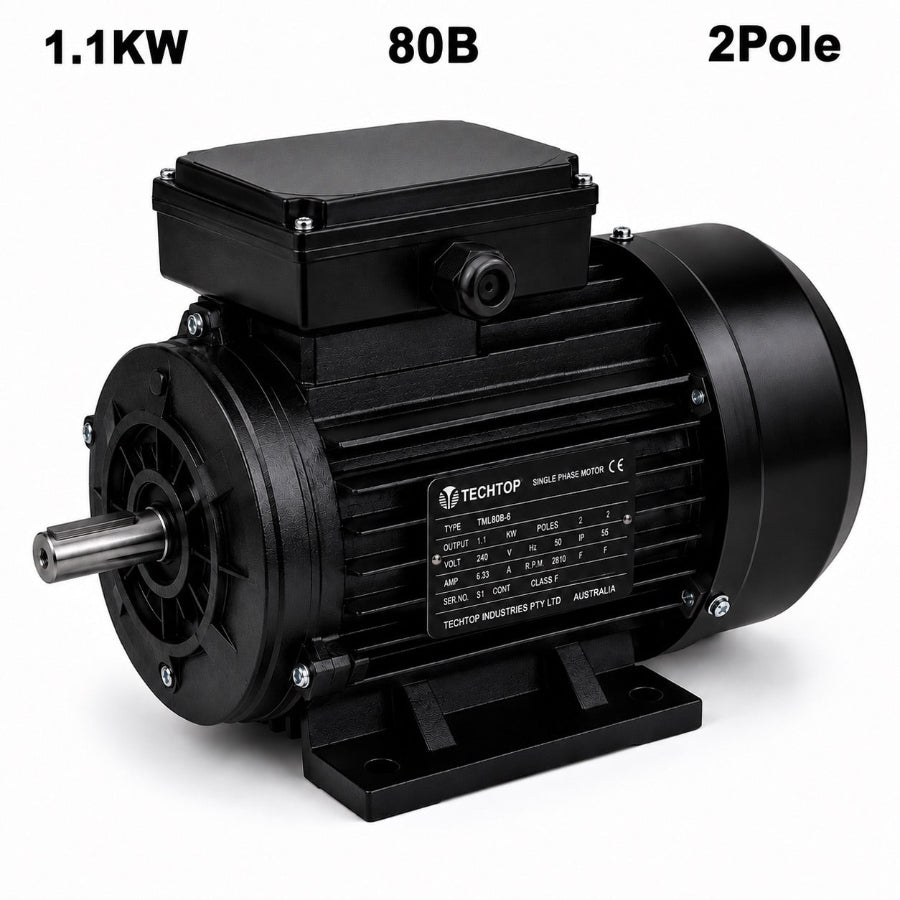

Techtop 1.1kW 2 Pole Single Phase Electric Motor 240V | TML 80B | 2810 RPM

What is the Techtop TML 80B 1.1kW 2 Pole motor commonly used for?

This motor is ideal for water pumps, air compressors, ventilation fans, industrial blowers, conveyor systems, agricultural machinery, workshop equipment and many other high-speed industrial applications.

What speed does this motor operate at?

The motor operates at approximately 2810 RPM under full load. Its 2 pole design makes it ideal for applications requiring high rotational speed.

Does this motor require a 240V power supply?

Yes. The motor operates on a standard 240V 50Hz single-phase power supply.

What type of starting system does this motor use?

The motor features a Capacitor Start / Capacitor Run (CSCR) design, providing excellent starting torque and smooth running performance.

Does this motor include thermal overload protection?

Yes. It includes an integrated manual reset thermal overload protector to help protect the motor from overheating.

What capacitors does this motor use?

This motor uses a 150µF 250V start capacitor and a 30µF 450V run capacitor. Paddle Wholesale stocks both replacement Motor Start Capacitors and Motor Run Capacitors.

Can this motor replace an existing single-phase motor?

Yes. As long as the power output, frame size, shaft dimensions, mounting configuration and operating speed match your existing motor, it is an excellent replacement option.

Can I use the 80A dimensional drawing for the TML 80B motor?

Yes. Techtop advises that the TML 80A dimensional drawing can be used as the installation reference for the TML 80B motor. The differences between the 80A and 80B frames are minor, with the mounting dimensions remaining compatible for installation purposes.

Do you offer Australia-wide shipping?

Yes. Paddle Wholesale offers fast Australia-wide shipping, competitive trade pricing and worldwide delivery on selected products.

• Brand: Techtop
• Model: TML 80B
• Power Output: 1.1kW
• Poles: 2
• Speed: 2810 RPM
• Voltage: 240V Single Phase
• Frequency: 50Hz
• Frame Size: 80B
• Mounting: B3 Foot Mount
• Motor Series: TML Capacitor Start / Capacitor Run
• Construction: Aluminium
• Cooling: Totally Enclosed Fan Cooled (TEFC)
• Protection Rating: IP55
• Insulation Class: F (Class B Rise)
• Duty Rating: S1 Continuous Duty
• Service Factor: 1.1
• Full Load Current: 6.2A
• Full Load Torque: 3.7Nm
• Efficiency: 76%
• Power Factor: 0.97
• Noise Level: 75 dB(A)
• Start Capacitor: 150µF 250V
• Run Capacitor: 30µF 450V
• Bearing Type: NSK 6204ZZ / 6204ZZ C3
• Direction of Rotation: Bi-directional
• Colour: RAL 9005 (Jet Black)
• Thermal Protection: Manual Reset Overload
• Motor Weight: 11kg
• Approvals: C-Tick, CE
• IEC Standards: IEC 60034 & IEC 60072

• Powerful 1.1kW Output – Ideal for demanding industrial, agricultural and commercial applications requiring dependable performance.
• High-Speed 2 Pole Design – Operates at approximately 2810 RPM for pumps, fans, compressors and machinery requiring high rotational speeds.
• Heavy-Duty 80B Aluminium Frame – Provides excellent durability, heat dissipation and long service life.
• Capacitor Start / Capacitor Run (CSCR) – Delivers high starting torque with smooth acceleration and efficient continuous operation.
• TEFC Construction – Totally Enclosed Fan Cooled design protects the motor from dust, dirt and moisture.
• IP55 Protection – Suitable for demanding workshop, industrial and agricultural environments.
• Premium NSK Bearings – Ensures smooth operation, reduced vibration and extended service life.
• Manual Reset Thermal Overload Protection – Helps prevent overheating and protects the motor from damage.
• S1 Continuous Duty Rated – Designed for reliable continuous operation.
• Built to IEC Standards – Manufactured to IEC 60034 and IEC 60072 international standards for quality and reliability.
