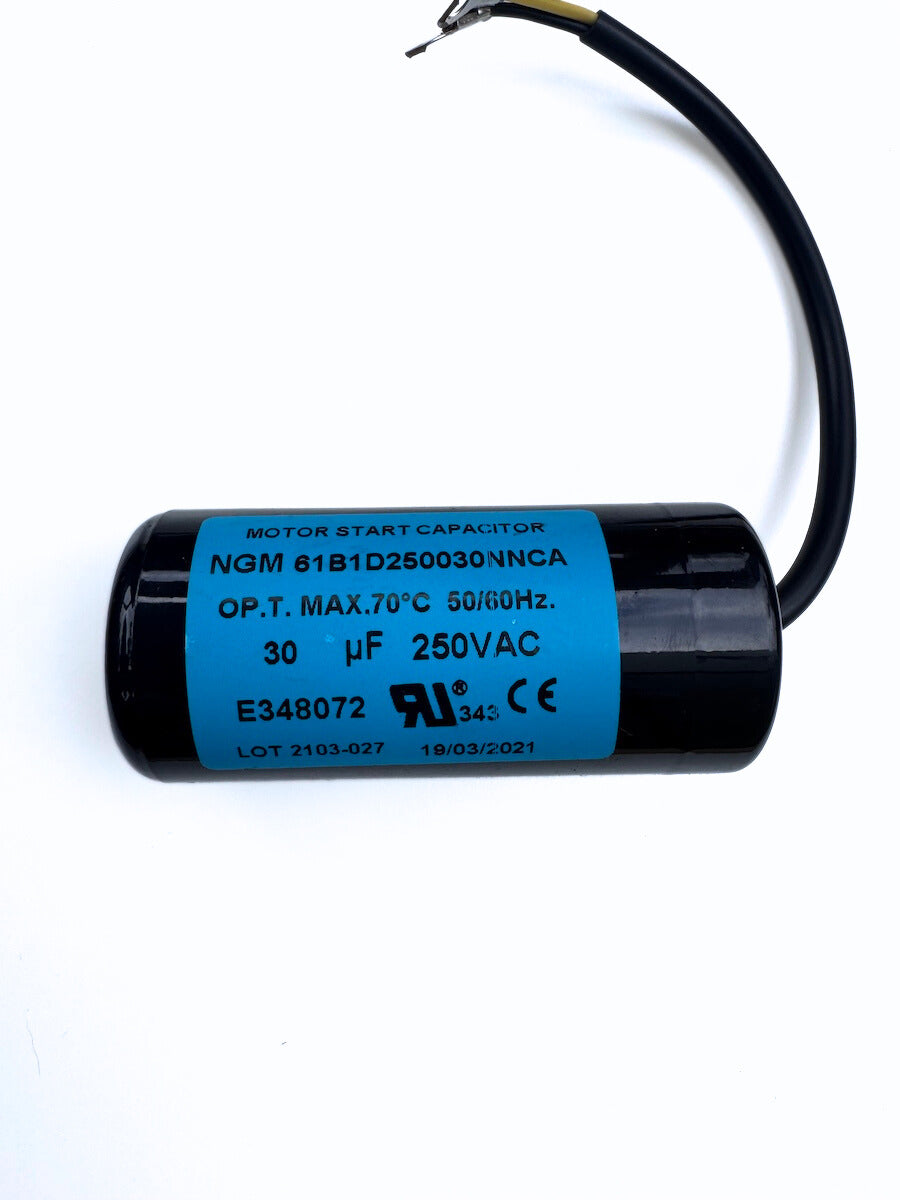

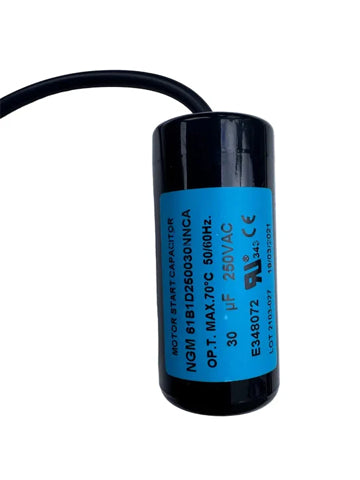

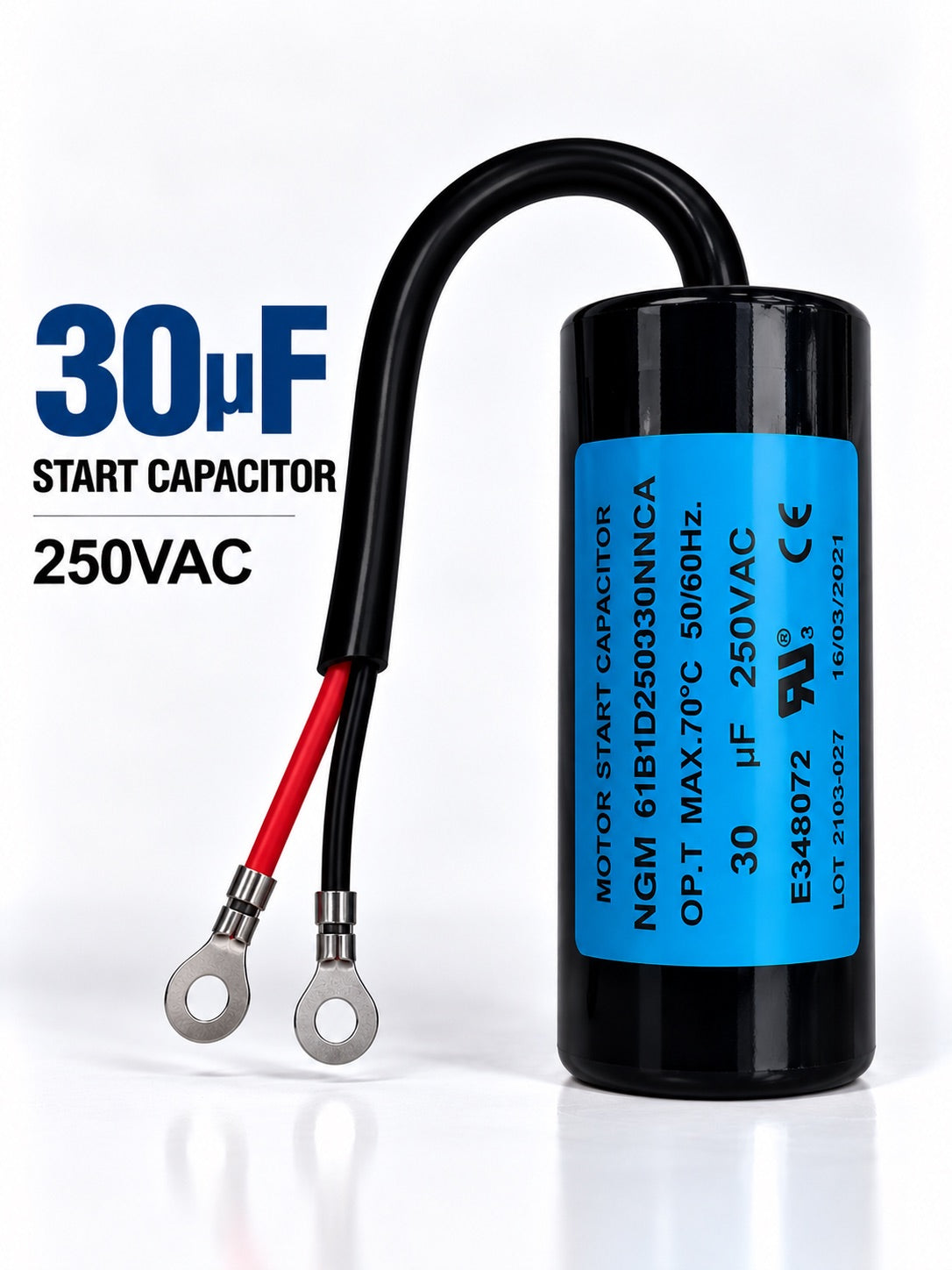

30µF (30uF) 250VAC Motor Start Capacitor | E348072 | NGM61B1D250030NNCA

What does a 30µF motor start capacitor do?
A start capacitor provides the initial energy boost required to start a single-phase AC motor. Without it, the motor may struggle to start or fail altogether.

What appliances or systems use a 30µF capacitor?
This capacitor is commonly used in pumps, HVAC systems, compressors, refrigerators, and other single-phase electric motors rated for 250V.

Can I replace my old capacitor with this model?
Yes. As long as the capacitance (30µF) and voltage rating (250V AC) match, this capacitor can replace most equivalent models.

What happens if I use the wrong capacitor size?
If the capacitance is too low, the motor may fail to start. If it’s too high, the motor could overheat or become damaged. Always replace with the same µF rating.

What’s the difference between a start capacitor and a run capacitor?
Start capacitors are used only during motor startup and disconnect once the motor is running, while run capacitors remain in the circuit continuously to improve motor efficiency.

- Capacitance: 30 uF

- Voltage Rating: 250VAC

- Tolerance: ±5%

- Temperature Range: Use up to 70 °C

- Construction: Durable plastic body

- Shape: Oval, ideal for standalone mounting

- Termination: Lugs for secure electrical connections

- Cable: Includes a 120mm cable for easy installation

- Item Code: E348072

- Series: NGM61B1D250030NNCA

Durable Construction
Crafted with a rugged ABS plastic housing, this start capacitor is built to endure harsh operating environments and extended usage cycles.

Reliable Motor Startup
Delivers a high initial torque burst essential for starting single-phase motors in HVAC units, compressors, and pumps—ensuring reliable performance every time.

Hassle-Free Installation
Features a lug-type terminal design and a 120mm lead length for quick, secure, and flexible installations across various electrical setups.

Compact, Standalone Mounting
The standalone form factor provides flexibility in placement and simplifies integration into different motor assemblies.

Consistent Performance
With a rated voltage of 250VAC, this capacitor maintains dependable power delivery across a wide range of industrial and residential motor applications.

Secure Stud Connection
Includes a 4mm mounting stud for stable attachment to your equipment, reducing the risk of disconnection from vibration or movement.
